21

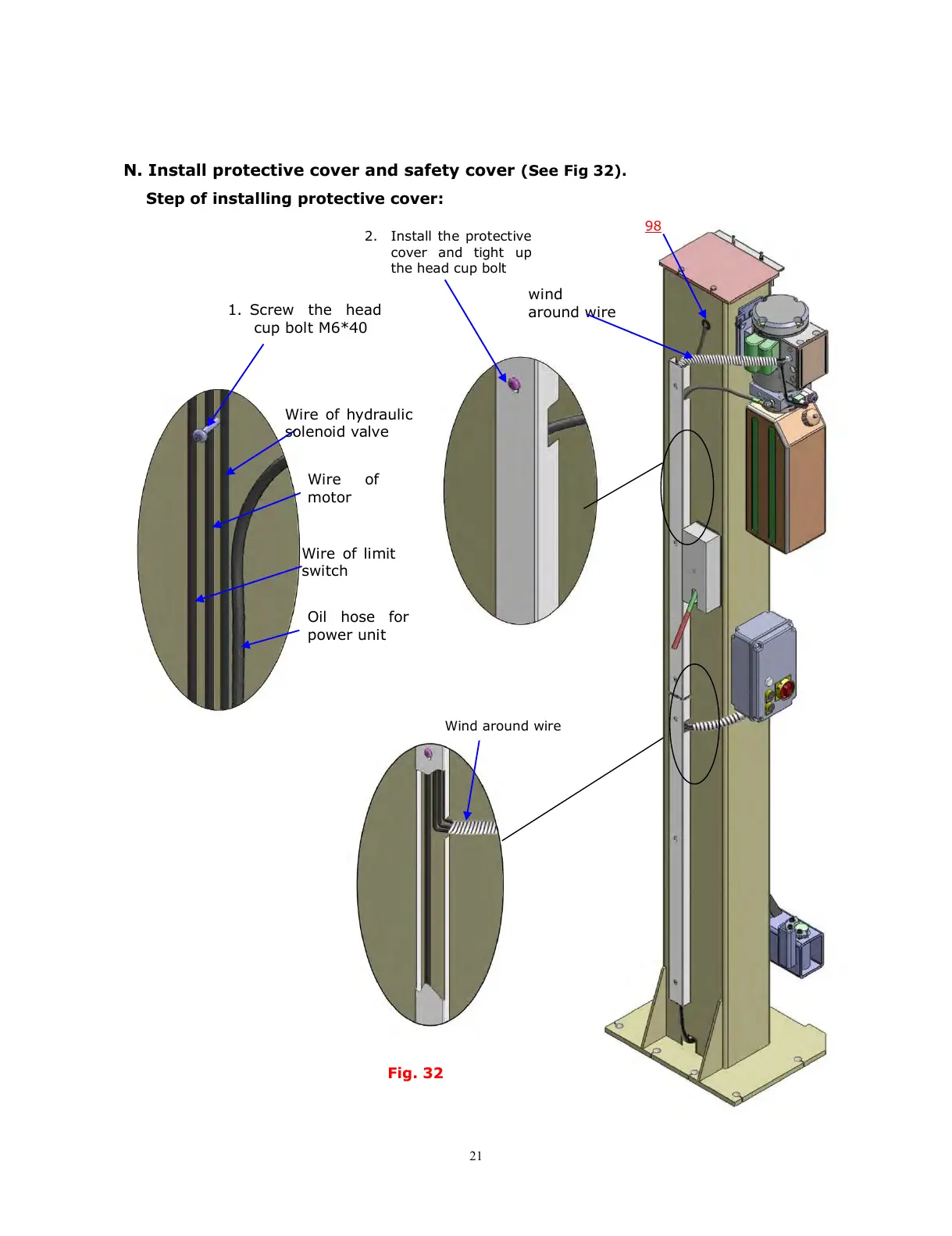

N. Install protective cover and safety cover (See Fig 32).
Step of installing protective cover:
Fig. 32
1. Screw the head
cup bolt M6*40
Wire of hydraulic
solenoid valve
Wire of
motor
Wire of limit
switch
Oil hose for
power unit
2. Install the protective
cover and tight up
the head cup bolt
Wind around wire
wind
around wire
98
