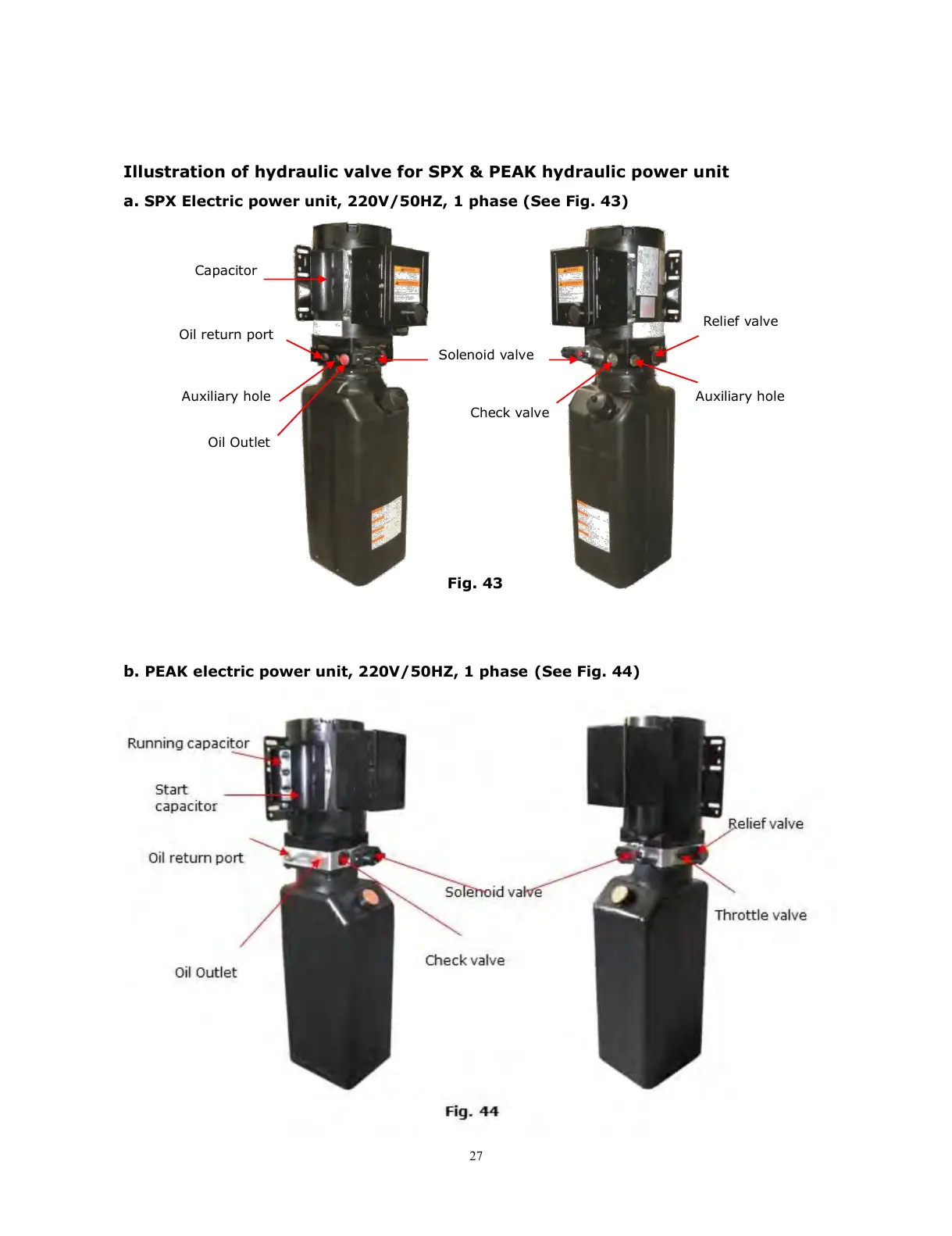

Illustration of hydraulic valve for SPX & PEAK hydraulic power unit
a. SPX Electric power unit, 220V/50HZ, 1 phase (See Fig. 43)
Fig. 43
b. PEAK electric power unit, 220V/50HZ, 1 phase (See Fig. 44)
Capacitor
Oil return port
Auxiliary hole
Oil Outlet
Solenoid valve
Check valve
Relief valve
Auxiliary hole
