AMGO A240 - Pre-Assembly Parts Check

5

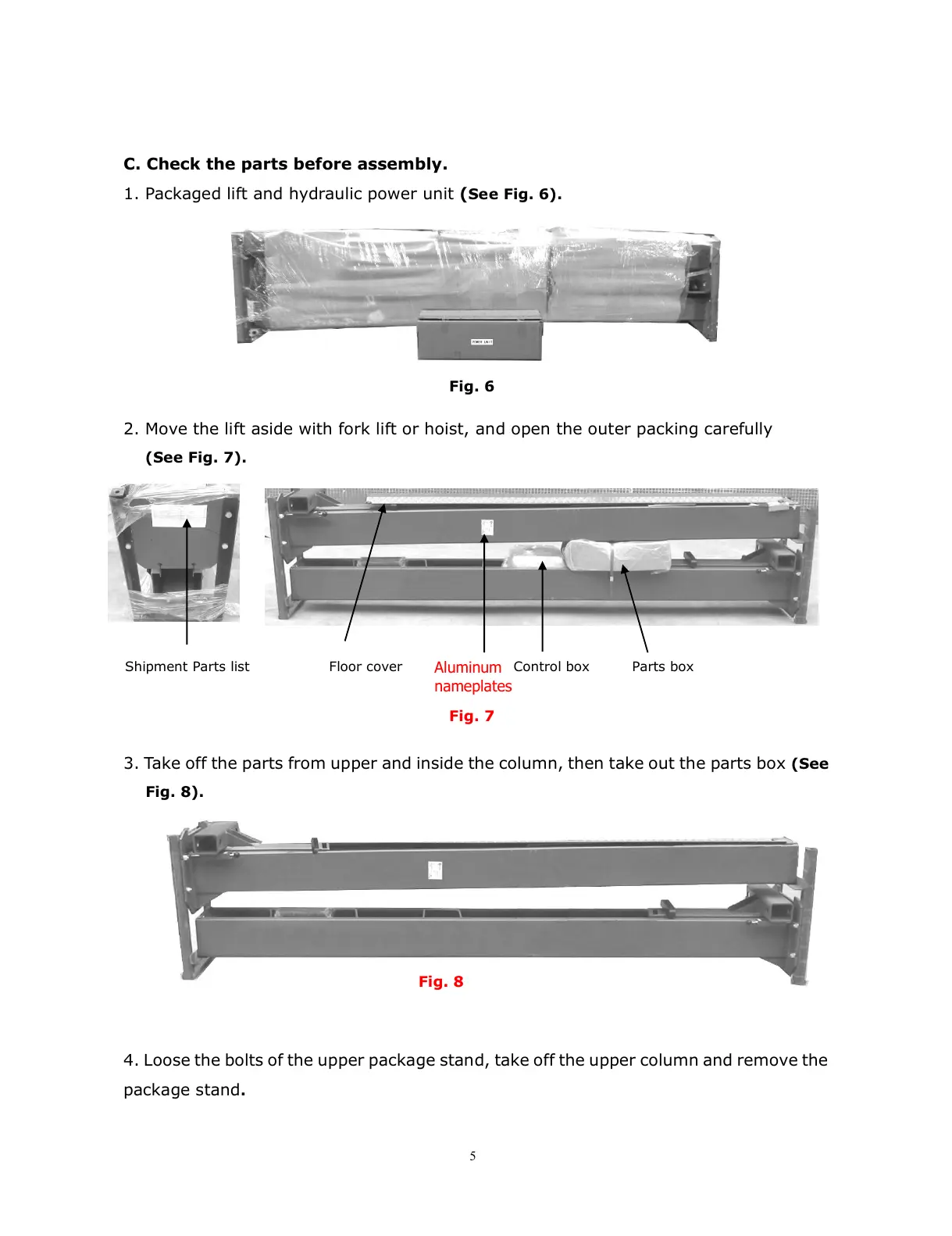

C. Check the parts before assembly.
1. Packaged lift and hydraulic power unit (See Fig. 6).
2. Move the lift aside with fork lift or hoist, and open the outer packing carefully
(See Fig. 7).
3. Take off the parts from upper and inside the column, then take out the parts box (See
Fig. 8).
4. Loose the bolts of the upper package stand, take off the upper column and remove the
package stand.
Fig. 8
Fig. 6
Fig. 7
Shipment Parts list
Floor cover
Parts box
Aluminum
nameplates
Control box
