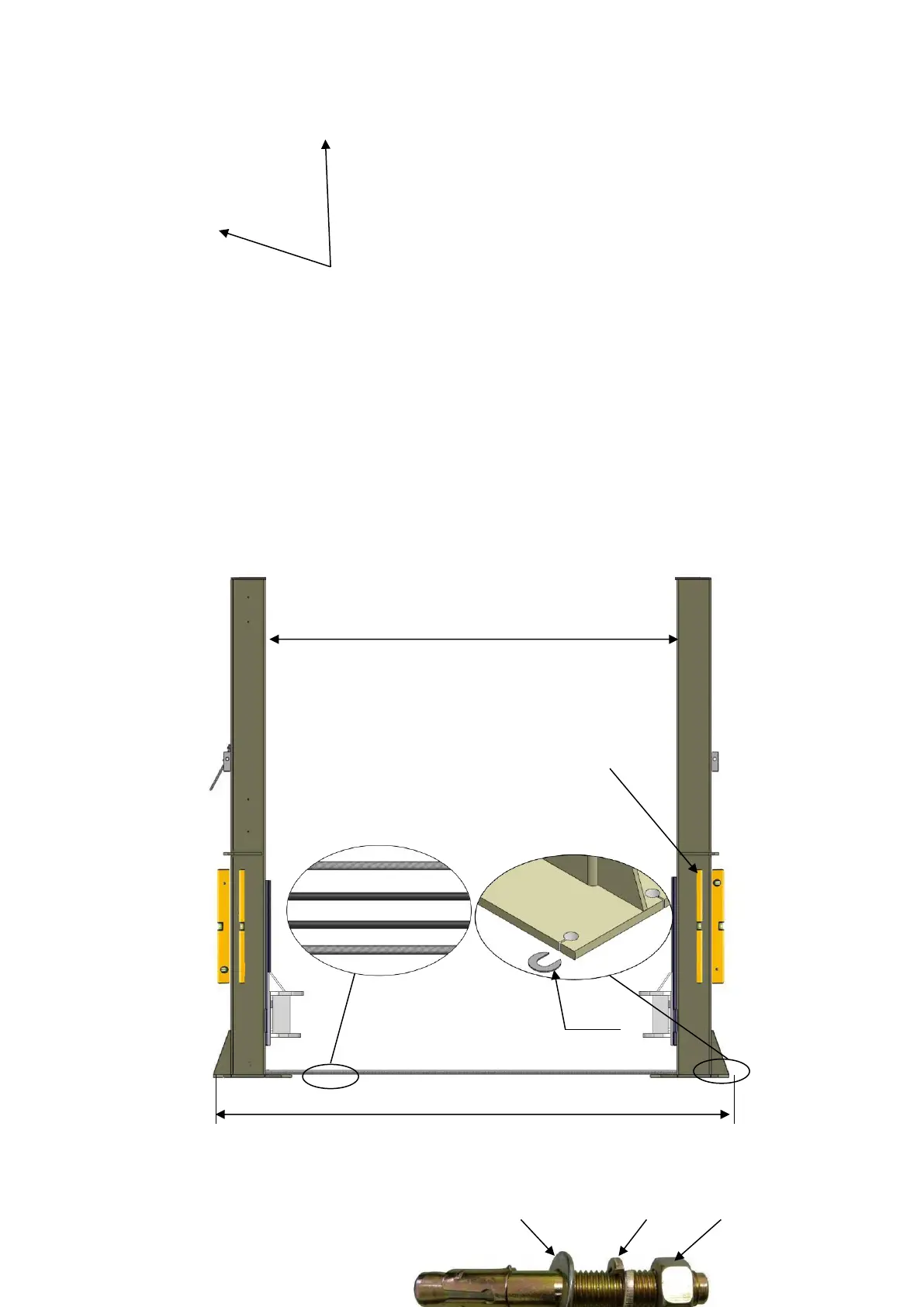

G. Position columns (See Fig. 17)

Check the columns plumbness with level bar, and adjusting with the shims if the

columns are not vertical.

H. Fix anchor bolts

Lock washer

Washer

Nut

Fig. 16

Push the carriages to the

bottom of the columns

2850mm

3534mm

Check the columns plumbness

with level bar

Cable and Oil hose should be

parallel.

72/44A

Fig. 17
