3. 380V Wire connection and circuit diagram

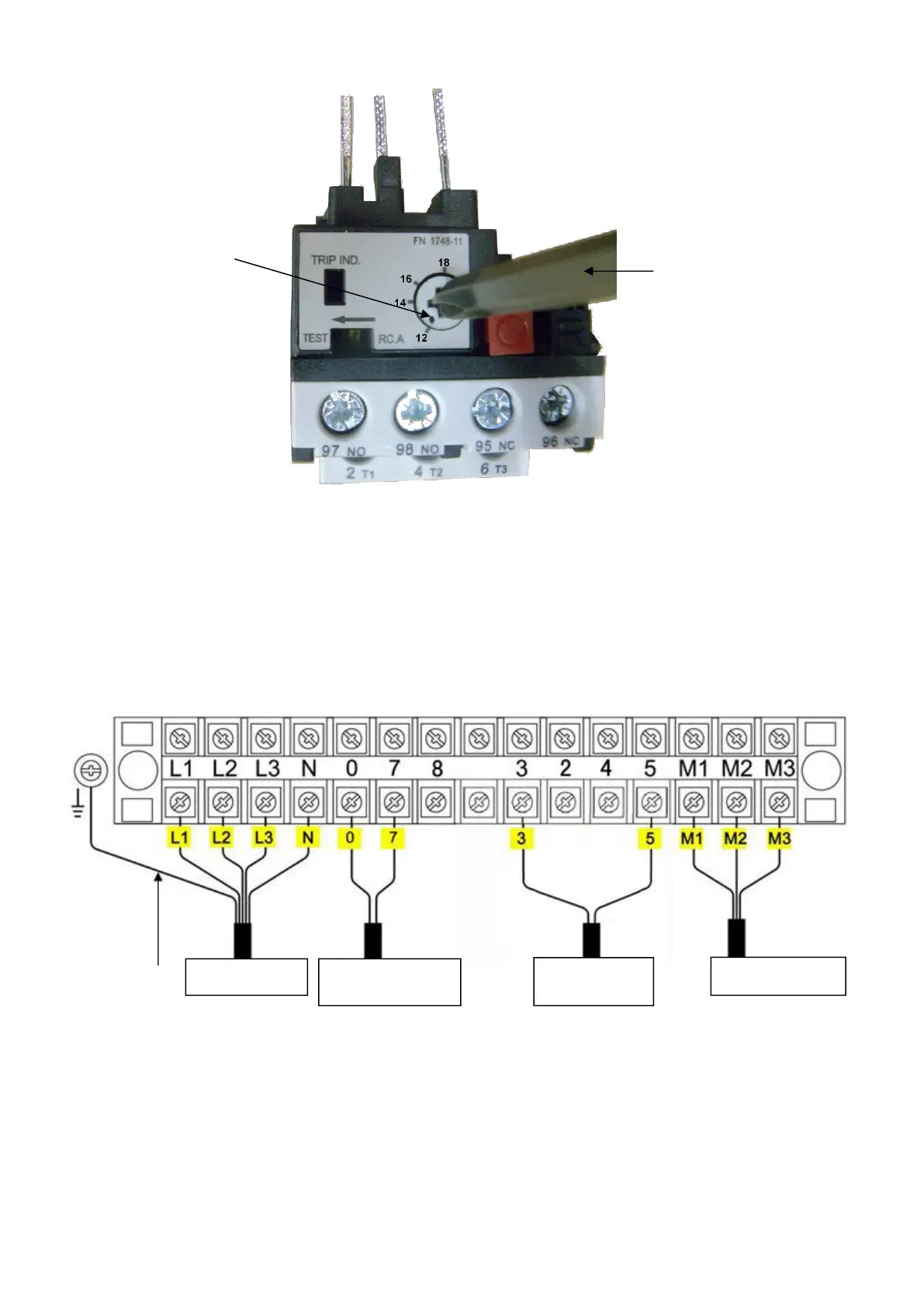

3.1 Wire connection diagram in the control box (See Fig. 26).
3.2 380V Wire connection diagram of hydraulic motor (See Fig. 27).
This point shows
the present rated
current value
Using cross screwdriver
to adjust rated current
value of thermal relay
Fig. 25
Power wire
Wire of hydraulic
solenoid valve
Wire of limit
switch
Wire of motor
Fig. 26
Earth
wire
