18

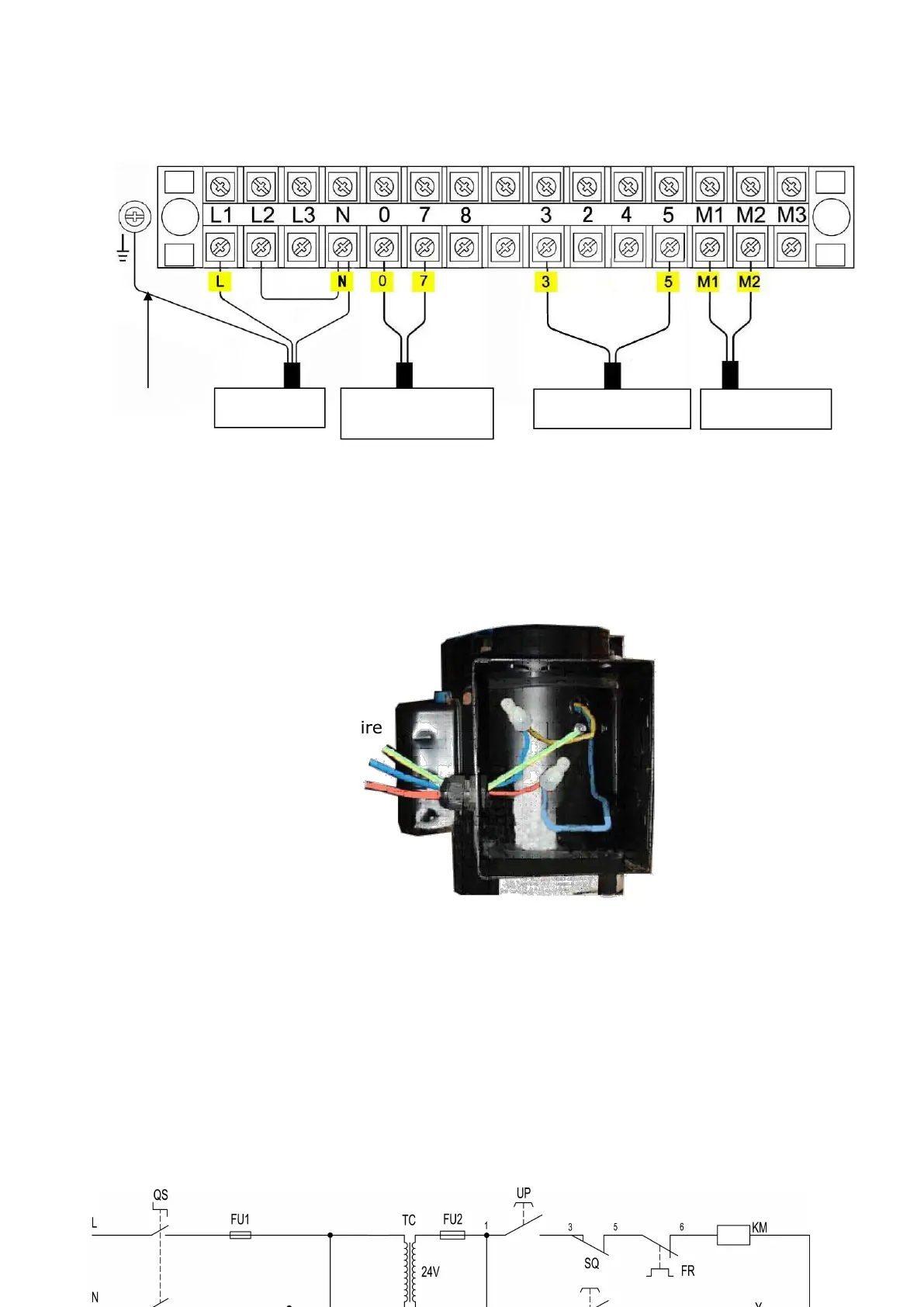

4.1 Wire Connection diagram in the control box (See Fig. 29).
4.2 220V Wire connection of hydraulic power unit (See Fig. 30).
Motor wire (M1、M2) separately connected to two wires in the motor
4.3 220V Circuit diagram (See Fig. 31).
Power wire
Wire of hydraulic
solenoid valve
Wire of limit switch
Wire of motor
Fig. 29
Earth wire
M2
M1
Fig. 30
Earth
wire
