P. Adjust the arm locks
1. After installing the arms (See Fig.34).
2. Lowing the carriages down to the lowest position, then use the
8
#
ratchet spanner to
loose the socket bolt (See Fig. 35).
3. Adjust the moon gear as arrow direction (See Fig. 36).
4. Adjust the moon gear and arm lock to make it to be meshed, then tighten bolts of
arm lock (See Fig. 37).
Fig. 34
Use the 17
#
ratchet spanner
to loose the nut, then use
the
8
#
ratchet spanner to
loose the socket bolt
Adjust the moon gear as
arrow direction to let
them mesh

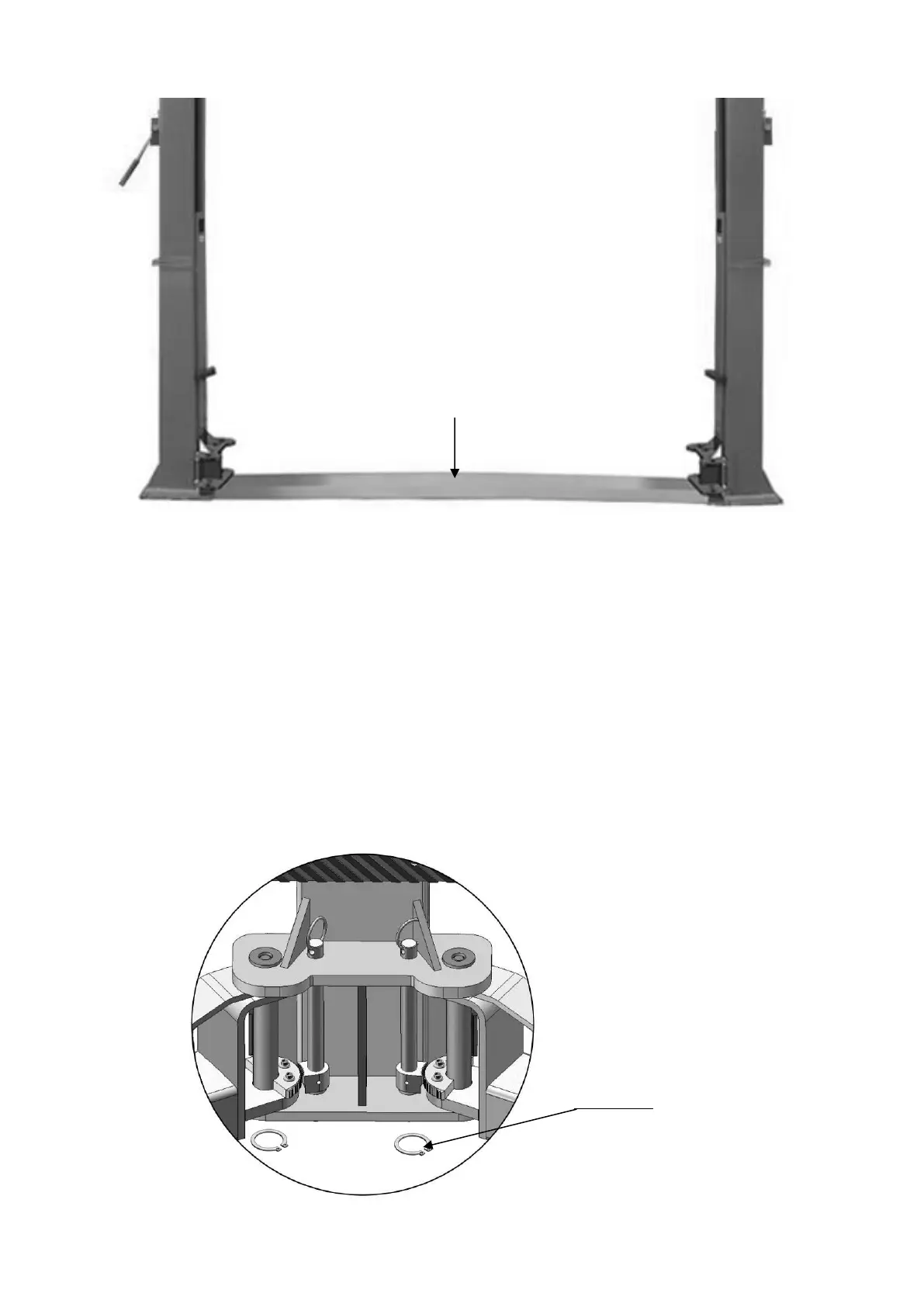

Snap ring
Fig. 33
floor cover
