MEGATOUCH ION AURORA OWNER’S MANUAL PM0636-14

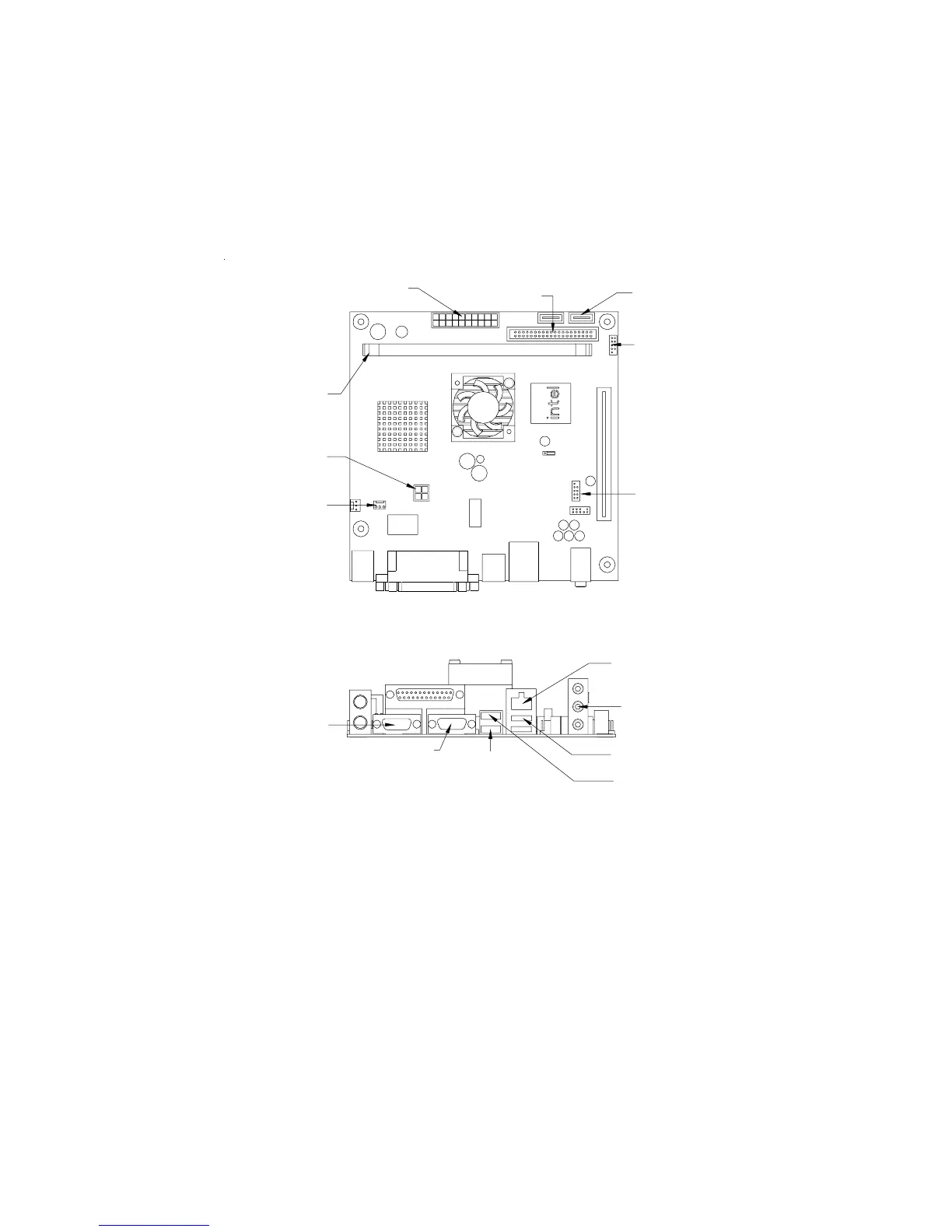

FIGURE 36 - AURORA WIDESCREEN
INTEL LITTLE FALLS MOTHERBOARD DRAWING
MOTHERBOARD
POWER
HARD DRIVE
CONNECTION
(SATA 0)
ETHERNET
AUDIO OUT
VGA VIDEO
I/O BOARD
CREDIT CARD
READER
TOUCSCREEN
CONTROLLER
WIRELESS DEVICE
TOP VIEW OF MOTHERBOARD
CONNECTOR SIDE VIEW OF MOTHERBOARD
CENTRONICS
CONNECTION
WATCHDOG
TIMER/
POWER ON
HARNESS
POWER
SUPPLY
MOTHERBOARD
FAN
DIMM
MEMORY
SERIAL PORT
(OPTIONAL
MODEM)
Connection Diagrams
