Specifications

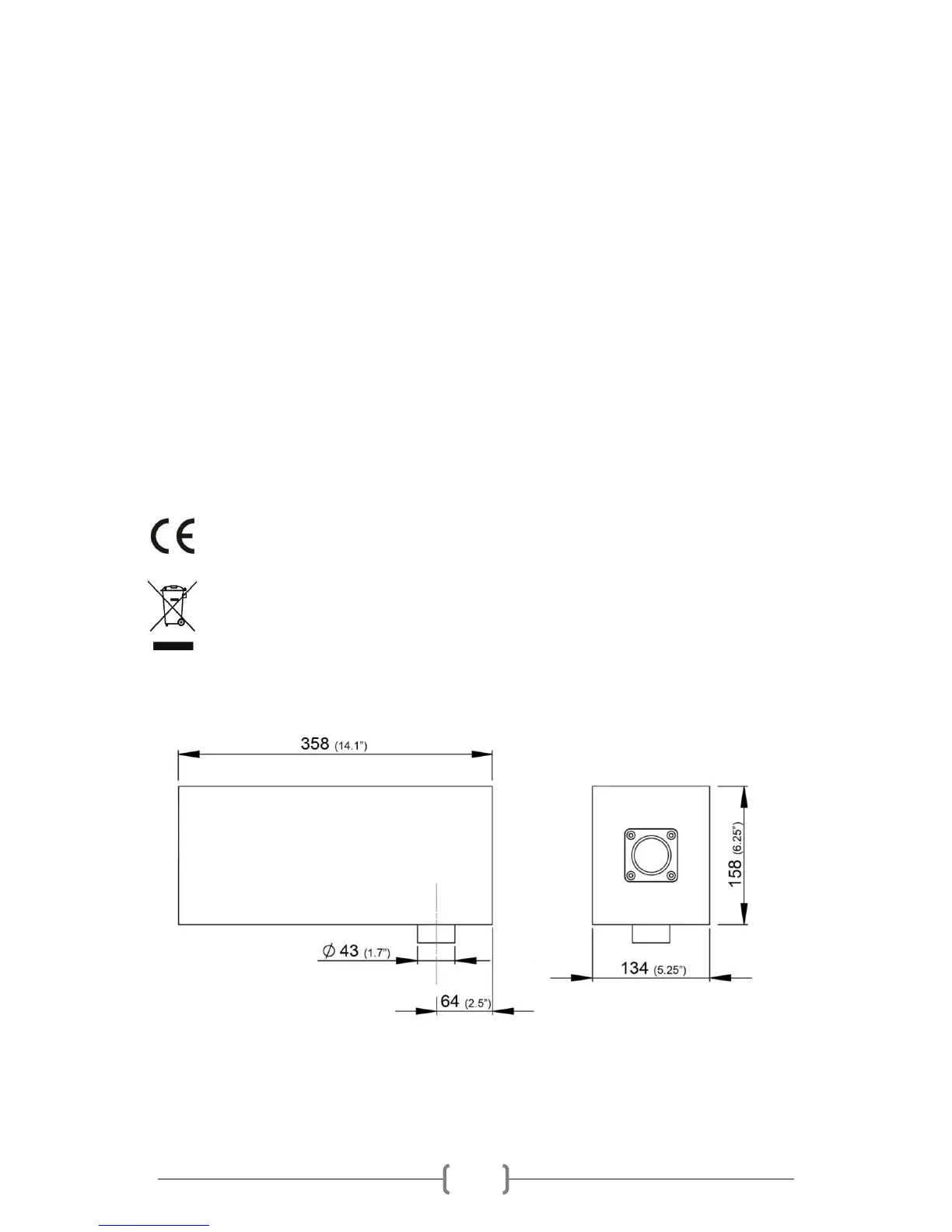

Dimensions: 358 x 159 x 134mm (14.2” x 5.3” x 6.3”)
Weight: 3.03Kg (6.67 lbs)
Design: Ported, acoustic bandpass with built in
protection circuit
Power handling: 40W continuous
Nominal Impedance: 8 Ohms (4 Ohm when used in passive
configurations with AIWX speakers)
Frequency Response: 60Hz - 150Hz (+/-6dB), 24dB/octave slope
Sensitivity: 88dB @ 1m/2.83V RMS
Maximum SPL/1m: 103dB
Port location: Front or end convertible, length adjustable
Port diameter I.D/O.D: 39mm (1.55”)/43mm ( 1.7”)
Connection: 3-way binding post (accepts 4mm plugs)
