Main unit installation
Suggest to install the main unit in a secret place under the panel, after fixing the main unit in the suitabable
place, please find out the necessary connecting wires (ACC, direction lights, power, brake etc.). Wires are
connected correctly according to wirec onnection diagram and packed well by rubber fabric. Then connect
these wires to the main unit, shock sensor and LED indicator. After test the function, please putting back all the
parts.
Shock sensor installation and adjustment
Suggest to fix the shock sensor near to the door or beside the panel after installing the main unit. So that it is
easy to detect any intrusion actions.
Trouble shoting
The remote transmitter doesn't work
– check if remote battery is out of power.
– check if the battery pin is loose contact.
– check if the remote transritter is wet.
– check if the remote transmitter is mechanical damaged.
The siren doesn't work
– check if the siren is connected well with the main unit.
– check if the siren is connected with ground wire.
The siren keeps chirping after the main unit is installed, the transmitter can't cancel this chirping
– check if the wires are connected correctly.
– check if the fuse of main unit is burned down.
– check if the code between the main unit and remote transmitter is consistent.
The central lock doesn't work.
– check if the motors work well.
– check if the connecting wires and fuse have problem.
The siren chirp at once after setting arm.
– check if the shock sensor has problem.
– check if the trigger wires are correctly connected.
4
Car alarm AMiO CA14 - User manual

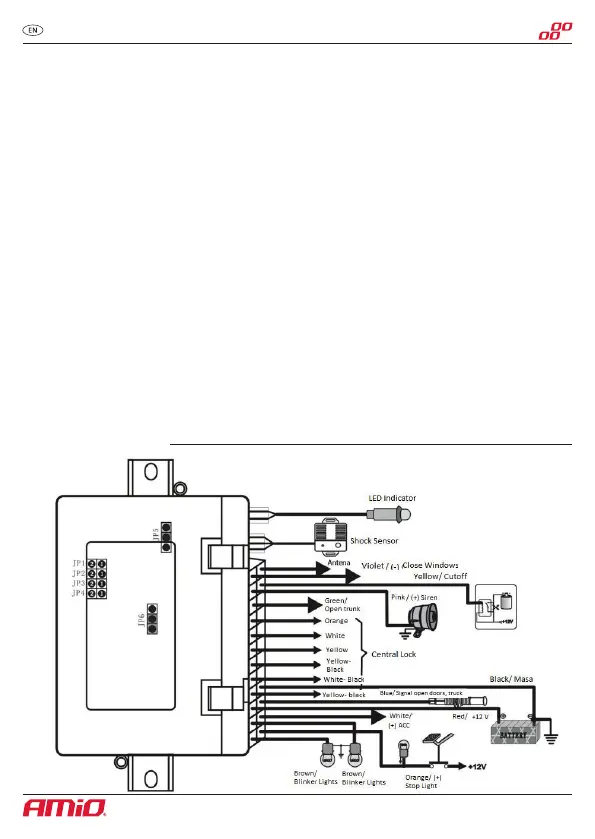

06. Main unit wiring diagram
