206 ASC 70 / 90 / 100 / 110 / 130 / 150 / 200 / 250
ASC361
17
11
7
11
17
7
ASC362
3
4
1
ASC108
ASC107

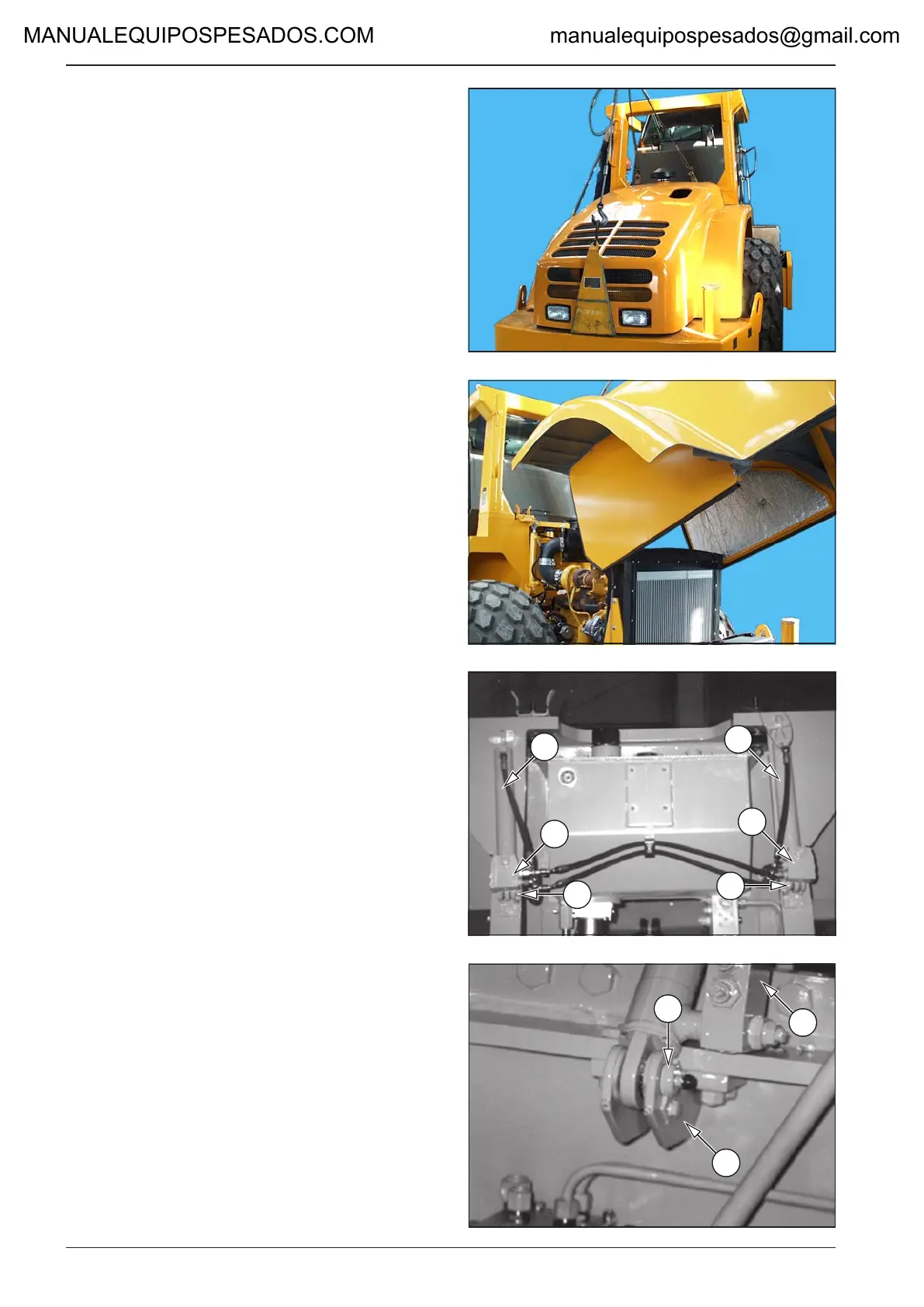

18. Removal of hydraulic motors
Set hood aside using xture no. 3.
Place a receptacle underneath the disassembled hydraulic mo-
tor 11. Disconnect hoses, plug. Remove shims, press out pins
4 from piston ends. Using lifting hydraulic motor remove from
equipment, remove hydraulic lock 17.
Removal of cabin hydraulic motor from equip-
ment
Lift cabin, support using xture No. 4, place receptacle under
the hydraulic motor, press piston rod in the cylinder, remove hy-
draulic motor with bracket 1 from the equipment, press out pin
4, remove hydraulic lock 3.
