AMP RESEARCH POWER STEP – GMC / CHEVROLET

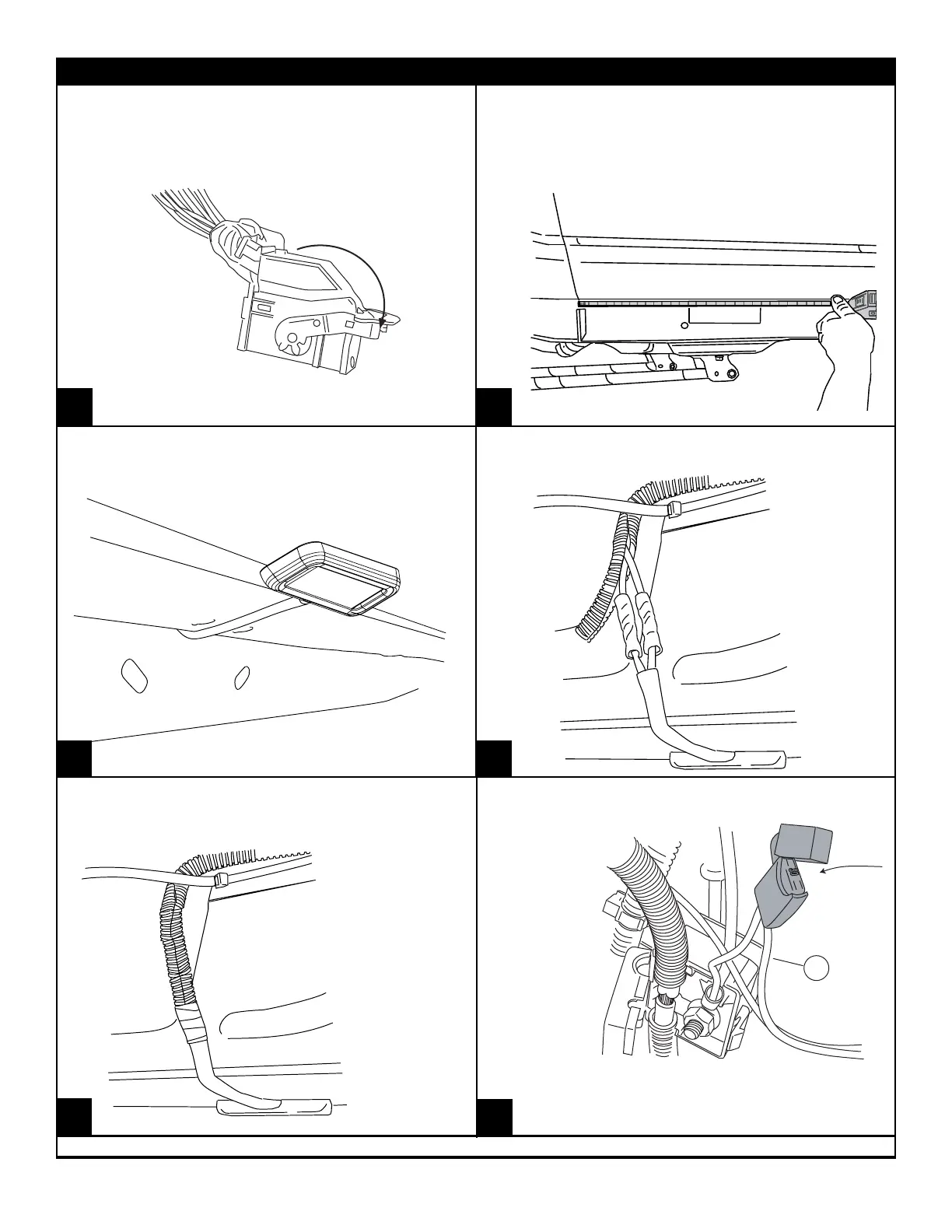

On each side of the vehicle measure from the front
edge of door line on the pinch weld to the specifi ed
lengths below. Measure at 22” for front LED Light
and 65” for rear LED Light.
Affi x lamp to rocker panel surface. Make sure the
lamp is affi xed to a clean, fl at surface. There is a
step down midway across the surface. Affi x lamp
just outside of step down.
Using supplied butt connectors, connect the lamp
wires. Red to Red, Black to Black.
Close and wrap with conduit and electrical tape.
Secure all loose wires with cable ties, with lamp wires
pulled upward to avoid any wire snagging.
Replace power fuse
22
23
Make sure that plug lever is fully opened before
reinstalling. Failure to do this will adversely
affect the operation of the powerstep and
window controls.
Reinstall door panel.
