Ampeg Classic User Manual

8
Classic Analog Bass Preamp

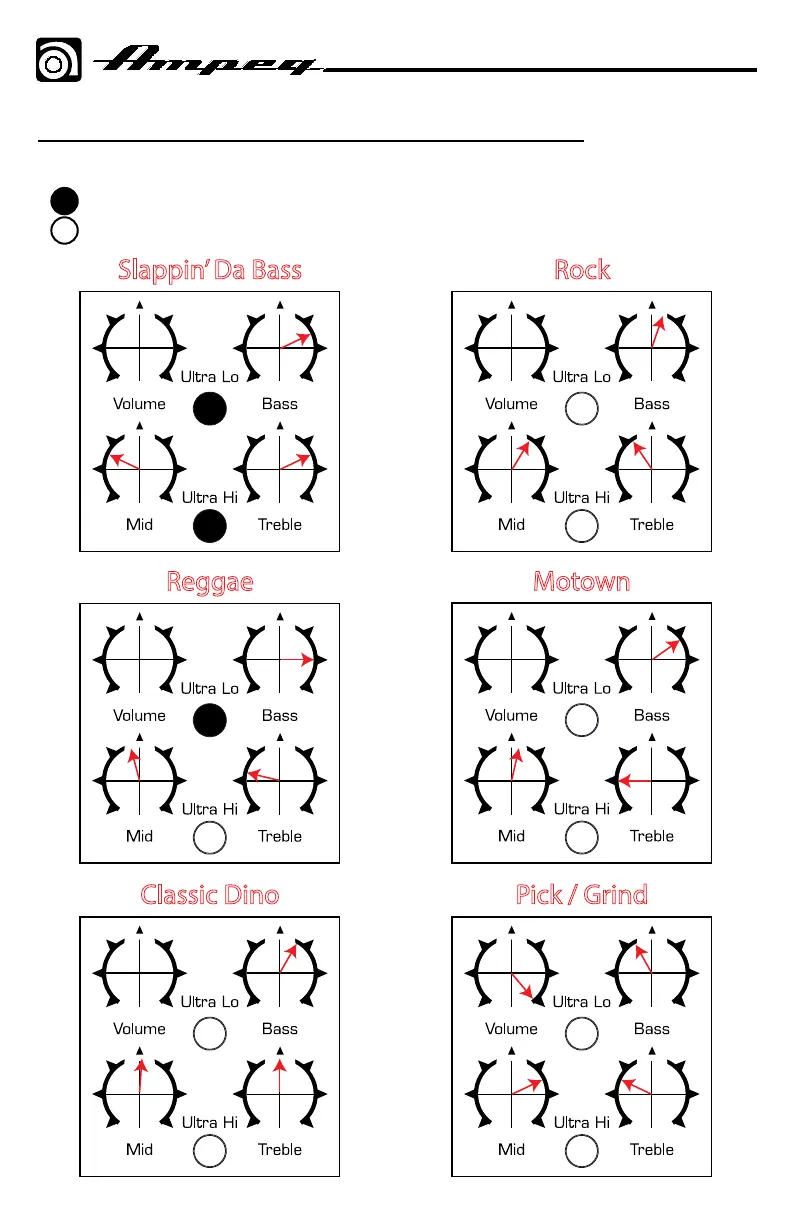

Classic Analog Bass Preamp Suggested Settings
* Volume to taste
= Switch engaged (down)
= Switch disengaged (up)

Ampeg Classic Specifications

Audio Specifications

signal to noise ratio	75 dB
maximum gain	+18 dB
bass tone control	+7/–20 dB @ 40 Hz
mid tone control	+5/–11 dB @ 500 Hz
treble tone control	+10/–10 dB @ 4 kHz
ultra hi	+7 dB @ 8 kHz
ultra lo	+2 dB @ 40 Hz / –10 dB @ 500 Hz

Impedance

input impedance	1 M @ Normal, 83 k w/–15 dB Pad
output impedance	120

Power Requirements

internal power	9V Battery
external power	9VDC, ≥20 mA, center negative

Weight and Dimensions

size (H x W x D)	2.2 in x 2.6 in x 4.5 in
size (H x W x D) metric	56 mm x 66 mm x 114 mm
weight	0.6 lb / 0.3 kg
