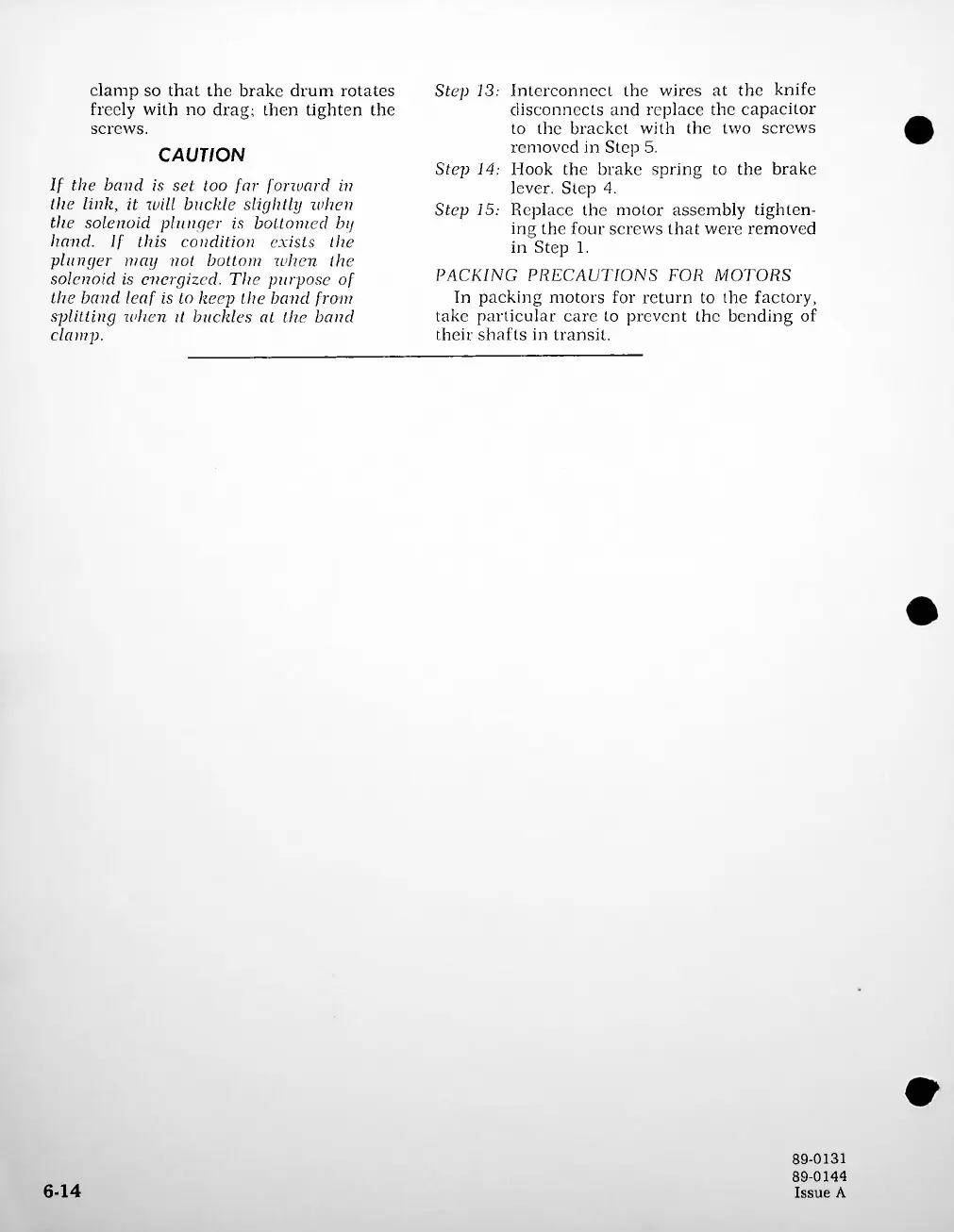

Step 13: Interconnect the wires at the knife
disconnects and replace the capacitor
to the bracket with the two screws
removed in Step 5.
Step 14: Hook the brake spring to the brake
lever. Step 4.
Step 15: Replace the motor assembly tighten 
ing the four screws that were removed
in Step 1.
PACKING PRECAUTIONS FOR MOTORS
In packing motors for return to the factory,
take particular care to prevent the bending of
their shafts in transit.
clamp so that the brake drum rotates
freely with no drag; then tighten the
screws.
CAUTION
If the band is set too far forward in
the link, it will buckle slightly when
the solenoid plunger is bottomed by
hand. If this condition exists the
plunger may not bottom when the
solenoid is energized. The purpose of
the band leaf is to keep the band from
splitting when it buckles at the band
clamp.
