SOLEADO – INSTALLATION MANUAL
INSTALLATION INSTRUCTIONS

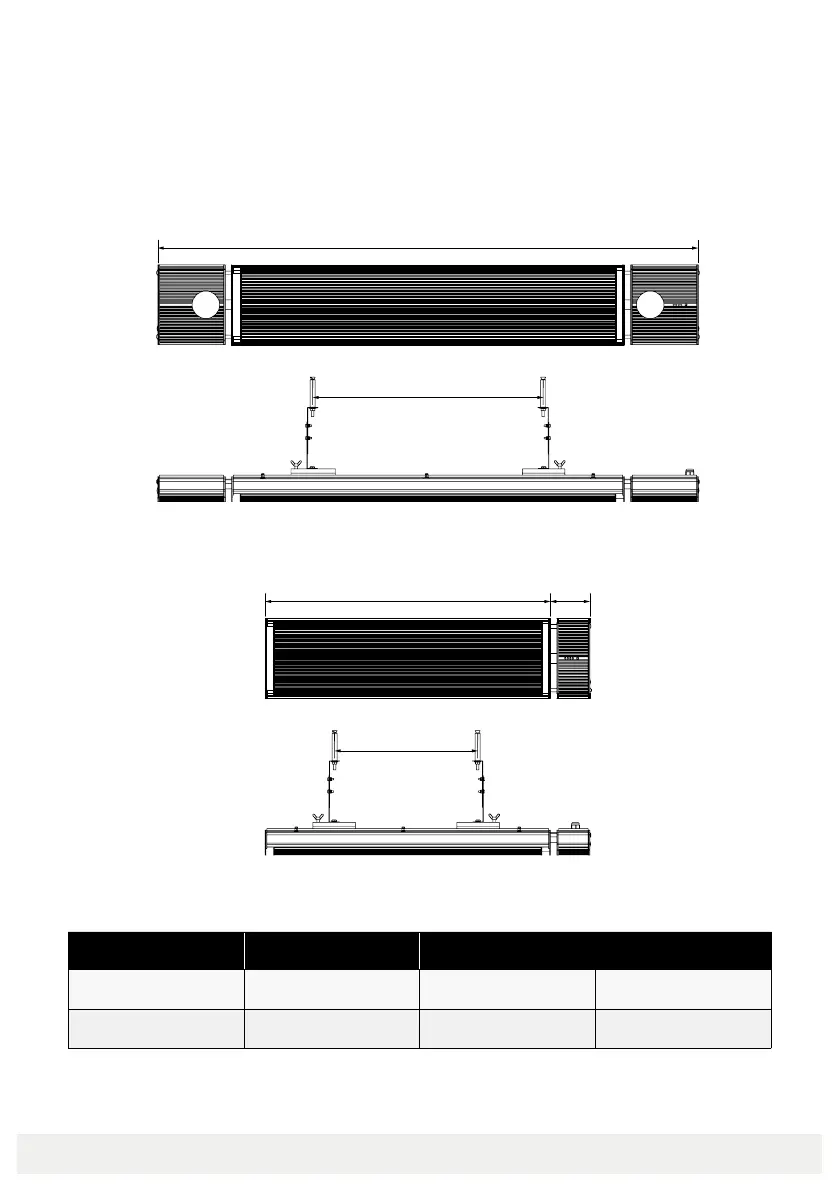

MODEL NO. DIMENSION A DIMENSION B DIMENSION C
108100 1875mm 1200mm –
108101 1500mm 1200mm 95mm
A
B
(min)
LENGTH
SPAN OF EXPANSION SCREWS
AC
LENGTH
B
(min)
SPAN OF EXPANSION SCREWS
108100
108101
