Amprobe LAN-1 - Page 4

3

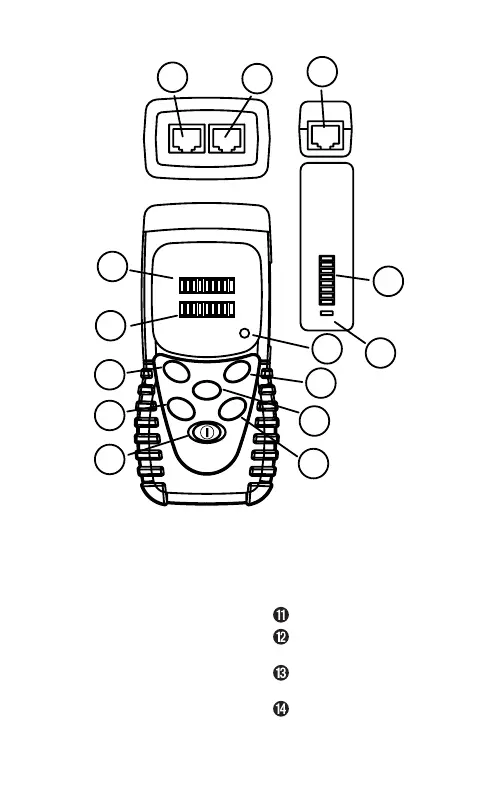

➊
RJ45 jack for sourcing end
(OUT).
➋
RJ45 jack for receiving end (IN).
➌
LED indicators for sourcing end
(OUT) Green.
➍
LED indicators for receiving end
(IN). Red.
➎
AUTO scan button.
➏
TEST button for MANUal test.
➐
POWER ON/OFF button.
➑
BATTery TEST button.
➒
HOLD button.
➓
MANUal scan button.

Low BATTery indicator.

Remote Terminator LED
indicator for ground wire

Remote Terminator LED
indicators for data lines

Remote Terminator RJ45 jack
HOLD
MAN
AUTO
TEST
BATT
1
2
3
4
5
6
7
9
8
REMOTE
TERMINATOR
IN OUT
1 2 3 4 5 6 7 8 G
OUT
IN
1
2
3
4
5
6
7
8
GRD
10
12
14
13
11
