Input Power Requirements
Line Voltage ............................. 120 Vac, 60 Hz
(Special voltages available on request)
Current .................................................... 0.25 A
Line Leakage......................................... < 50 µA
UL Listed................. Medical Equipment 65T1
Electrical Stimulator

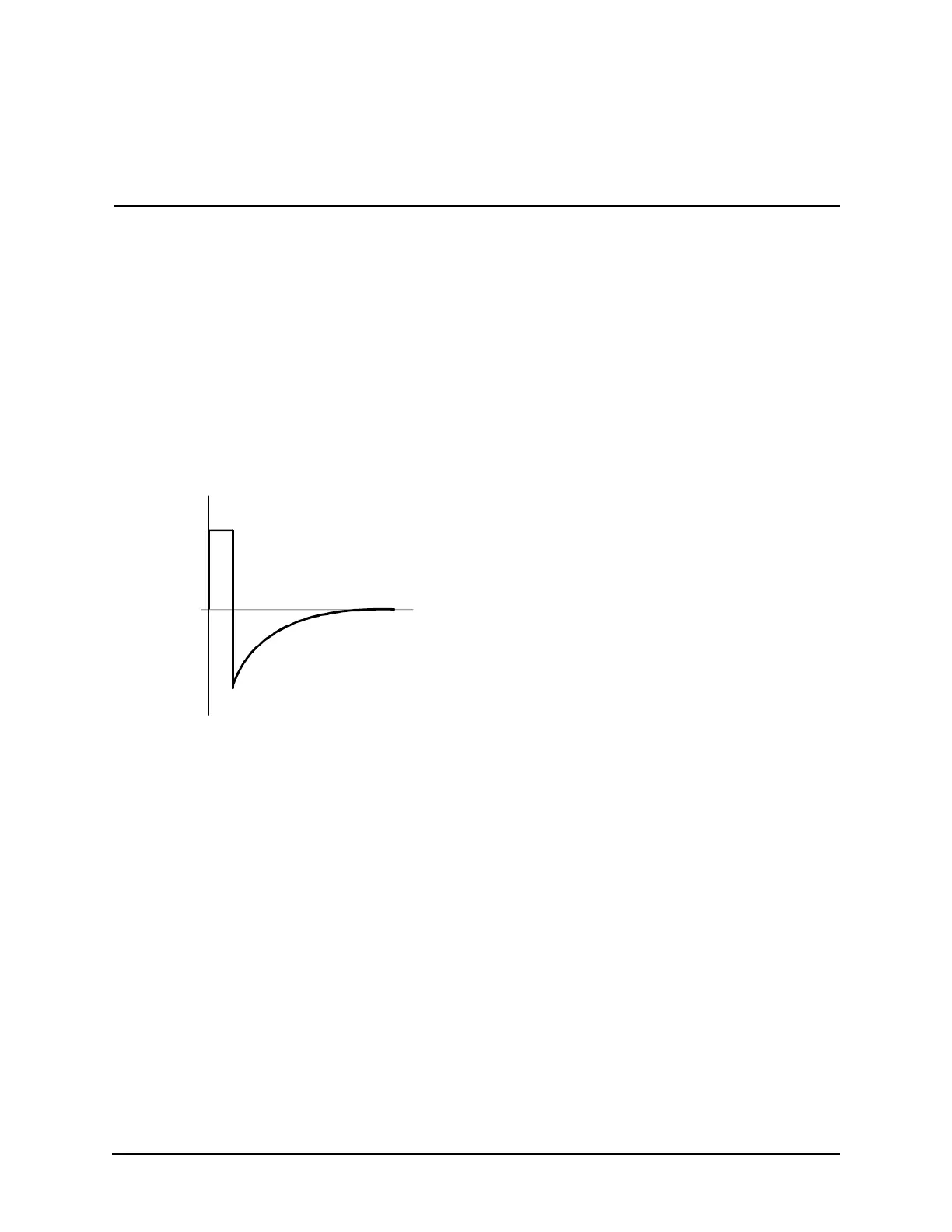

Waveform................ asymmetrical alternating
current (no load)
Output Voltage ...... 110 V peak into 1K ohm load
28 V peak into 100 ohm load
Output Intensity ...................................... 56 µC
maximum charge per pulse
into 100 ohm load
Pulse Width ............................................. 200 µs
at 50% V maximum
Frequency
Pulsation Mode ............................... 1 to 80 pps
Tetanize Mode ........................................ 80 pps
Surge Mode............................................. 80 pps
Surge Duration (seconds) ................... variable
from 3.75 on/off to 0.375 on/off
Instrument
Overall Dimensions ................. 7¼" W x 7½" D
x 4¾" H
Weight......................................................... 3 Lbs
Shipping Weight ....................................... 7 Lbs
Cleaning Instructions
1. Disconnect the power supply.
2. Use mild soap with a lightly moistened
cloth.
3. Air dry before using.
Specifications
+V
0
-V
t
