AMSTRAD TS80 - Page 13

ING

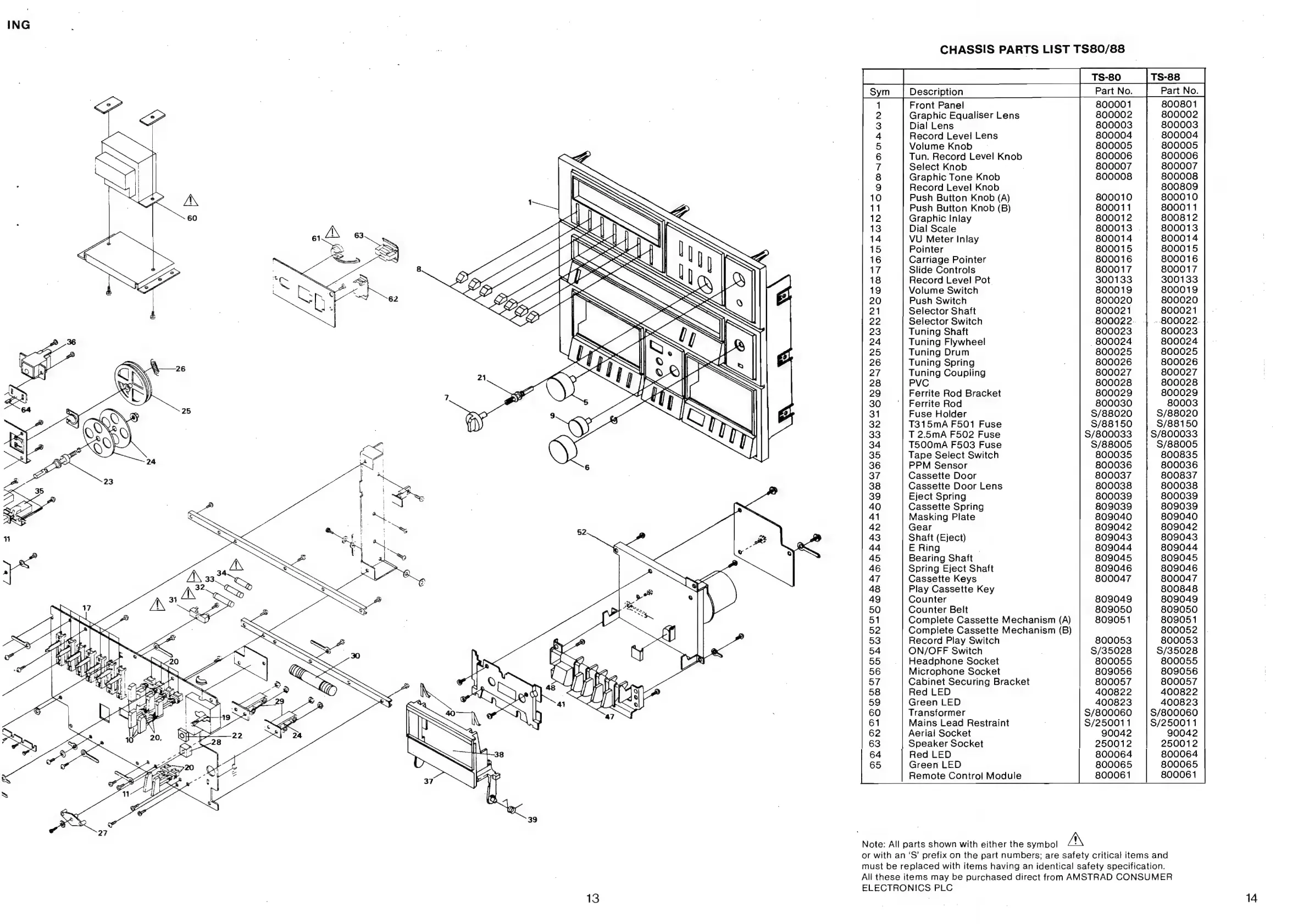

CHASSIS PARTS LIST TS80/88
po 8-80
Part No.
1 Front Panel 800001 800801
2 Graphic Equaliser Lens 800002 800002
3 Dial Lens 800003 800003
4 Record Level Lens 800004 ~ 800004
5 Volume Knob 800005 800005
6 Tun. Record Level Knob 800006 800006
7 Select Knob 800007 800007
| 8 Graphic Tone Knob 800008 800008
9 Record Level Knob 800809
10 Push Button Knob (A) 800010 800010
11 Push Button Knob (B) 800011 800011
12 Graphic Inlay 800012 800812
13 Dial Scale 800013 . 800013
14 VU Meter Inlay 800014 800014
15 Pointer 800015 800015
16 Carriage Pointer 800016 800016
17 Slide Controls 800017 800017
18 Record Level Pot 300133 300133
19 Volume Switch 800019 800019
20 Push Switch 800020 800020
21 Selector Shaft : 800021 800021 | -
22 Selector Switch 800022. | -.800022. |.
23 Tuning Shaft 800023 800023
24 Tuning Flywheel 800024 800024
25 Tuning Drum 800025 800025
26 Tuning Spring 800026 800026
27 Tuning Coupling 800027 800027
28 PVC 800028 800028
29 Ferrite Rod Bracket 800029 800029
30 ~='|:- Ferrite Rod 800030 80003
31 Fuse Holder $/88020 $/88020
32 T315mA F501 Fuse $/88150 $/88150
33 T 2.5mA F502 Fuse $/800033 $/800033
34 T500mA F503 Fuse $/88005 $/88005
35 Tape Select Switch 800035 800835
36 PPM Sensor 800036 | 800036
37 Cassette Door 800037 800837
38 Cassette Door Lens 800038 800038
39 Eject Spring 800039 800039
40 Cassette Spring 809039 809039
41 Masking Plate 809040 809040
42 Gear 809042 809042
43 Shaft (Eject) 809043 809043
44 E Ring . 809044 809044
45 Bearing Shaft 809045 809045
46 Spring Eject Shaft 809046 809046
47 Cassette Keys 800047 800047
48 Play Cassette Key 800848
49 Counter 809049 809049
50 Counter Belt 809050 809050
51 Complete Cassette Mechanism (A) 809051 — 809051
52 Complete Cassette Mechanism (B) 800052
53 Record Play Switch 800053 800053
54 ON/OFF Switch $/35028 $/35028
55 . | Headphone Socket 800055 800055
56 Microphone Socket 809056 809056
57 Cabinet Securing Bracket | 800057 800057
58 Red LED 400822 400822
59 Green LED 400823 400823
60 Transformer S/800060 $/800060
61 Mains Lead Restraint $/250011 $/25001 1
62 Aerial Socket 90042 90042
63 Speaker Socket 250012 250012
64 Red LED 800064 800064
65 Green LED 800065 800065
Remote Control Module 800061 800061
Note: All parts shown with either the symbol AN
or with an ‘S’ prefix on the part numbers; are safety critical items and
must be replaced with items having an identical safety specification.
All these items may be purchased direct from AMSTRAD CONSUMER
ELECTRONICS PLC
13
