AMSTRAD TS80 - Safety Test

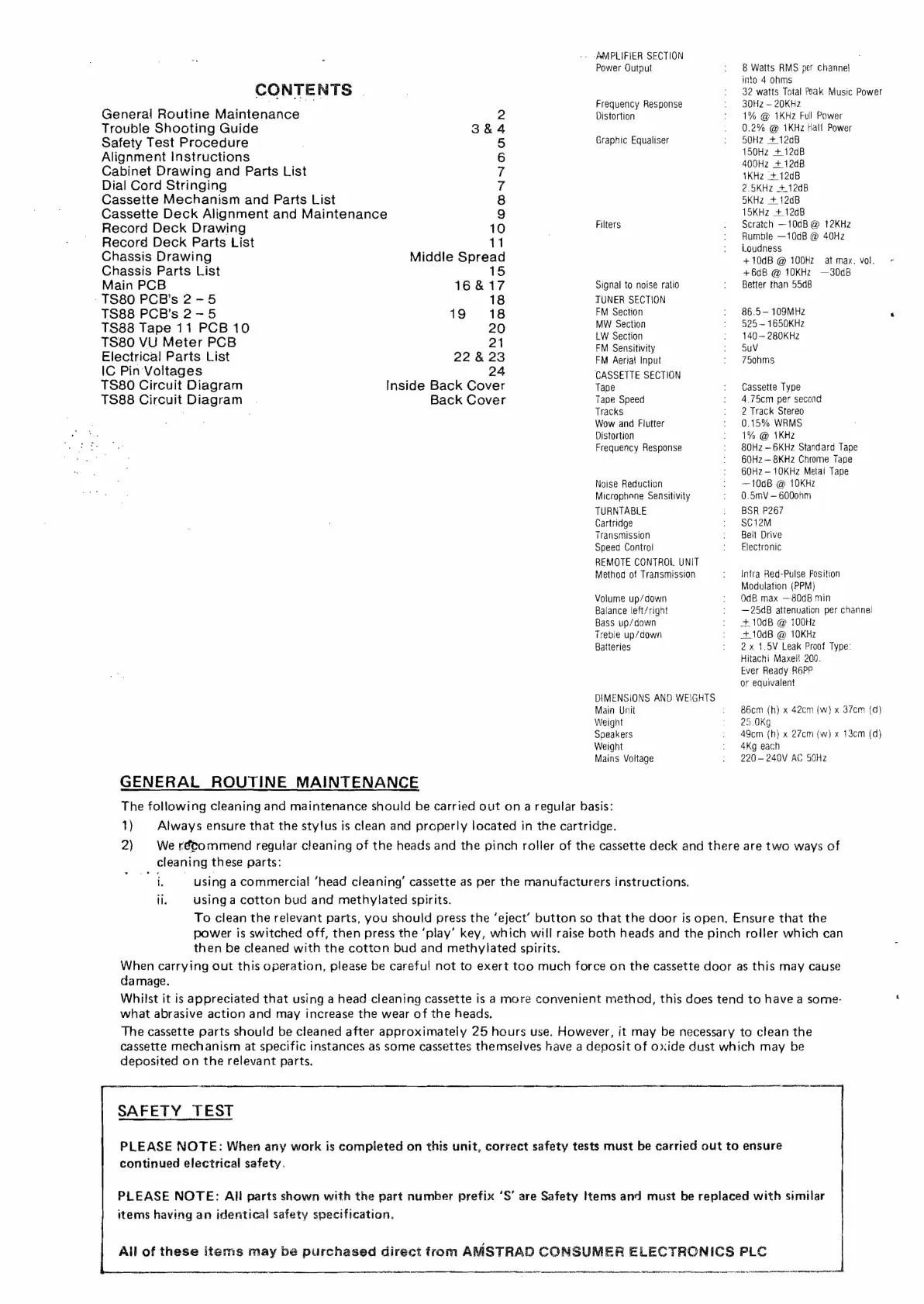

CONTENTS |
General Routine Maintenance
Trouble Shooting Guide
Safety Test Procedure
Alignment Instructions
Cabinet Drawing and Parts List
Dial Cord Stringing
Cassette Mechanism and Parts List
Cassette Deck Alignment and Maintenance
Record Deck Drawing
Record Deck Parts List
Chassis Drawing
Chassis Parts List
Main PCB
~TS80 PCB’s 2-5
TS88 PCB’s 2-5
TS88 Tape 11 PCB 10
TS80 VU Meter PCB
Electrical Parts List
IC Pin Voltages
TS80 Circuit Diagram
TS88 Circuit Diagram .
OONN DAA
—_
©
11
Middle Spread
21
22 & 23
24
Inside Back Cover
Back Cover
GENERAL ROUTINE MAINTENANCE
- -AMPLIFIER SECTION
Power Output
Frequency Response
Distortion
Graphic Equaliser
Filters
Signal to noise ratio
TUNER SECTION
FM Section
MW Section
LW Section
FM Sensitivity
FM Aerial Input
CASSETTE SECTION
Tape
Tape Speed
Tracks
Wow and Flutter
Distortion
Frequency Response
Noise Reduction
Microphone Sensitivity
TURNTABLE
Cartridge
Transmission
Speed Control
REMOTE CONTROL UNIT
Method of Transmission
Volume up/down
Balance left/right
Bass up/down
Treble up/down
Batteries
DIMENSIONS AND WEIGHTS
Main Unit
Weight
Speakers
Weight
Mains Voltage
The following cleaning and maintenance should be carried out on a regular basis:
1) Always ensure that the stylus is clean and properly located in the cartridge.
8 Watts RMS per channel
into 4 ohms
32 watis Total Peak Music Power
30Hz — 20KH2
1% @ 1KHz Full Power
0.2% @ 1KHz half Power
50Hz2 +12dB
150Hz +.12dB
400Hz + 12dB
KHz + 12cB
2.5KHz +12dB
5KHz + 12dB
15KHz +.12dB
Scratch —10dB @ 12KHz
Rumble —10d8 @ 40Hz
Loudness
+10dB @ 100Hz at max. vol.
+6dB @ 10KHz —30dB
Better than 55dB
86.5-— 109MHz
525 ~— 1650KHz
140 — 280KHz
5uV
75ohms
Cassette Type
4.75cm per second
2 Track Stereo
0.15% WRMS
1% @ 1KHz
80Hz —6KHz Standard Tape
60Hz — 8KHz Chrome Tape
60H2— 10KHz Metal Tape
—10dB @ 10KHz
0.5mV — 6000nm
BSR P267
SC12M
Bett Drive
Electronic
infra Red-Pulse Position
Modulation (PPM)
OdB max —80dB min
—25dB attenuation per channel
+.10dB @ 100Hz
+10dB @ 10KHz
2x 1.5V Leak Proof Type:
Hitachi Maxell 200.
Ever Ready R6PP
or equivalent
86cm (h) x 42cm (w) x 37cm (a)
29.0Kg
49cm (h) x 27cm {w) x 13cm (d)
4kg each
220— 240V AC 50Hz
2) Werétommend regular cleaning of the heads and the pinch roller of the cassette deck and there are two ways of
cleaning these parts:
tl. using a cotton bud and methylated spirits.
To clean the relevant paris, you should press the ‘eject’ button so that the door is open. Ensure that the
power is switched off, then press the ‘play’ key, which will raise both heads and the pinch roller which can
then be cleaned with the cotten bud and methylated spirits.
ie using a commercial ‘head cleaning’ cassette as per the manufacturers instructions.
When carrying out this operation, please be careful not to exert tco much force on the cassette door as this may cause
damage.
Whilst it is appreciated that using a head cleaning cassette is a more convenient methad, this does tend to have a some-
what abrasive action and may increase the wear of the heads.
The cassette parts should be cleaned after approximately 25 hours use. However, it may be necessary to clean the
cassette mechanism at specific instances as some cassettes themselves have a deposit of oxide dust which may be
deposited on the relevant parts.
SAFETY TEST
continued electrical safety.
APT ARRANGE
PLEASE NOTE: When any work is compieted on this unit, correct safety tests must be carried out to ensure
PLEASE NOTE: All parts shown with the part number prefix ‘S’ are Safety Items and must be replaced with similar
items having an identical safety specification.
All of these items may be purchased direct from AMSTRAD COMSUMER ELECTRONICS PLC
