COMPACT
SET
2000

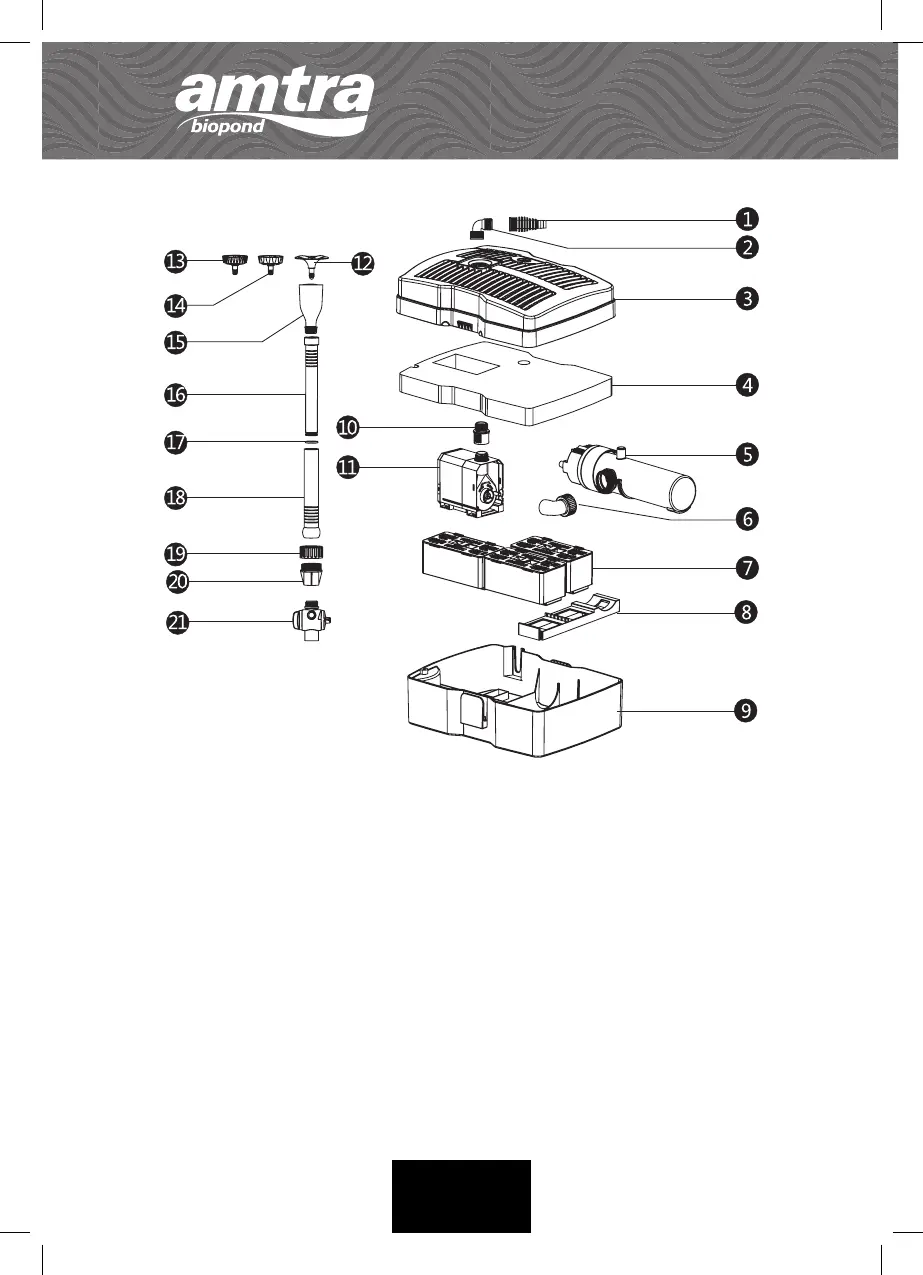

1. Hose connection
2. Elbow tting
3. Grid shell
4. Filtering sponge
5. UV-C lamp
6. Elbow tting
7. Container for biological lter
materials
8. Water suction line
9. Lower cover
10. Pump connector
11. Pump
12. Water play
13. Water play
14. Water play
15. Water play base
16. Tube
17. O-ring
18. Tube
19. Ring
20. Connection
21. Diverter with faucets
GB
FIG.1
