COMPACT
SET
2000

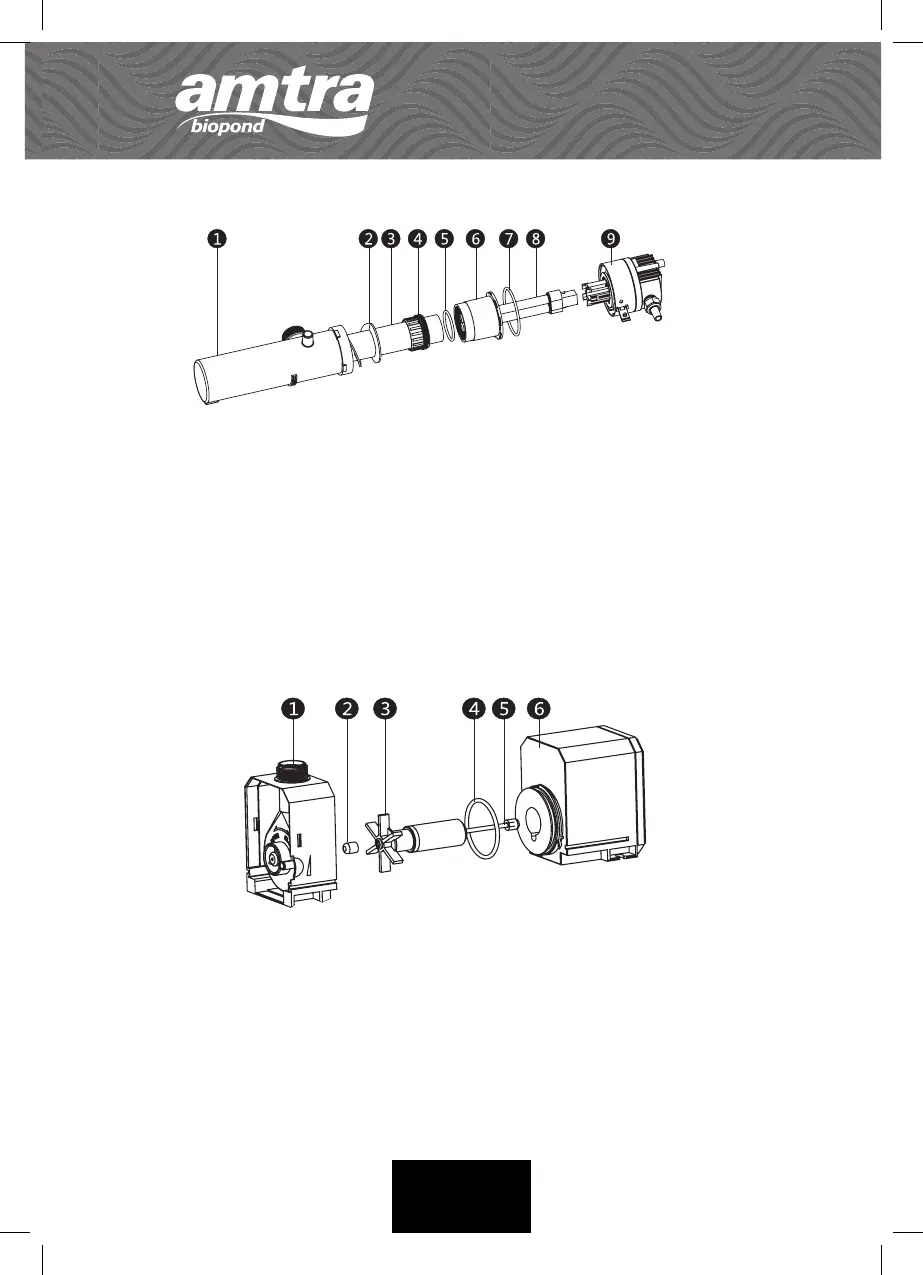

1. UV-V lamp body
2. Spiral protection
3. Quartz tube
4. Connection
5. O-Ring
1. Impeller cover
2. Bearing
3. Impeller
6. Connector for quartz tube
7. O-Ring
8. UV-C light bulb
9. UV-C lamp transformer
4. O-Ring
5. Impeller shaft
6. Engine
GB
FIG.2
FIG.3
