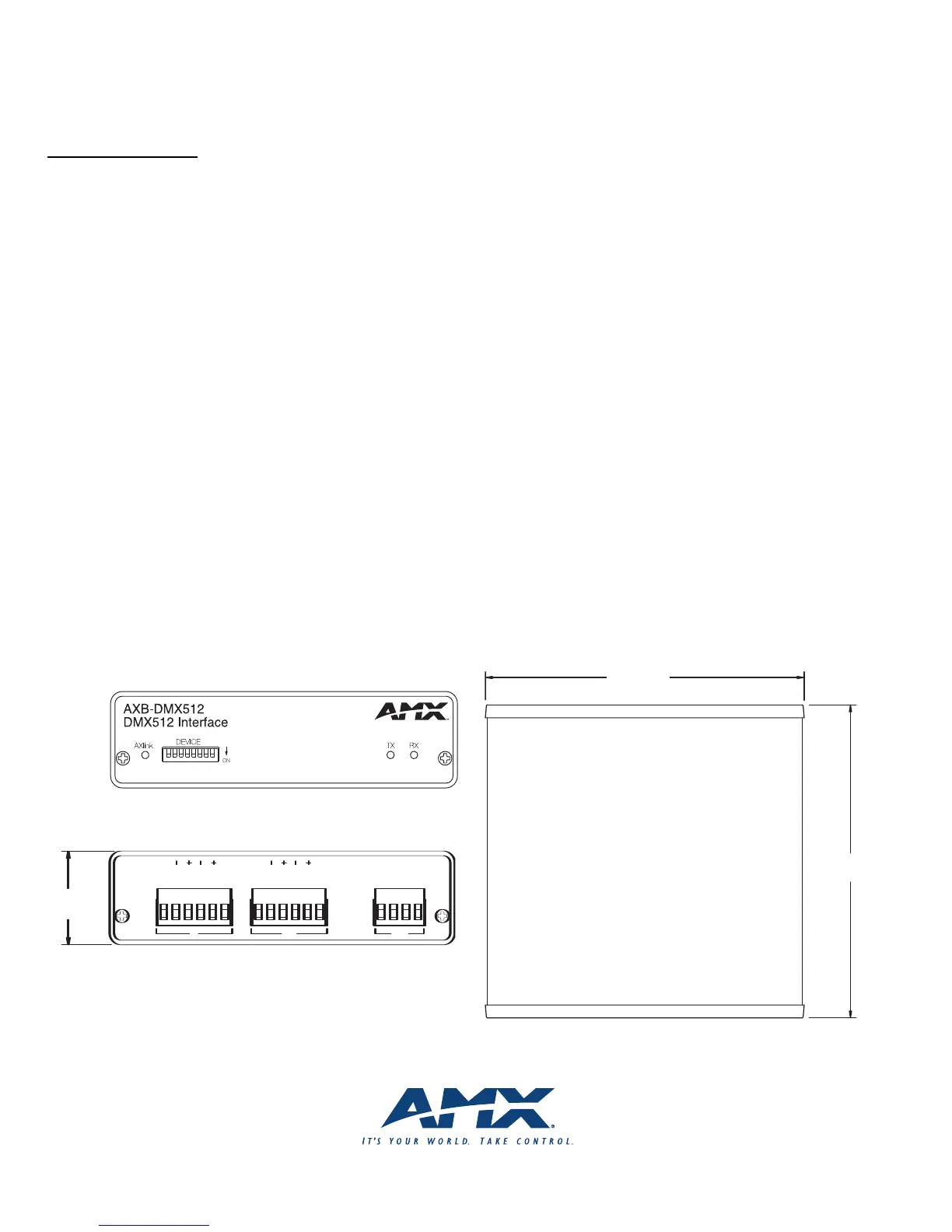

AXB-DMX512 (front)
AXB-DMX512 (rear)
AXB-DMX512 (top)
5.55
[141.0 MM]
5.450
[138.4 MM]
1.51
[38.4 MM]
dmx512 interface
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com
© 2006 AMX. All rights reserved. AMX and the AMX logo are all trademarks of AMX. AMX reserves the right to alter specifications without notice at any time.
AXB-DMX512 (FG5972)
• Generates DMX512 data signals
(data stream software adjustable from 1 to 512 channels)
• Receives DMX commands from a USITT DMX lighting console
or other sources
• Stores channel groups, patches, and up to 72 presets in non-
volatile onboard memory, 284 with optional extended memory
(EXM-256KB)
• Assigns channels to as many as 8 groups as well as attaches
both channels and groups to up to 8 faders
• Operates in tandem with DMX lighting board
(highest level has precedence)
•
Provides bypass mode to allow direct control from a lighting
boar
d or DMX source
• Re-transmits DMX data from external sources without affecting
the source’s channel grouping or patches
•
Extends control up to 3,000 feet via the AXLink data/power bus
• Mounts in equipment rack with optional AC-RK Accessory Rack Kit
FRONT PANEL
AXLink: Green LED lights to show status of AXLink
communication and DC power
Device: 8-position device assignment DIP switch
TX: Red LED lights when transmitting DMX data
RX: Red LED lights when receiving DMX data
REAR PANEL
In: 6-pin DMX In jack
Out: 6-pin DMX Out jack
A
XLink: 4-pin jack for AXLink data/power bus
E
NCLOSURE
• Metal with black matte finish
DIMENSIONS (HWD)
• 1.51" x 5.55" x 5.45" (38.4 cm x 14.10 cm x 13.84 cm)
WEIGHT
• 1.1 lbs (513.0 g)
POWER
• 12 VDC at 160 mA
INCLUDES
• One 4-pin AXLink connector
• Two 6-pin DMX connectors
OPTIONS
• AC-RK Accessory Rack Kit
• EXM-256KB Extended Memory
