Wiring and Connections
7
T
ango Amplifiers
Connecting To a Tango Audio Controller
Connect the Tango Amplifier to the Tango Audio Controller via the 4-pin connector labelled “From
Controller” on the rear panel of the Amplifier.
Connecting SWT Keypads
Connect SWT Keypads (DAS-MET-6SRC or K-Series) to the Tango Amplifier via the SWT connector
labelled “To Keypad” on the rear panel of the Amplifier.
Wiring Diagram

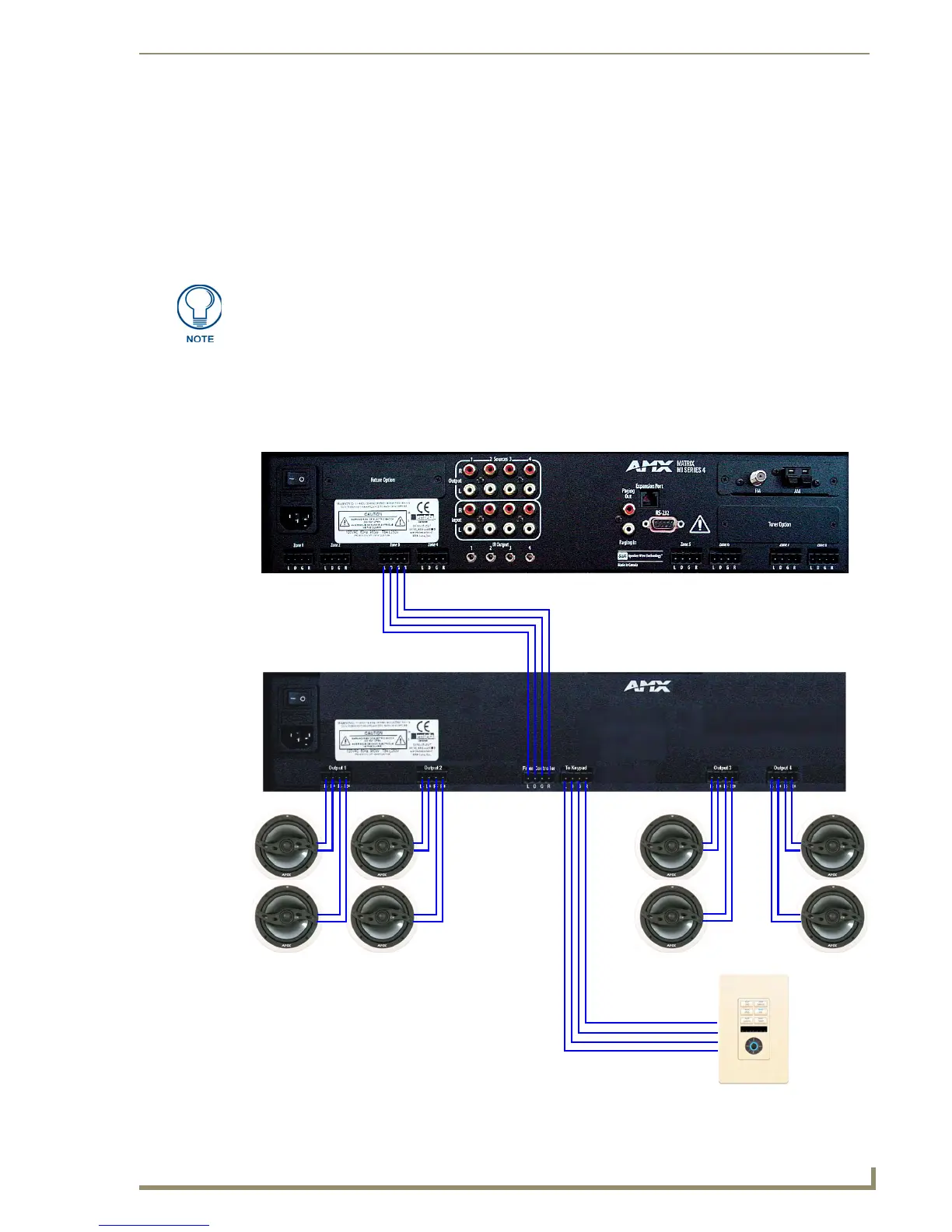

FIG. 3 illustrates the connections from a Tango Audio Controller, and to SWT Speakers and Metreau (SWT)
Keypad.
When stripping cable for use with SWT connector, only strip away about ¼” (6mm) of
the insulation from each wire. The complete assembly should not have more than 1/
32” (1mm) of bare wire exposed from the bottom of the connector.
FIG. 3 Wiring Diagram
Tango Audio Controller
Tango Amplifier
DAS-MET-6SRC
