AMX NXF-MINI

NXF-MINI (FG2104)
• Provides four series control card slots
• Links to other NetLinx devices over the ICSNet
• Installs easily into rack or shelf, or onto wall
using supplied mounting brackets
• Accepts optional CSB bracket for cable support
and wire management
FRONT PANEL
• 1–4:
Shows LED status indicators from optional NXC
control cards
REAR PANEL
• Slots 1–4:
20-pin control card connectors
• Device:
8-position DIP switch sets the starting address
for Control Cards in the MINI CardFrame
• ICSNet:
One RJ45 connector for ICSNet interface
• PWR:
2-pin jack for +12 VDC power input
ENCLOSURE
Metal with black matte finish
MOUNTING OPTIONS
Rack, wall, or shelf mount
DIMENSIONS (HWD)
1.75" x 17.0" x 9.56"
(4.45 cm x 43.18 cm x 24.28 cm)
(width does not include mounting ears)
WEIGHT
6.2 lbs (2.8 kg)
POWER
12 VDC, 25 mA minimum
Additional power required as cards and
accessories added Includes
INCLUDED ITEMS
Two mounting brackets
One 2-pin PWR connector (41-5025)
OPTIONS
NetLinx Control Cards
CSB Cable Support Bracket (FG517)
PSN 6.5 12 VDC @ 6.5A Power Supply (FG423-41)
16
CARDFRAME #
ON
18
17
1920
14
15
12
13
98710
11
SLOT 4
2
5
6
4
3
1
SLOT 3
11
16
17
19 1820
12
13
15
14
10 9 78
3
5
6
4
2
SLOT 1
11
16
117
20 19 18
11
13
15
14 12
10 897
SLOT 2
3
2
5
6
4
1
1620 1819
17
13
14 12
15 8 710 9 6
5
3
4
21
ICSNet
PWR
12VDC

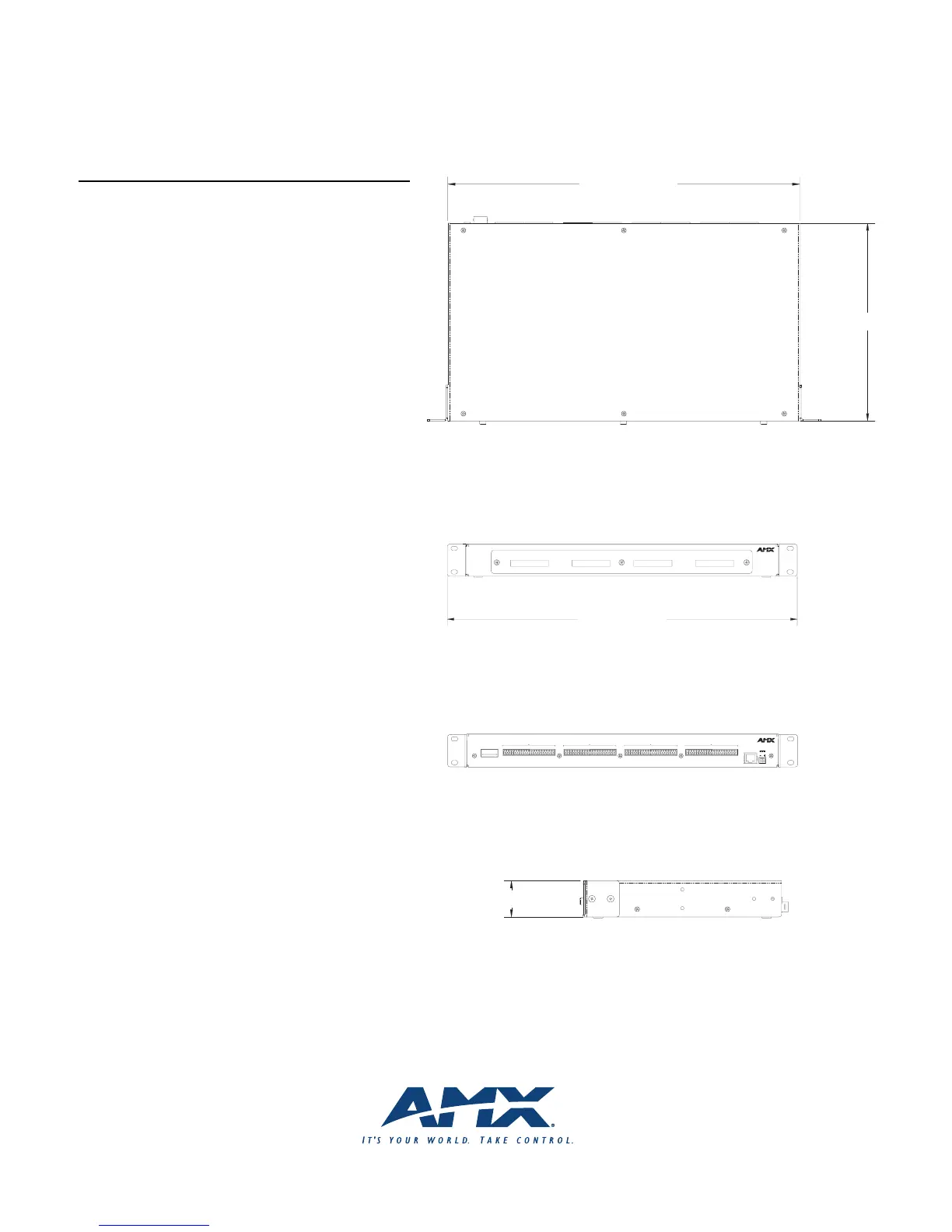

NXF-MINI
NXF-MINI (Rear View)
19.00 [482.60]
NXF-MINI
1.75 [44.45]
NXF-MINI (Front View)
NXF-MINI (Right View)
9.56 [242.70]
17.00 [431.80]
NXF-MINI (Top View)
netlinx
®
mini-cardframe
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com
100-019-2732 © 2005 AMX Corporation. All rights reserved. AMX and the AMX logo are all trademarks of AMX Corporation. AMX reserves the right to alter specifications without notice at any time.
9.56 (242.70MM)
1.75 (44.45MM)
19.00 (482.60MM)
17.00 (431.80MM)
