5. Apply power to the AMX Lighting controller at the breaker panel.

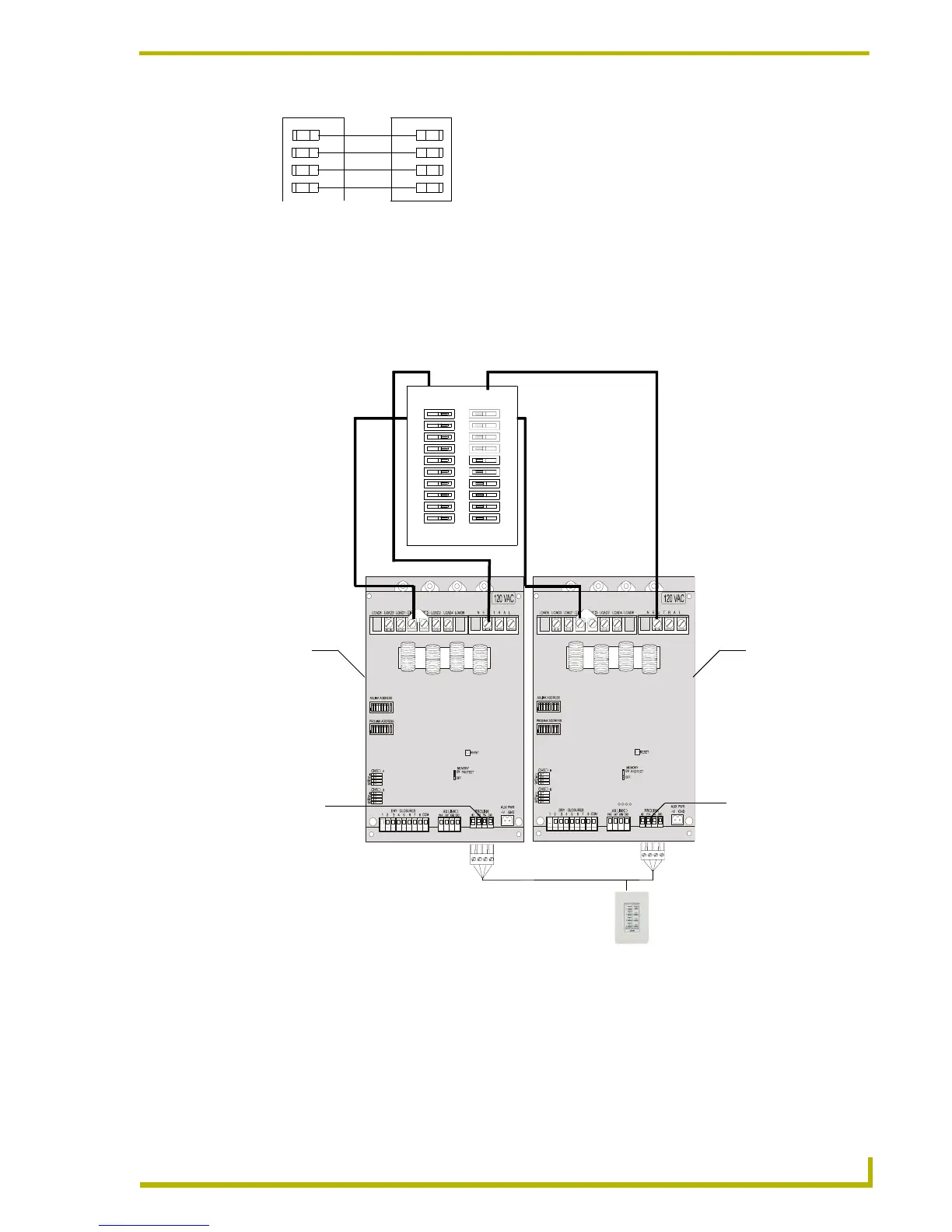

FIG. 19 shows an example of how to interconnect two AMX Lighting RDD-DM4 controllers and a
PROlink wall panel.
FIG. 18 PROlink wiring diagram
FIG. 19 PROlink configuration sample
Radia PROlink connectorPROlink wall panel
+12V
PR+
PR-
GND
+12V
PR+
PR-
GND
PROlink
Neutral Neutral
HOT (1) HOT (2)
(orange)
PROlink
connector
RDD-DM4
(pack 2)
connector
(orange)
PROlink
PRO-DP8
wall panel
RDD-DM4
(pack 1)
