AMYET S8 - Page 16

AMYET
ASSEMBLY

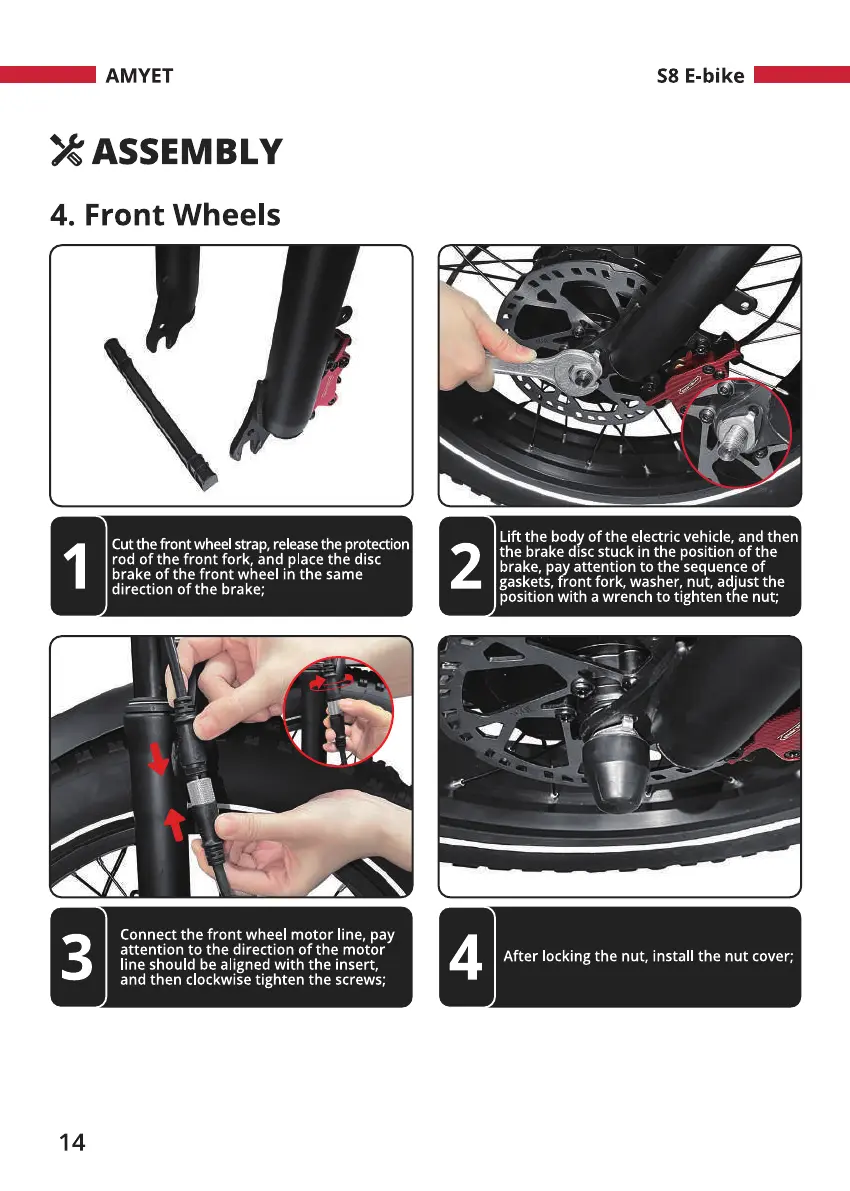

4. Front Wheels
Cut the front wheel strap, release the protection
rod of the front fork, and place the disc
brake of the front wheel in the same
direction of the brake;
Connect the front wheel motor line, pay
attention to the direction of the motor
line should be aligned with the insert,
and then clockwise tighten the screws;
14
S8 E-bike
Lift the body of the electricvehicle,andthen
the brake disc stuck in the position of the
brake, pay attention to the sequence of
gaskets, front fork, washer, nut, adiust the
position with a wrench to tighten the nut;
After locking the nut, install the nut cover;
