amzchef YL-CF6705 - Hob Installation Details; Mounting and Fixing Brackets; Securing the Hob

23
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
30 mini
Air intake
Air exit 10 mm

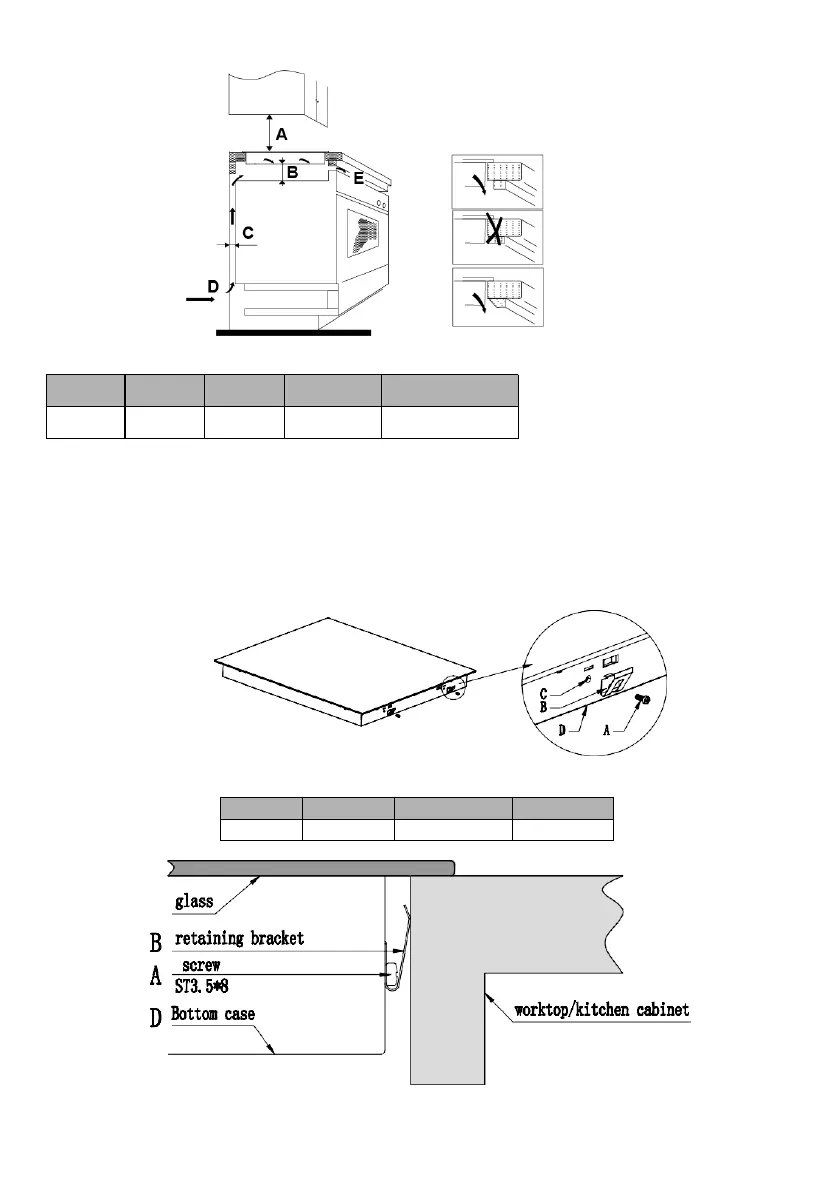

Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not apply
force onto the controls protruding from the hob.
Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture)
after installation.
A
B
C
D
screw
bracket
Screw hole
base
