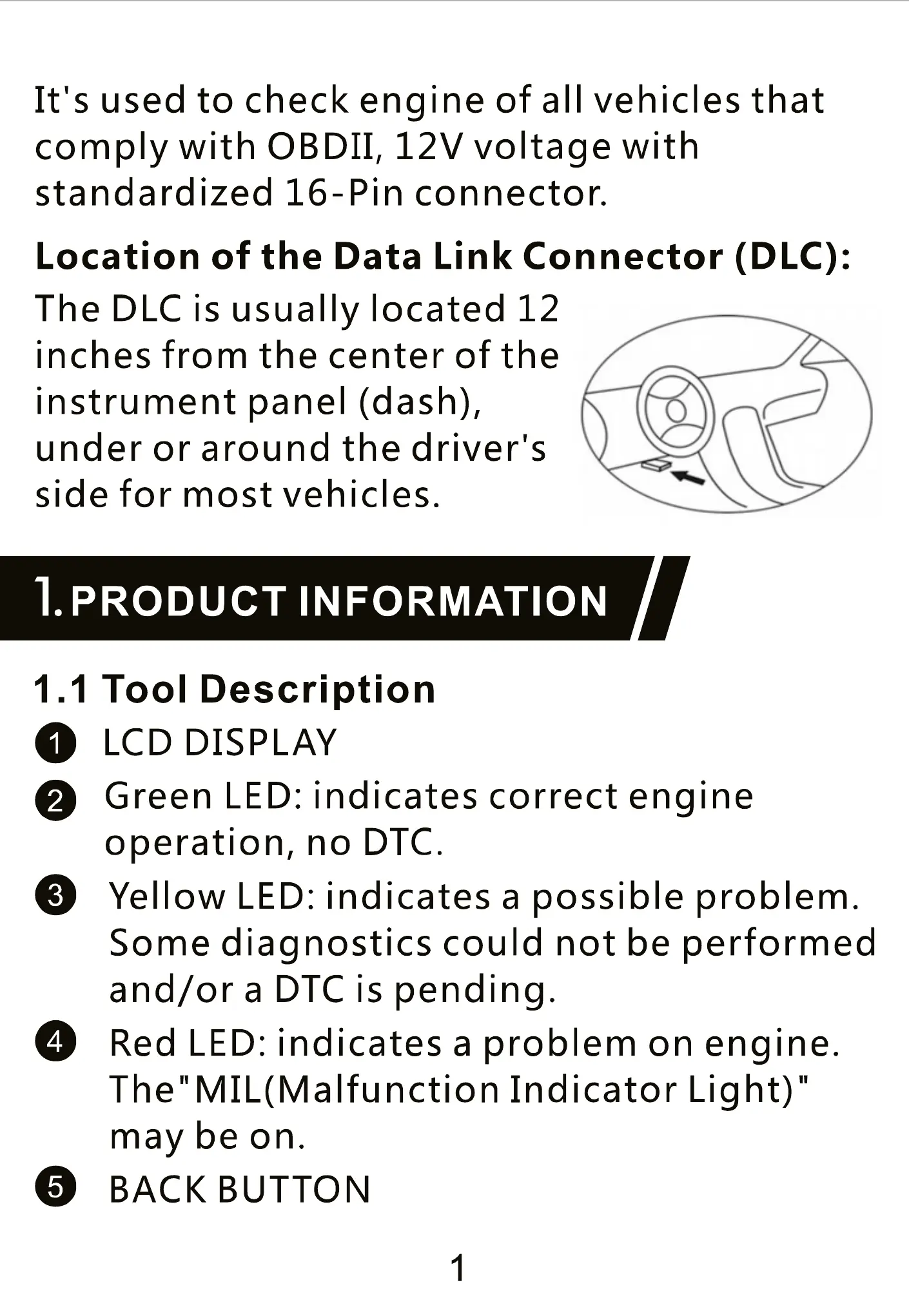

It's used to check engine of all vehicles that
comply with OBDII, 12 V voltage with
standardized 16-Pin connector.
Location of the Data Link Connector (DLC):
The DLC is usually located 12
inches from the center of the
instrument panel (dash),
under or around the driver's
side for most vehicles.
1. PRODUCT INFORMATION
1.1 Tool Description
O LCD DISPLAY
Green LED: indicates correct engine
operation, no DTC.
O Yellow LED:indicates a possible problem.
Some diagnostics could not be performed
and/or a DTC is pending.
O RedLED:indicates a problem on engine.
The" MIL(MaIfunction Indicator Light)"
may be on.
O BACK BUTTON
