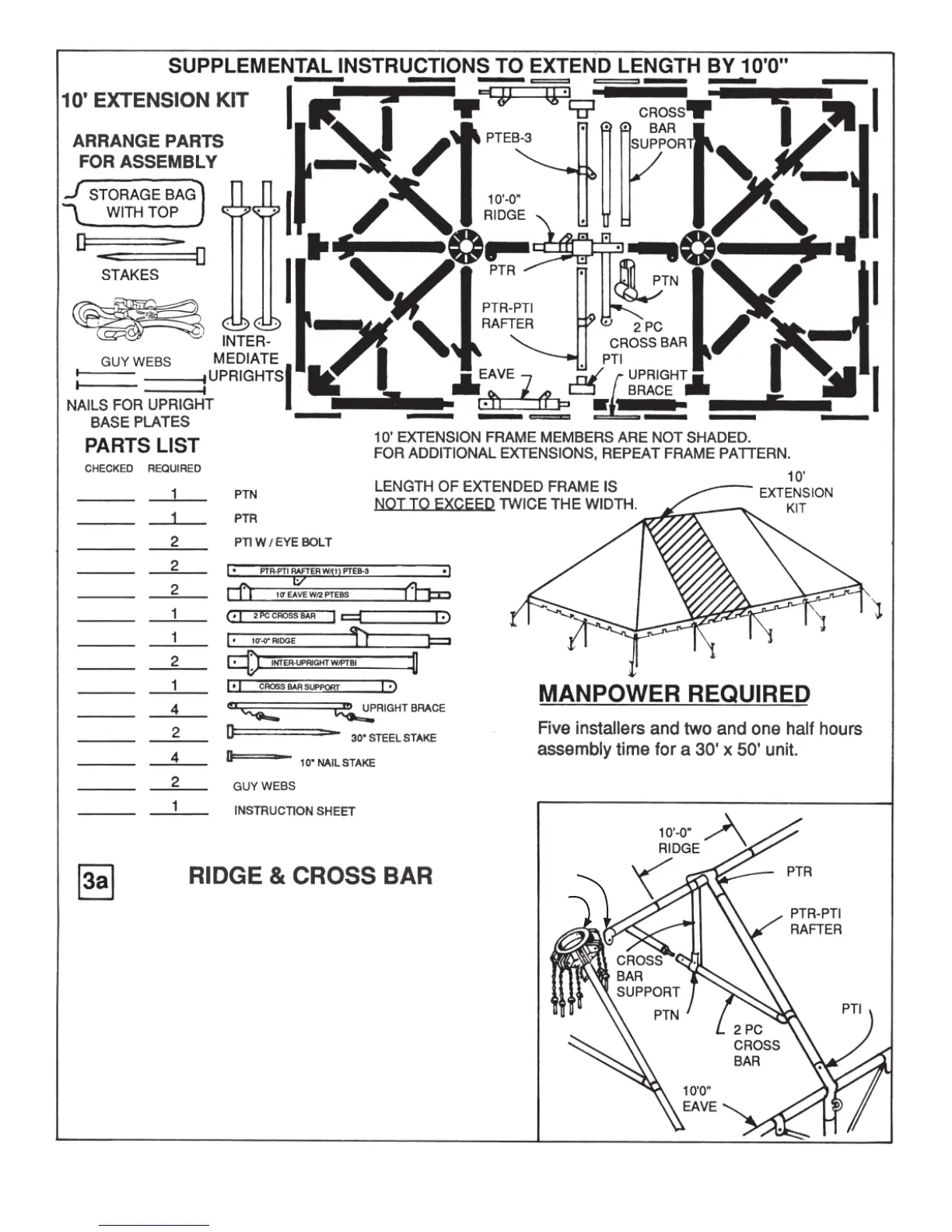

Anchor Fiesta - Supplemental Instructions: 10 Extension Kit; Arrange Parts for 10 Extension Kit; Parts List for 10 Extension Kit; Ridge and Cross Bar for Extension Kit

7
Slide PTR on to 10’-0” ridge. Align with hole at center of
ridge and pin. Repeat for each 10’-0” ridge. Pin 10’-0”
ridges together and add existing ridges to each end. Lift
and pin assembled ridges to PTT’s, using the PTRE
pointed downward so that ridges are elevated.
Insert PTR-PTI rafters into PTRs and PTIs and pin.
Pin Cross Bars together and attach to frame as shown.
PTRE
PTT
