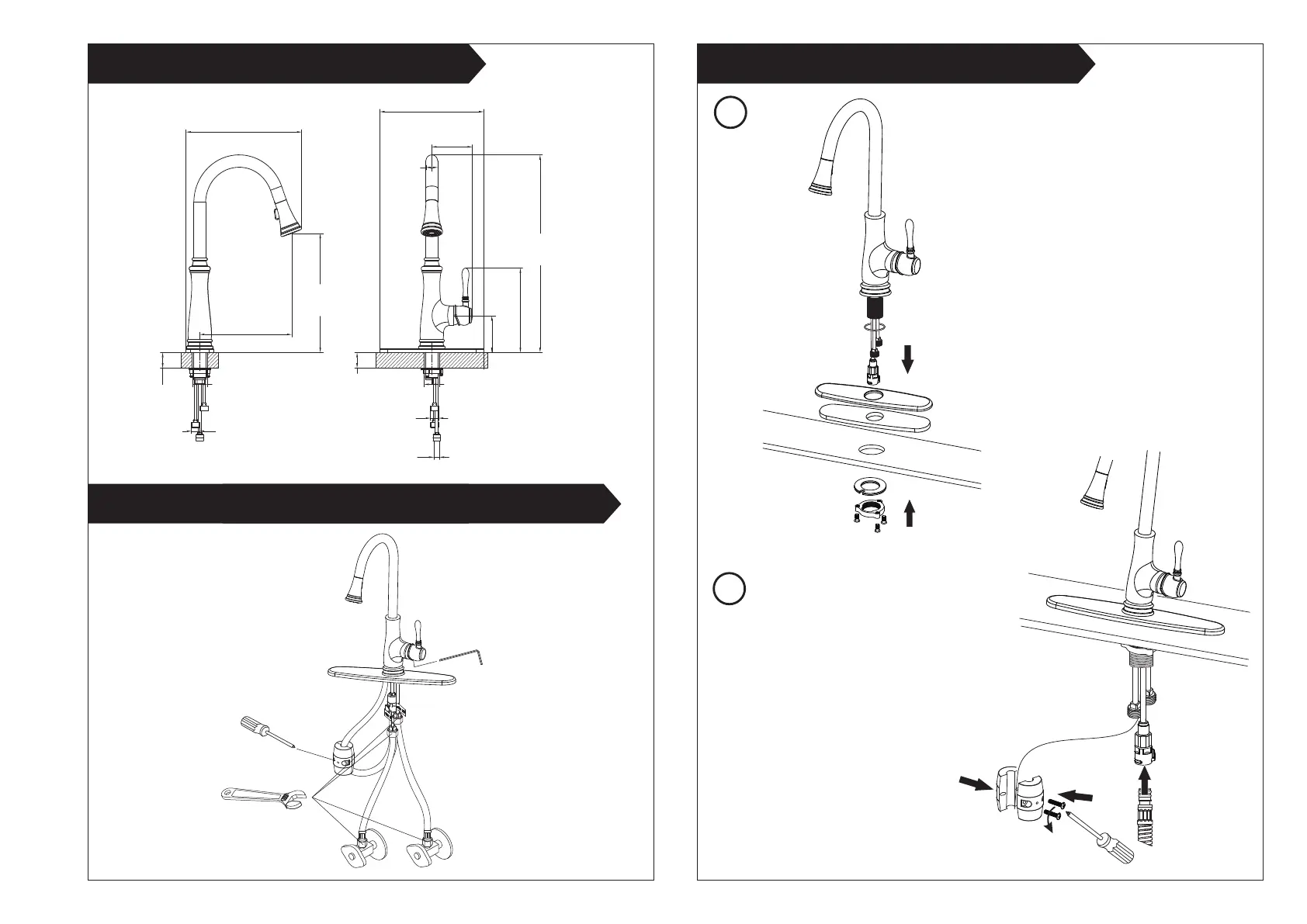

Faucet Installation
1
Position the faucet, deck plate and
gasket in order on the counter top as
shown. Don't forget the O-ring.
Assemble gasket assembly and lock
nut to faucet threaded sleeve by hand
and tighten the screws with
screwdriver.
2
Connect the shower hose to quick
connect. CAUTION: MAKE SURE THE
HOSE IS PROPERLY ENGAGED AND
SECURED IN THE QUICK CONNECT.
Disassemble the weight and put it on
the shower hose. Then fix screws by
screw driver.
Tools might be applied to the following places:
Installation size map
11.6" (294.2 mm)
10.4" (264.2 mm)
4"
(103 mm)
18.8"
(479 mm)
3.5" (89.6 mm)
8" (204.7 mm)
Ø1.3" (35 mm)
Ø1.3-1.5"
(35-38 mm)
Ø1.3" (35 mm)
Ø1.3-1.5"
(35-38 mm)
9.2" (234 mm)
11.4"
(289.3 mm)
Ø1.2"
(30 mm)
1/2-14NPSM
1/2-14NPSM
M15X1
