2
0005475
3

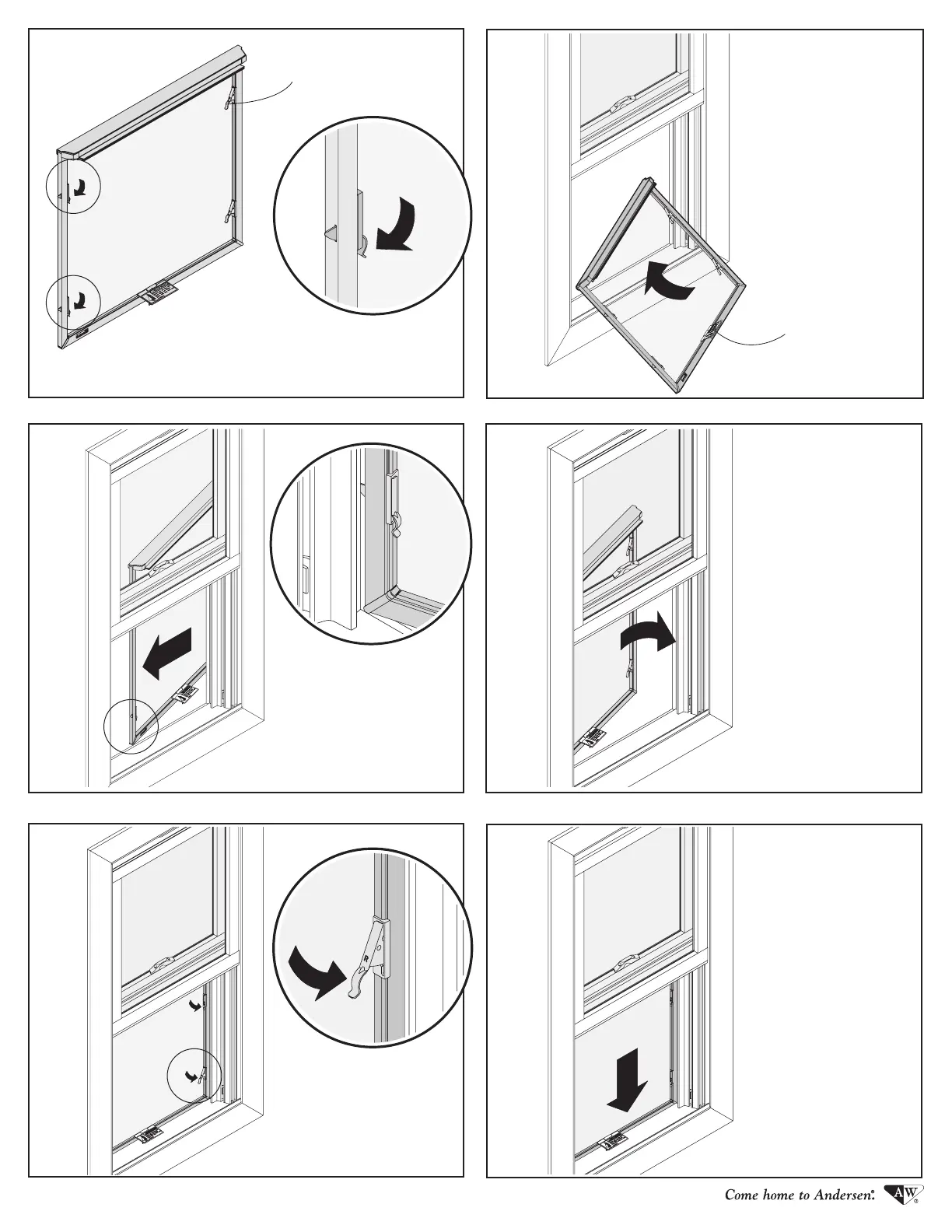

Close top and bottom
latches on one side only.
Push side with closed
latches into the insect screen
channel. Position latch points
into insect screen channel,
as shown, creating a hinge
point.
Do not close latches
on opposite side.
5
7
8
▶ Procedure is complete.
Pull tab must face
interior.
Close latches.
4
6
Slide insect screen
down to sill.
Unlock and fully open
bottom sash.
Hold insect screen sides,
near bottom, and pass
through window opening.
Pull insect screen in.
