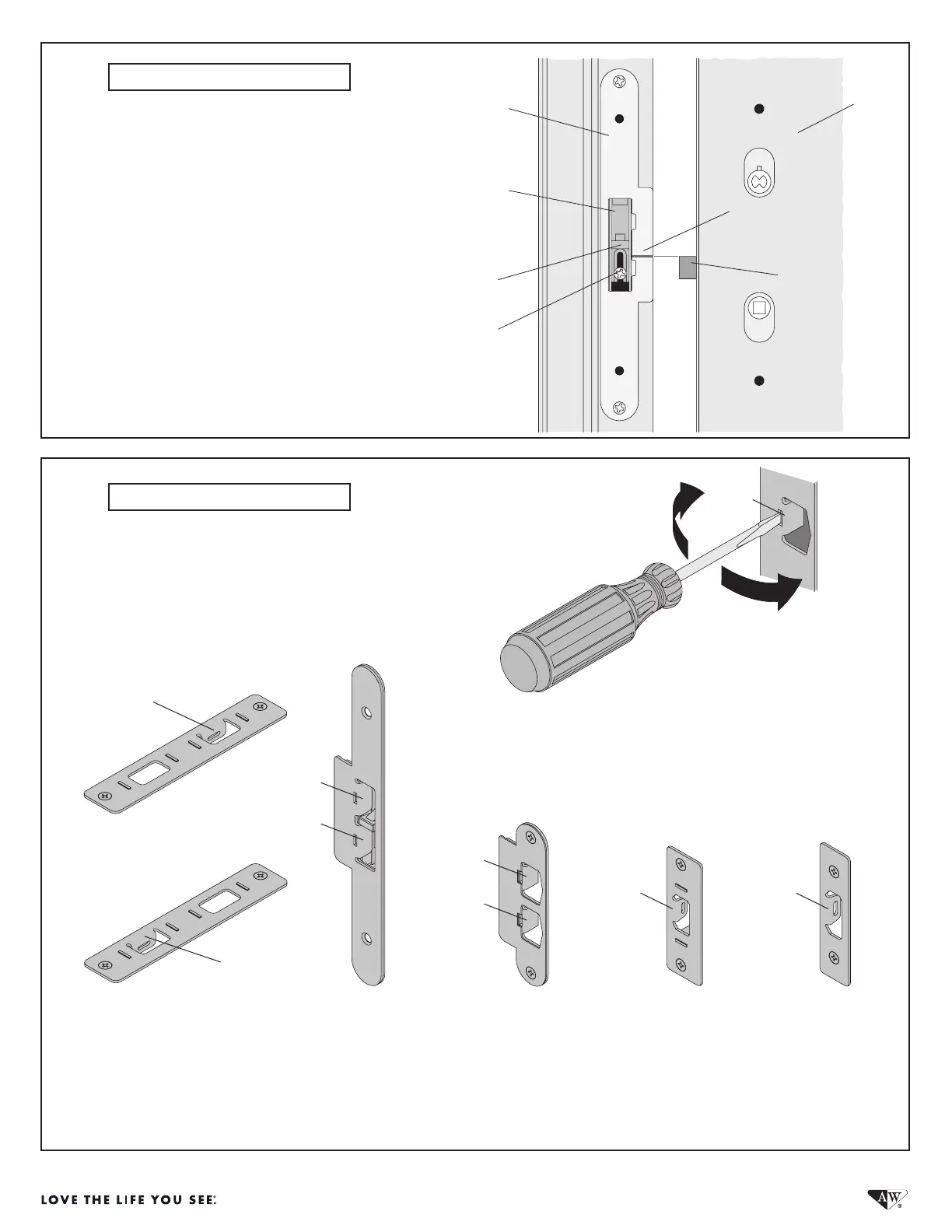

• Make a pencil mark where top of latch bolt strikes
latch receiver.
• Loosen blocker adjustment screw.
• Slide blocker up or down so lower surface of
blocker lines up with pencil mark.
• Tighten blocker adjustment screw.
• Close and lock panel(s).
Latch
Bolt
Blocker
Blocker
Adjustment
Screw
Pencil mark,
showing top
of Latch
Lower
Surface
Latch
Receiver
Door
Panel
• Adjust tabs in latch receiver, hook bolt receivers, and ush bolt receivers using a at blade screwdriver to achieve adequate
weatherstrip compression when the door panel is closed.
• Adjust tab on hook bolt receivers if hook bolts do not stay engaged.
Latch Receiver/Trim
AP/PA
(Astragal)
Latch Receiver/Trim
AR/AL
(Jamb)
Flush Bolt Receiver
Head PA/Sill AP
(Astragal)
Flush Bolt Receiver
Head AP/Sill PA
(Astragal)
Hook Bolt Receiver
AL/AR
(Jamb)
Hook Bolt Receiver
AP/PA
(Astragal)
Tab
4
Tab
Tab
Tab
Tab
Tab
Tab
Blocker Adjustment
Tab Adjustment
▶ Hinge and hardware adjustment is complete.
Tab
Tab
