Converge the arms to the
centre and fix the arms to the
bottom of the projector plate
by using M6 screws (7), and
washers (11) and (16).

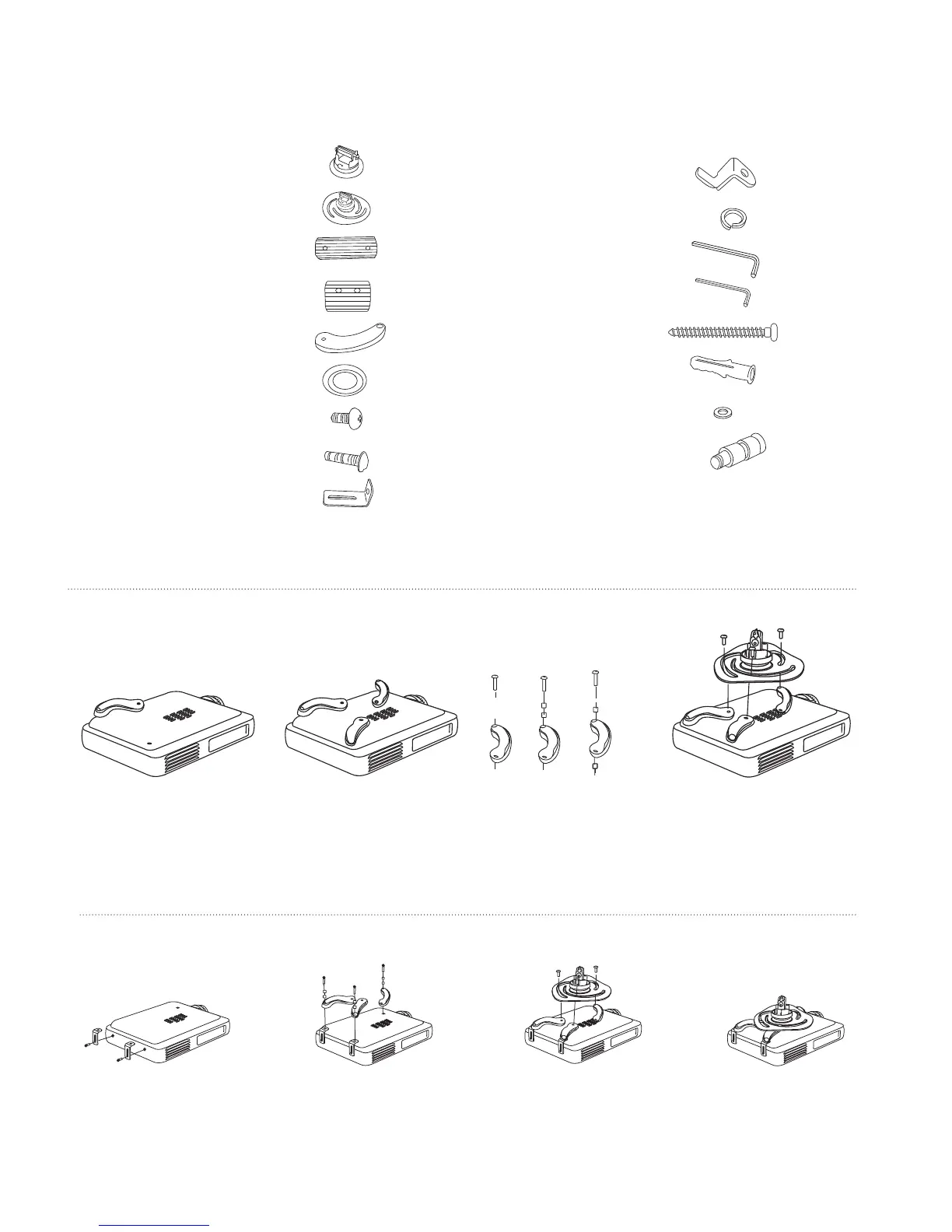

Hardware Kit:
1. Ceiling plate x1
2. Projector plate x1
3. 15 cm Extension pipes x1
4. 8 cm Extension pipes x1
5. Projector arm x3
6. Rubber gasket x1
7. M6 screw x4
8. M4 screw x4
9. Adapter part A x2
10. Adapter part B x3
11. M6 Washer x3
12. 5 mm Allen key x1
13. 4 mm Allen key x1
14. 6 mm Lag bolt x3
15. Concrete anchor x3
16. M6 washer x6
17. Screw with washer x3
Supplied parts are exclusive for use in this product.
Other parts are forbidden. If any parts are missing
or defect, please contact your retailer.
Ⅰ
Ⅱ
Ⅲ
1
2
3
4
This product is designed to mount video projector weighing up to 10kg to ceiling. Please read the entire
instruction sheet before you start installation and assembly.
Fasten the projector arms
(5), using screws with
washer (17).
Adjust the projector
arms to the same
height.
Choose mode 1, 2 or 3
to adjust the projector
arm to the same height
from the surface of the
projector.
Mount the projector
Common mounting
Special mounting: Toshiba projectors
Fix the screws.
Attach adapter part A
(9) to the projector using
M4 screws (8).
Fasten the projector
arms (5), using screws
with washer (17).
Converge the arms to the
centre and fix the arms to the
bottom of the projector plate
by using M6 screws (7), and
washers (11) and (16).
To Next Page
