AndyMark AM14U4 - Wheel and Pulley Assembly; Outer Wheels Assembly; Center Wheels Assembly

9

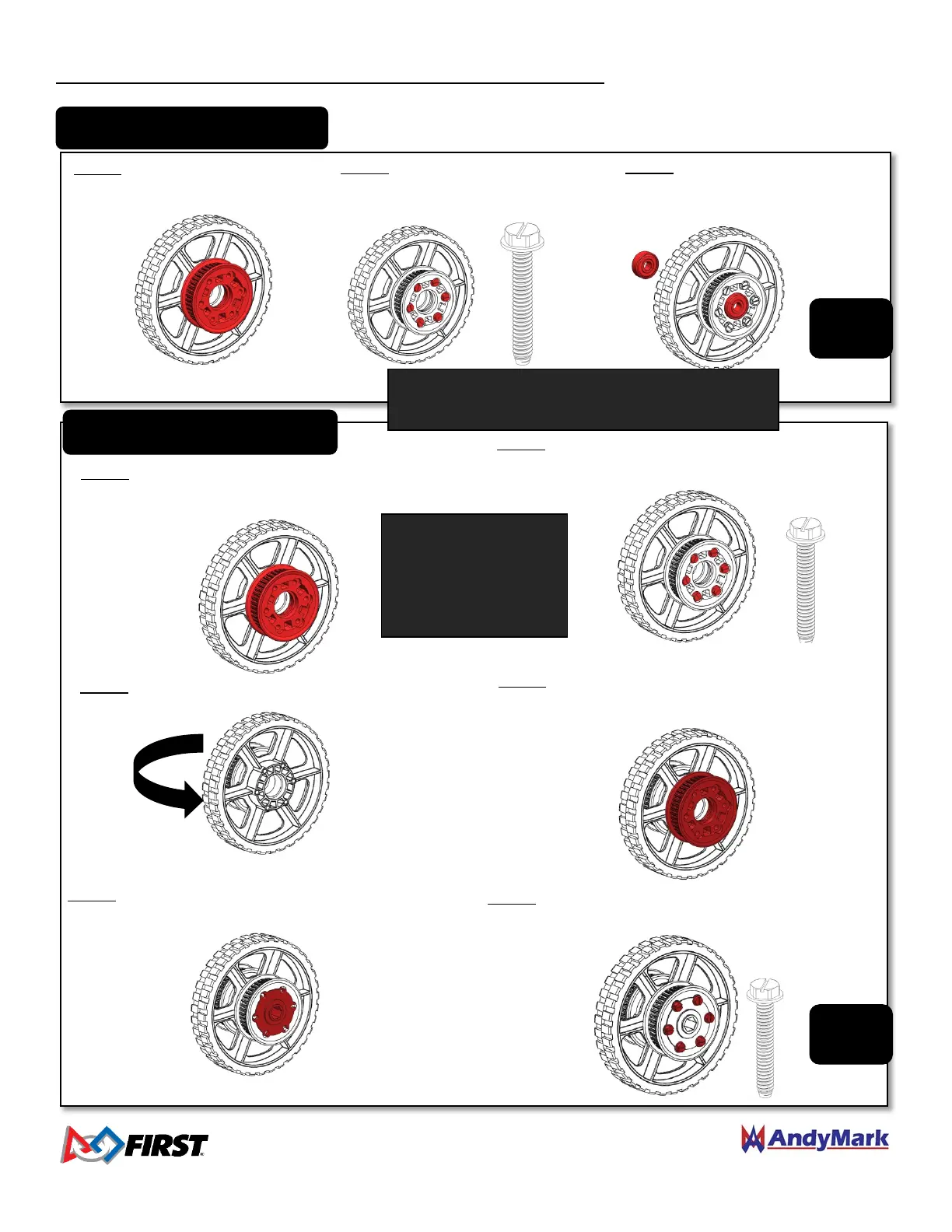

6” HiGrip Wheel and Pulley Assembly Instructions
Outer Wheels (QTY 4)
Step 3: Press two 1614ZZ bearings
(am-0209) into each side of the
wheel/pulley.
4X
Center Wheels (QTY 2)
Step 2: Using six 10-24 x 1.25” (am-1266) thread
forming screws attach the pulley halves to the wheel.
Step 4:
Add two more pulley halves (am-2234-half) to
the wheel.
Step 3: Flip wheel over.
Step 5: Insert one 500EX Hex Hub (am-2568) into
the pulley on one side of the wheel.
Step 6: Add six 10-24 x 1.25” (am-1266) thread forming
screws to attach the pulley and hub to the wheel.
Step 1: Add two pulley halves (am-2234-half)
to the wheel (am-0940b).
2X
NOTE: Tighten the screws in a star pattern to
ensure the pulley aligns evenly on the wheel.
NOTE: Tighten the
screws in a star
pattern to ensure the
pulley aligns evenly
on the wheel.
Step 1: Add two pulley halves (am-
2234-half) to the wheel (am-0940b).
Step 2:
Using six 10-24 x 1.25” (am-
1266) thread forming screws, attach
the pulley halves to the wheel.
