AndyMark AM14U4 - Toughbox Mini Gearbox Assembly

10
Toughbox Mini Assembly Instructions – Build 2 gearboxes

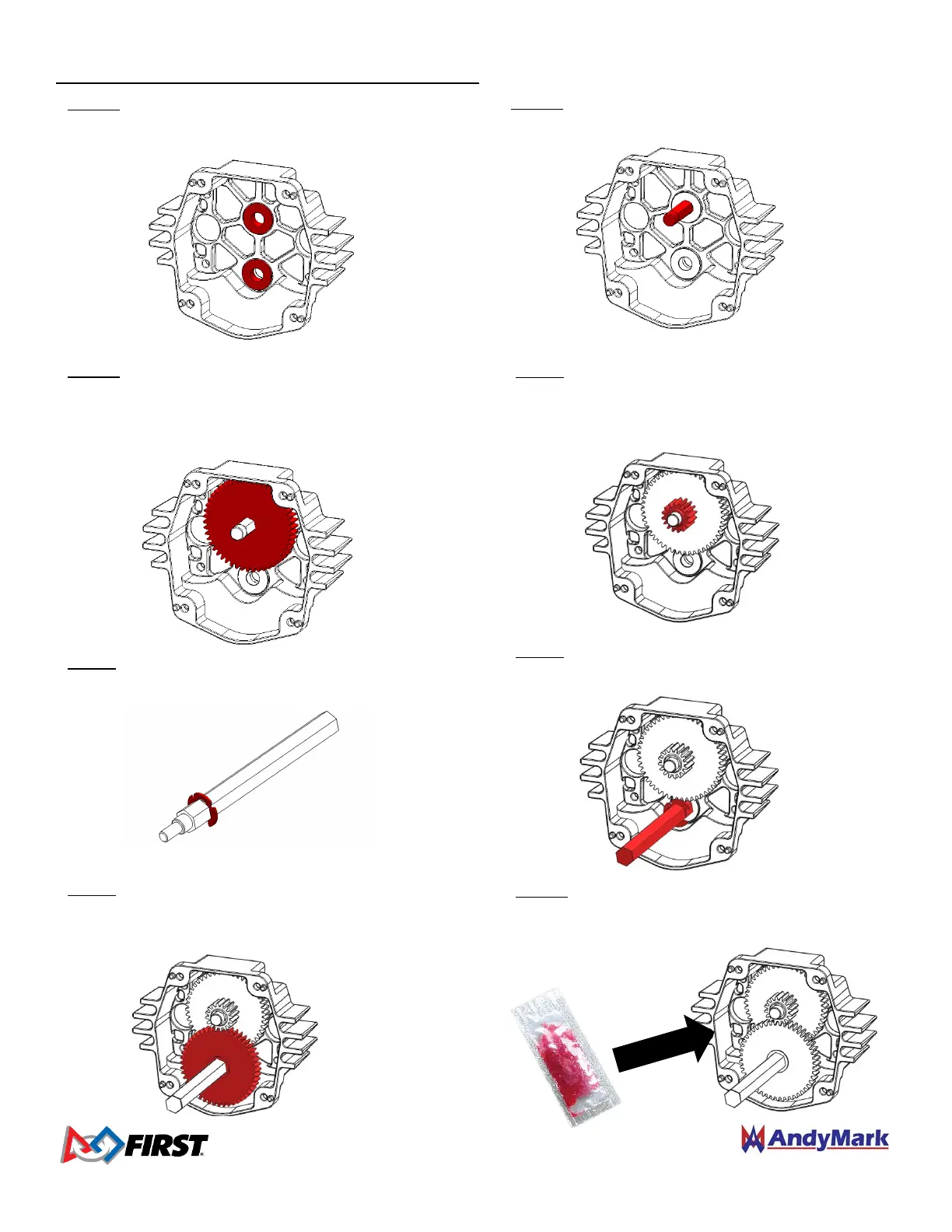

Step 1:
Press two R6ZZ bearings (am-0516) into the two
center holes of the TB Mini Housing (am-0650). Ensure they
are fully seated and inserted all the way into the housing.
Step 2: Insert the TB Small Hex Shaft (am-0152) into
R6ZZ bearing closest to the flat edge of the housing.
Step 6: Insert the small end of the TB Hex Output
Shaft (am-2566a_K19) into the other R6ZZ bearing.
Step 5: Tap the 1/2” E-Clip (am-0206) onto the groove
on the TB Hex Output Shaft (am-2566a_K19).
Step 7: Place the 48 Tooth Gear (am-0885) on TB
Hex Output Shaft with the flat side touching the
1/2” E-Clip.
Step 8:
Apply Red Tacky Grease (am-2768) to all of
the gear teeth.
Step 3: Place the 50 tooth gear (am-0149) on the TB
Small Hex Shaft with the small round boss touching
the bearing and the flat side of the gear facing away
from the housing.
Step 4
: Place the 16 tooth gear (am-0747) on the TB
Small Hex Shaft with flat side touching the 50
tooth gear.
