ANK Kit1 300B - Page 6

5

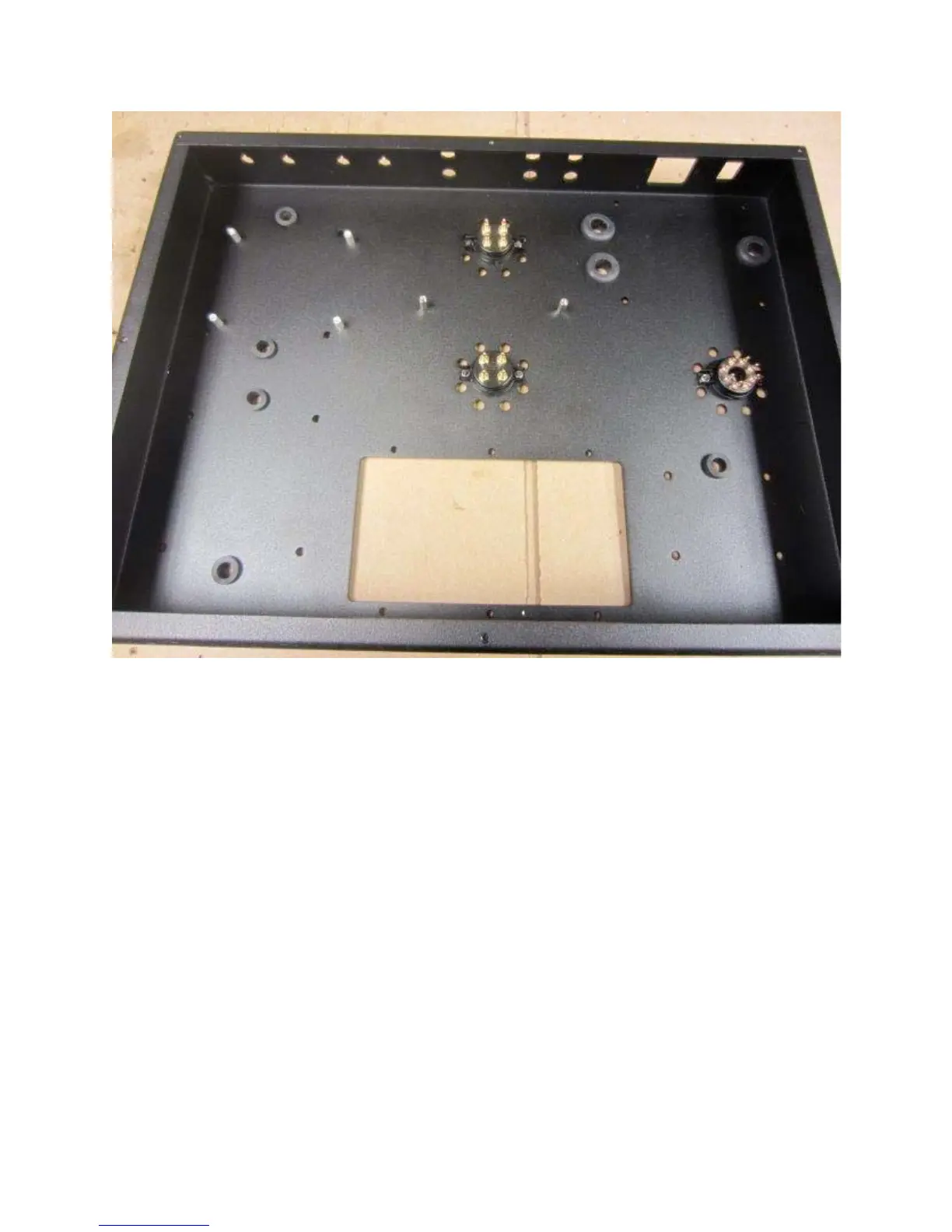

The next step after the valve bases have been installed is to install the two 10mm hex
standoffs in the center of the underside of the chassis as shown in the above pic – this
is the mounting for the tag strip that we will install later for all the hardwiring! Use the 2
x M3 10mm hex standoffs and 2 M3 6mm countersunk screws that screw in from the
top side of the chassis!
