ANK Kit1 300B - Page 8

7
TANG STRIPS
Next task is to install the TANG strips – these strips are used to support the Front insert
plate
The two tang strips will require just 3 M3 x 10mm black countersunk screws and 3 M3

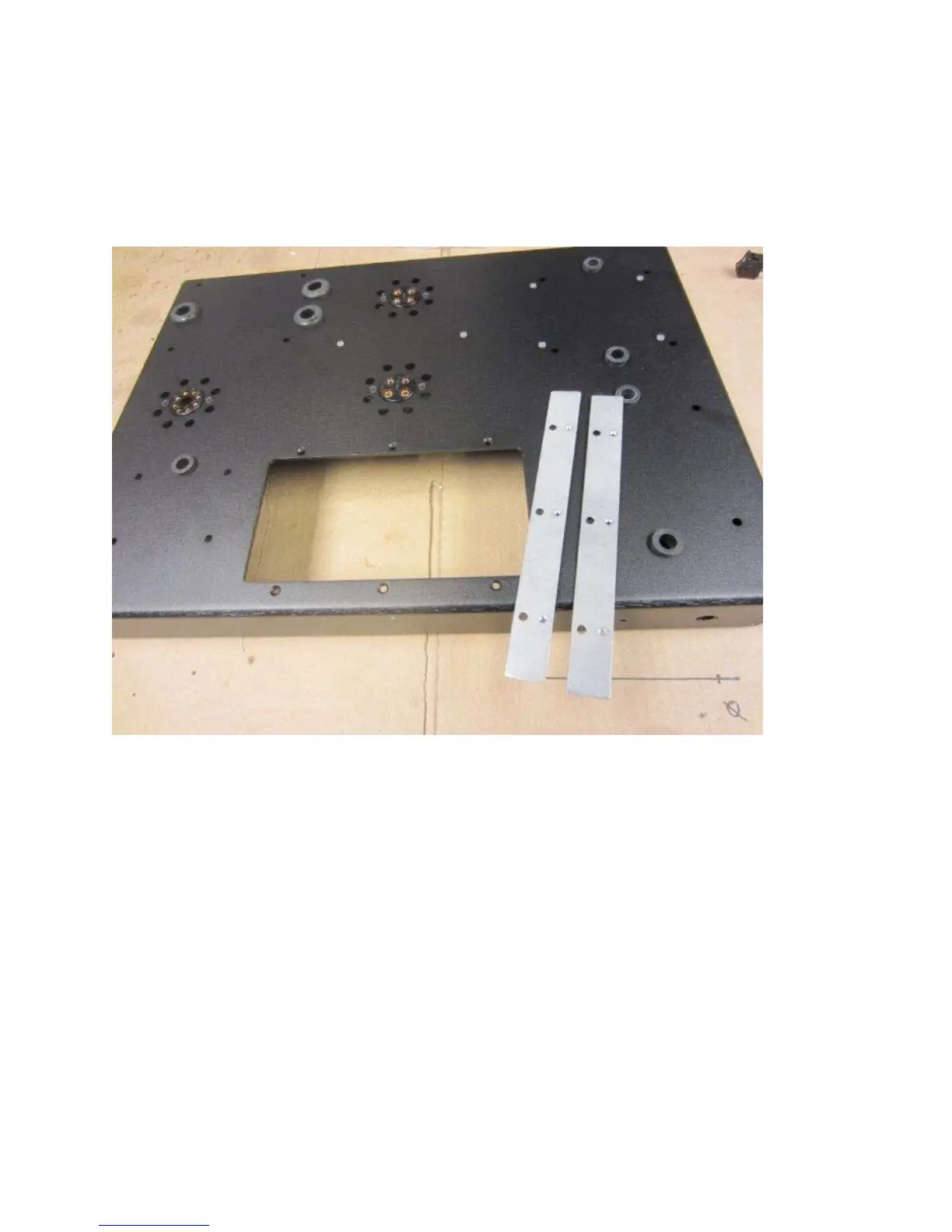

nuts to secure into position ! Position the TANG strip in the chassis as shown in the
next picture and then secure one of the 3 holes from the chassis with the tang strip –
see next photo(s)
