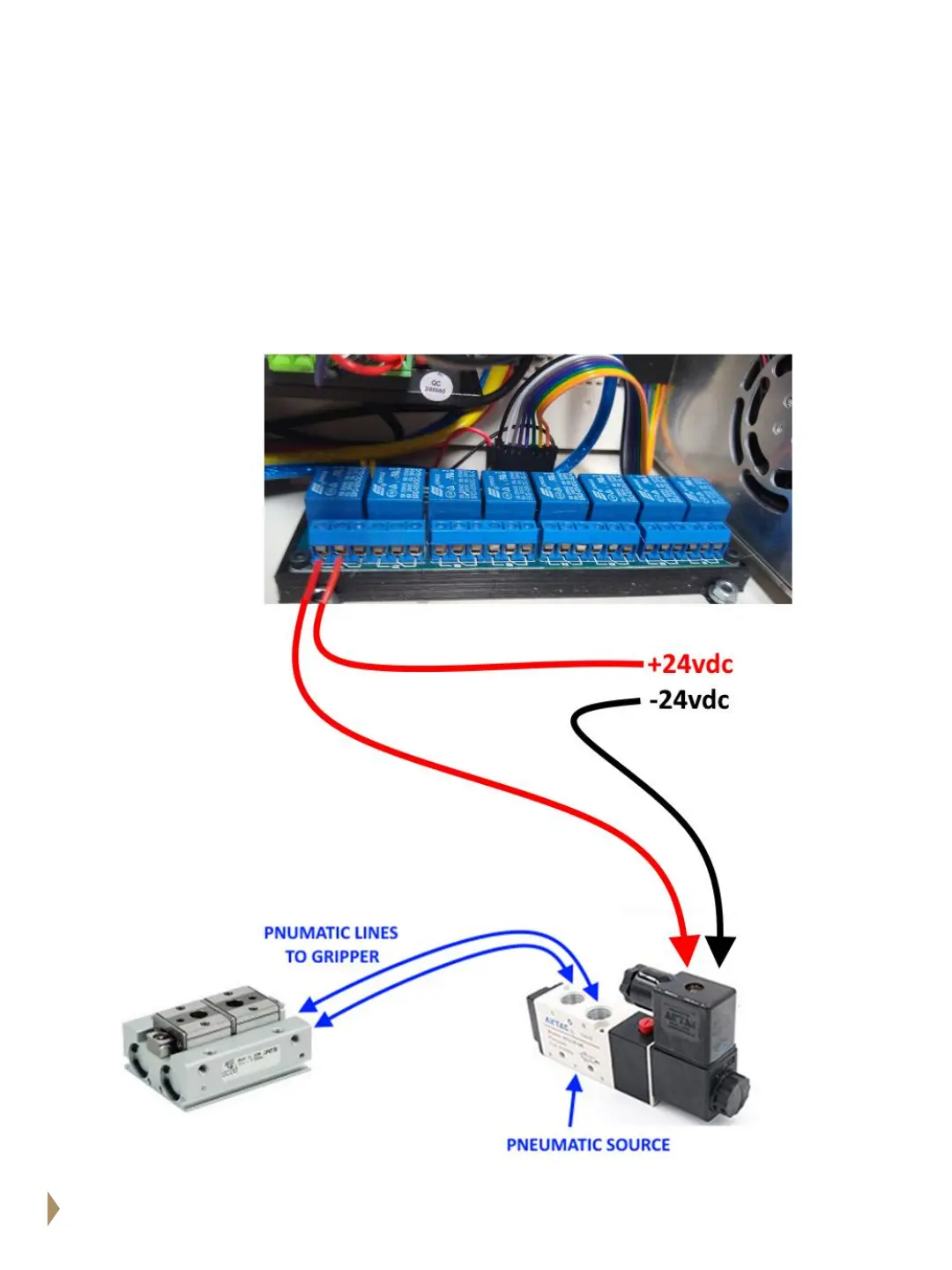

If using a pneumatic gripper you would connect a
24vdc solenoid valve to one of the relay outputs
(Arduino outputs 28 through 36) and then use the
“Set Output On” and “Set Output Off” commands to
program relays to control your gripper.
