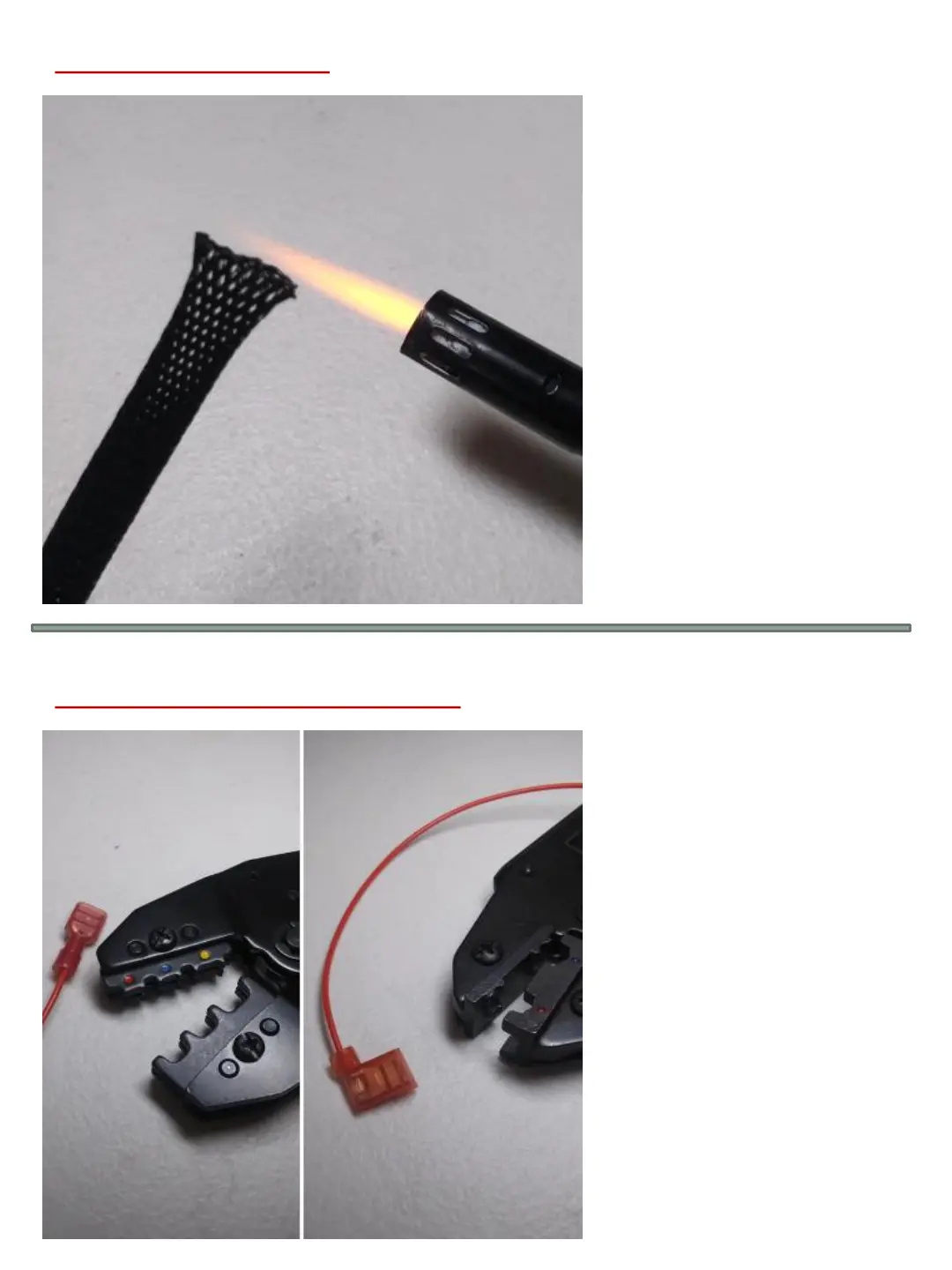

Several steps in this
manual will call for crimping
both straight and 90° quick
disconnects for 22awg
wire.
Be sure to use a quality
crimper for straight
disconnects (shown left)
Be sure to use a quality
crimper for 90° disconnects
(shown right)
Several Steps in this
manual will call for braided
sleeve to be placed over
electrical wires. Make sure
that as soon as you cut any
braided sleeving you use a
lighter or flame to carefully
melt the ends of the sleeve
as shown.
If you do not melt the ends
the sleeve will un-braid and
not hold the wires together.
Using Braided Sleeve
Using Crimp Quick Disconnects
