7

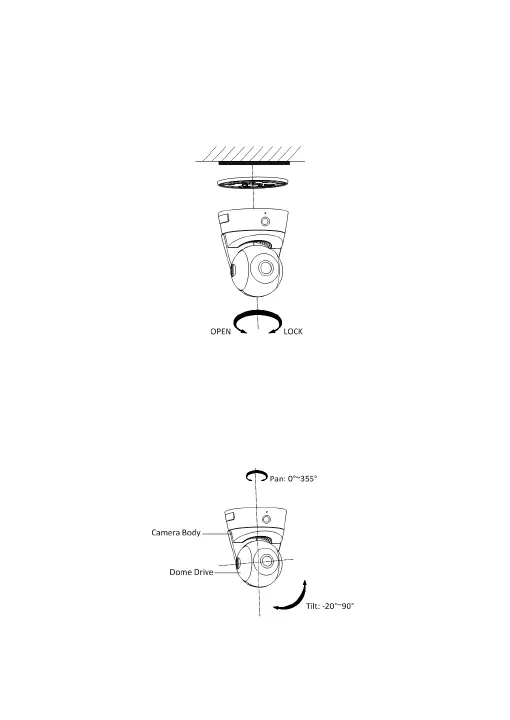

3. Align the mounting base of the camera to the adapter plate, and
rotate the camera clockwise until it is locked up by the three
bayonet joints on the adapter plate.
4. Adjust surveillance view angle.
1) Hold and rotate the main camera body to adjust the view angle
in the pan direction: [0°~355°].
2) Move the dome drive upwards or downwards to adjust the
view angle in the tilt direction: [-20°~90°].
