[Capture & Playback]
Case ②: Capturing Multiple Burst Signals 2/2
Setting capture time *Set time for 511 bursts of target signal Example: 40 × 511 = 20440 ms
> [Menu]
> [F7: Capture]
> [F2: Capture Time Length] = [20440] [F2: ms]
Setting single sweep (Single)
> []
*This completes signal capture.
The procedure from here is the same as
for case 1.
See pages 6 to 7 for details.

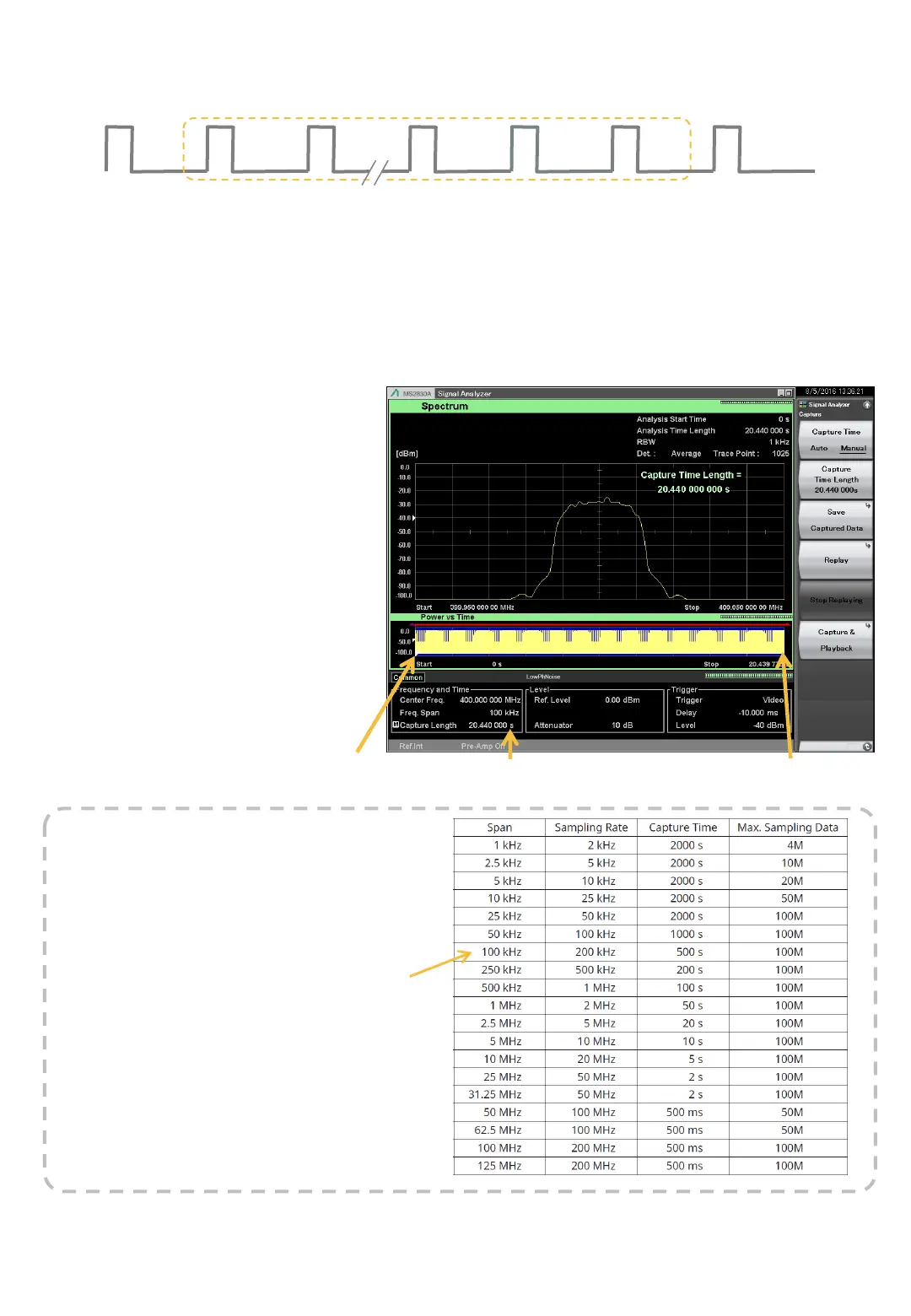

Capturing 511 Burst Signals
Maximum Signal Analyzer Capture
Function Capture Times
The maximum capture time differs with the
Span setting. Refer to the table on the right
for details.
For example, the maximum capture time is
500 s when the span is 100 kHz.
In addition, the upper limit of the frequency
span that can be set for the MS269xA,
MS2830A, and MS2840A differs with the
installed Analysis Bandwidth option.
Example of 40 × 511 = 20440 ms Capture Screen
Set the total time for capture over again.
Capture start time
Capture end time
Capture time
To Next Page
