4-2 3743A/AX and 3743E/EX mmWave Module and Bracket 3743A/AX and 3743E/EX mmWave Module
4-2 PN: 10410-00311 Rev. H VectorStar ME7838 Modules RM
Index Description
1 3743A/AX or 3743E/EX mmWave Module in Bracket as-shipped.
2
W (1 mm) Connector
• To tighten, use a torque end wrench and a plain end wrench.
• 6 mm Torque End Wrench set to 0.45 Nꞏm (4 lbfꞏin). Recommended is Anritsu 01-504.
• 6 mm / 7 mm Open End Wrench. Recommended is Anritsu 01-505.
3
Knurled Head Thumbscrews (6 total) M2 × 8 mm.
• Threaded hole in module is 8.6 mm deep.
• Tighten finger tight. Do not over-torque. Do not bottom out screws.
• If the module is installed in a user-provided bracket, use hand tightening, making sure that
between 5 mm and 6 mm of screw threads are engaged in the module body.
4 Module Mounting Bracket
5 Module Power/Signal Cable Restraint
6
SRC V Connector
• To tighten, use an 8 mm (5/16”) torque end wrench set to 0.9 Nꞏm(8lbfꞏin).
• Recommended is Anritsu 01-201.
7
RF V Connector
• To tighten, use an 8 mm (5/16”) torque end wrench set to 0.9 Nꞏm(8lbfꞏin).
• Recommended is Anritsu 01-201.
8
LO K Connector
• To tighten, use an 8 mm (5/16”) torque end wrench set to 0.9 Nꞏm(8lbfꞏin).
• Recommended is Anritsu 01-201.

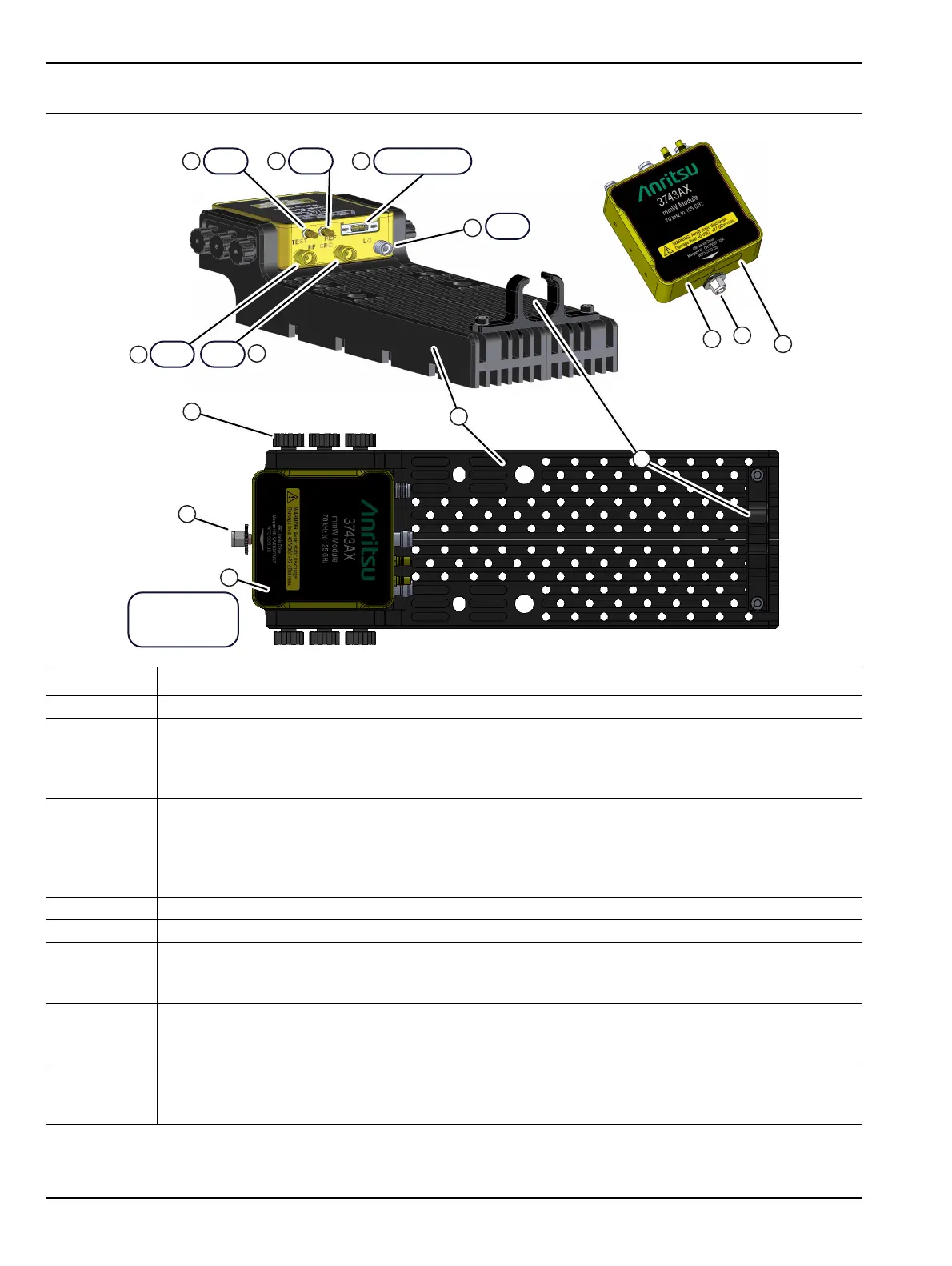

Figure 4-1. 3743A/AX/E/EX mmWave Module Description (1 of 2)
3743A/AX or
3743E/EX
Module
1
2
3
5
10
9
4
8
11
2
12
13
TEST
REF
7
SRC
LO
Power/Signal
6
RF
