14
115000769 M4x14 Screw
……4
115000769 M3x10 Screw
……1
115000769 M3x12 Screw
………1
115000762 M3 Nylon Nut
………1
115000762 M3
115000769 M4x14
115000769 M3x10
115000769 M3x12
115000769 M4x14
115000882
1.2mm Plastic Washer
115000882 3.8x2.3 O-ring
115000882
3mm Plastic Washer
…………………4
…………………4
……………………8
115000883 7x1.5 O-ring
…………………4
115000882
3.1x7x0.4 Washer
……………………4
115000882 M3 Nylon Nut
…………………4
115000871 6.8 Ball stud
………………………4
F
R
x2

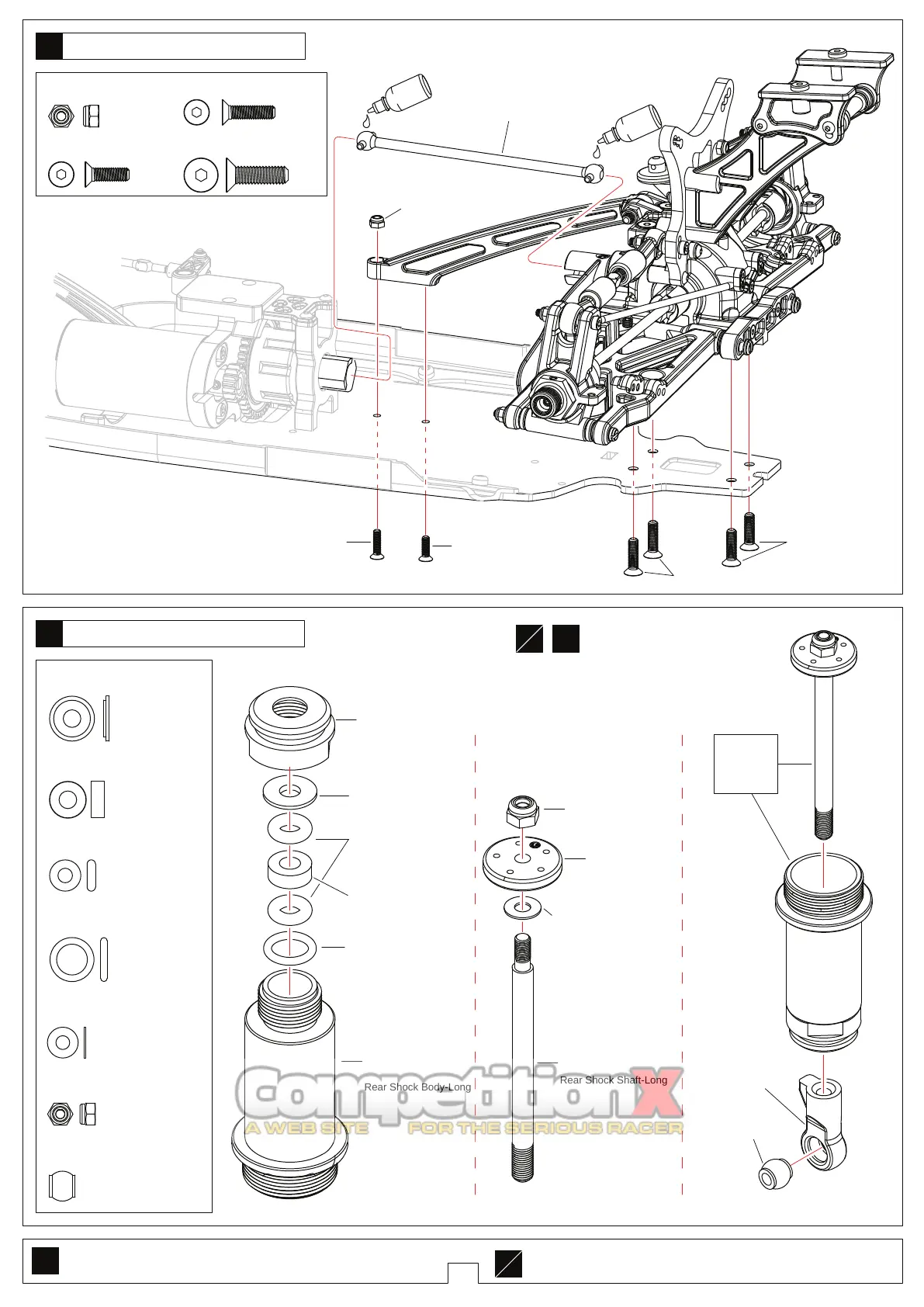

Shock Absorber / Dämpfer / Amortisseur
Rear Suspension / Aufhängung hinten
Suspension arrière
115000882
3.8x2.3 O-ring
115000882
3mm Plastic Washer
115000882
1.2mm Plastic Washer
115000883
7x1.5 O-ring
115000883
Shock Bottom cover
115000883
Front Shock Body-Short
Rear Shock Body-Long
115000882
Front Shock Shaft-Short
Rear Shock Shaft-Long
115000882 3.1x7x0.4
115000882
Shock Piston
115000882 M3
115000871
6.8 Ball stud
115000884
Ball End-Short
Front-Short
Rear-Long
115000856
113mm Drive Shaft
Oil
Oil
28
29
x2
Assemble as many times as specified / Anzahl der ben. Teile
Assemblez autant de fois que spécifié
F
R
Assemble both Front and Rear / Vorne und hinten ident. montier.
Assembler avant et arrière
