Installation Procedure
18 Autopulse-442R 50098:F 05/24/2001
$ODUP5HOD\
One Form-C dry contact alarm relay is provided in the
basic panel for controlling supplementary devices. It is
rated 2 amps at 30 VDC and 0.5 amps at 30 VAC
(resistive), and non-silenceable when an alarm occurs.
See Figure 2.4 for terminal location.
7URXEOH5HOD\
One Form-C dry contact trouble relay is provided in the
basic panel for controlling supplementary devices.
It is rated 2 amps at 30 VDC and 0.5 amps at 30 VAC
(resistive) and will silence when the trouble condition is
cleared.
Note: Any power connected to these relay contacts must
come from a power-limited supply. Power may be
obtained from TB1 Terminals 1-2, TB1 Terminals 3-4,
TB2 Terminals 1-2, or a UL-listed power-limited supply.
3RZHULQJ([WHUQDO'HYLFHV
CAUTION: Several different sources of power can be connected to this panel.
Disconnect all sources of power before servicing. The panel and associated
equipment may be damaged by removing and/or inserting cards, modules, or
interconnecting cables while this unit is energized.
7%WUREFRQWDFWVZPI
Alarm
Trouble
Alarm
NO NC C
Trouble
NO NC C

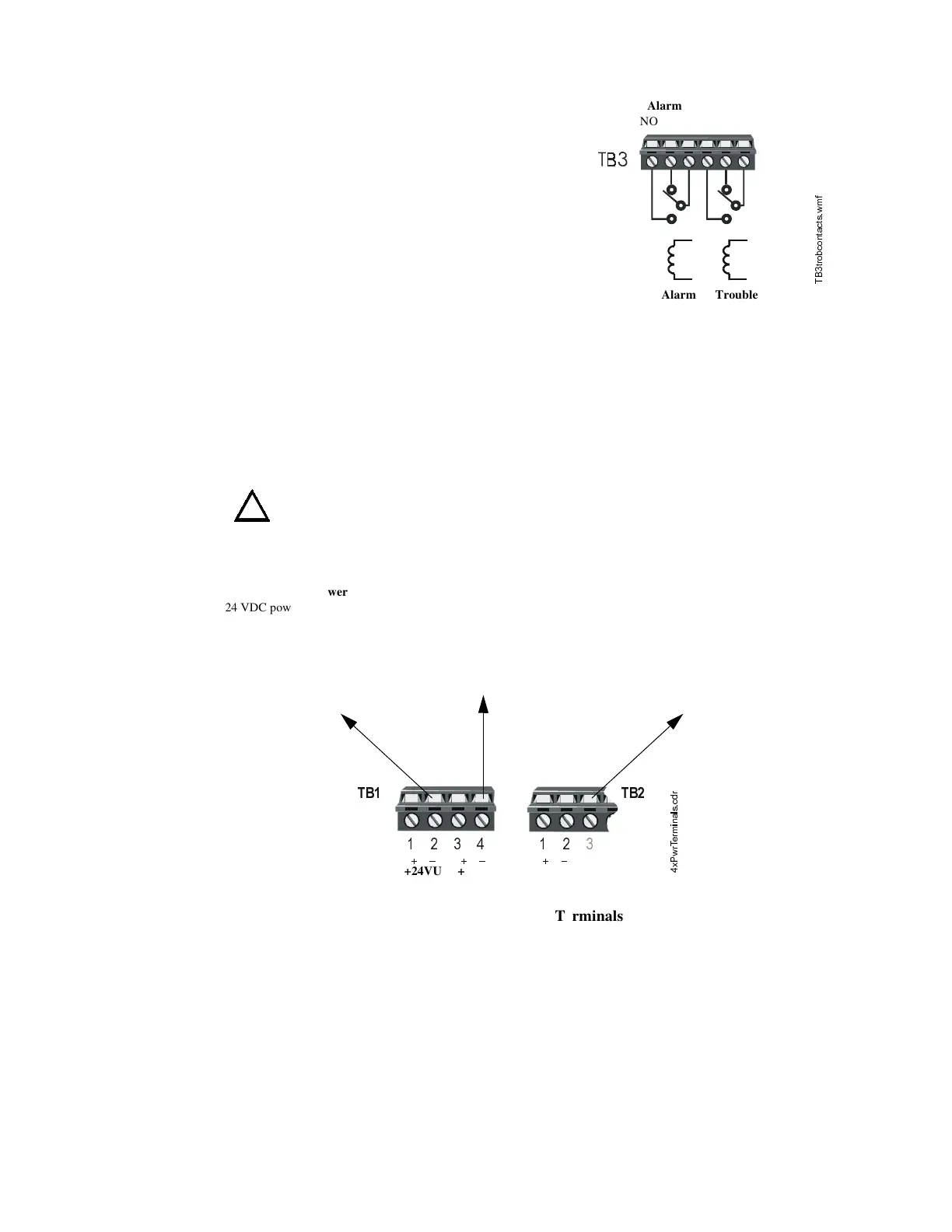

Figure 2.4 Schematic Representation
of Alarm/Trouble Coils & Contacts
7%
7%
Figure 2.5 Power Terminals
[3ZU7HUPLQDOVFGU
+24VU +24VR +24VNR
RMS-Regulated Power
24 VDC power for inductive-
type devices such as door
holders can be connected to
TB1 terminals 1 (+) and 2(-).
This output is not suitable for
powering devices requiring
filtered DC power.
Four-Wire Smoke Detector Power
24 VDC filtered, resettable power
for four-wire smoke detectors can be
obtained from TB1 Terminals 3(+) and 4(-).
The combined current draws from the
Resettable and Nonresettable outputs cannot
exceed 200 mA.
Nonresettable Power
24 VDC filtered, nonresettable
power can be drawn from TB2
Terminals 1 (+) and 2(-).
The combined current draws
from the Resettable and
Nonresettable outputs cannot
exceed 200 mA.
To Next Page
