Ansul AUTOPULSE 442R User Manual

Installation Procedure
Autopulse-442R 50098:F 05/24/2001 19
9ROWPHWHU$PPHWHU
To monitor battery voltage and battery charging current, a 4XMM Meter Module is required. To
install the power meter module:
1. Cut the wire labeled “AMP”.
2. Connect cable assembly P2 to pin connector J2 on the main board.
3. Connect cable assembly P3 to pin connector J3 on the main board.
4. Secure the 4XMM to the backbox with the two screws provided. On some models, it will be
necessary to install the meter bracket with the nuts and bolts provided.

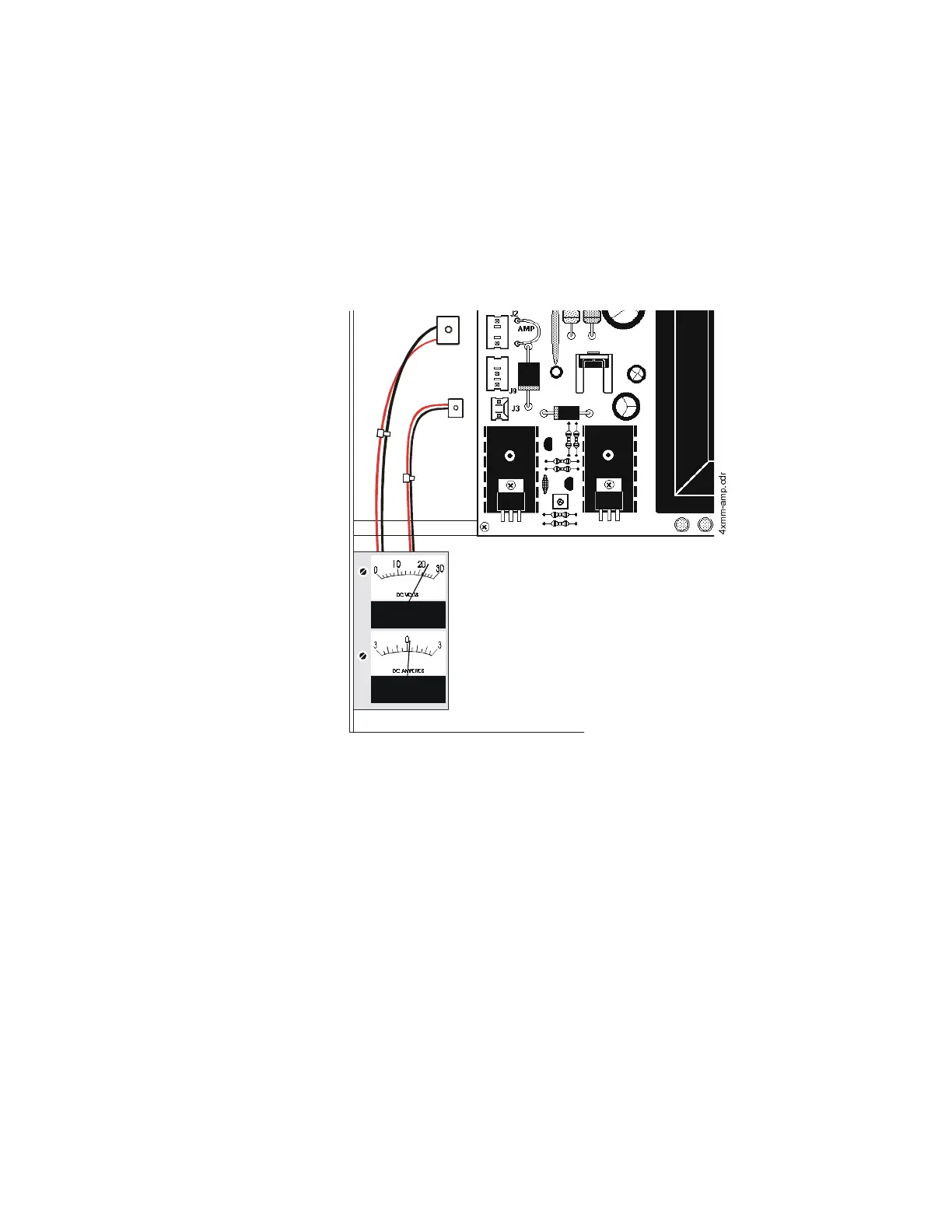

Figure 2.6 Connecting the Meters to the Main Board
[PPDPSFGU
