Installation Procedure
Autopulse-442R 50098:F 05/24/2001 21
7UDQVPLWWHU0RGXOH²;70

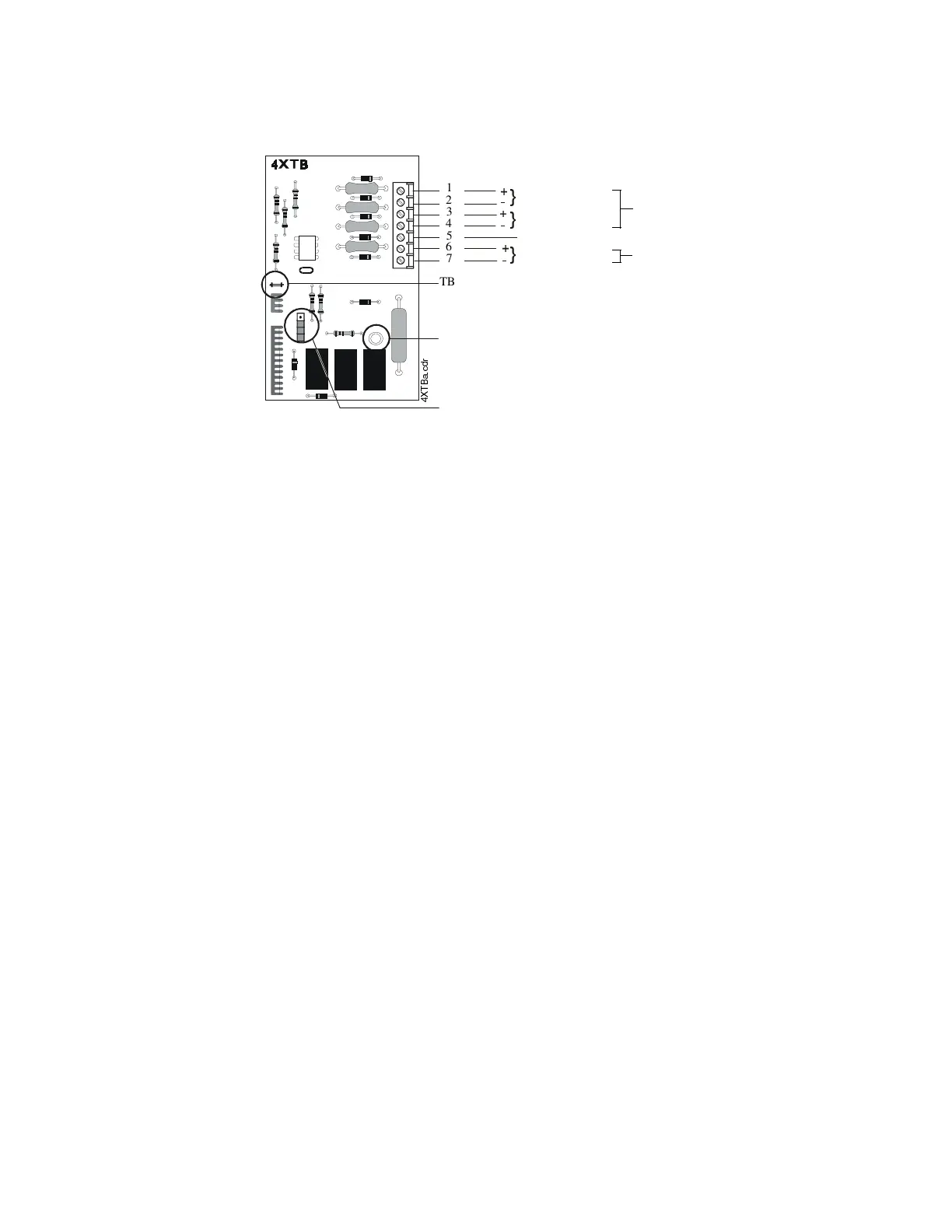

Polarities shown in activated positions. The wiring of this module must follow the requirements as
specified under “UL Power-limited Wiring Requirements” in Section 2.2.
Push the disconnect switch down to prevent unwanted activation of the Municipal Box and Remote
Station Outputs during testing of the control panel. The Disconnect LED will remain illuminated
while the Municipal Box is disconnected. The System Trouble LED will indicate disconnected
and/or Open Circuit conditions on the Municipal Box.
Cutting the TBL jumper will allow the alarm reverse polarity circuit to open on trouble, if no alarm
exists.
Note: Remote Alarm, Remote Trouble and Municipal Box wiring can leave the building.
Note: This module is not suitable for transmitting reverse polarity Supervisory Signals.
`
`
`
1
2
3
4
5
6
7
TBL Jumper
Disconnect LED
Disconnect Switch
Remote Alarm
Remote Trouble
No Connection
Municipal Box*
* Dummy load terminals
6 and 7 (4.7K, 1/4 W
resistor) if Municipal
Box is not connected.
Power-limited Circuit
Non-Power-limited Circui
;7%DFGU
To Next Page
