Ansul INERGEN User Manual

System Components
UL EX-4510 7-15-02 Page 1-4
REV. 1
Description
Selector valves are used to direct the flow of INERGEN into
a single hazard of a multiple hazard system.
When pneumatic actuation is required for the 1 in. and 2 in.
valves, a Stackable Actuator Assembly, Part No. 428566,
must be ordered separately.
When electric actuation is required for the 1 in. and 2 in.
valves, a Booster Actuator, Part No. 428949, must be
ordered separately.
Selector valves can be manually operated by mounting a
lever actuator either directly onto the valve or onto the top
of the electric actuator. See Lever Release Actuator
Component Sheet for correct actuator.
Selector Valves
Component Material Thread Size/Type Approvals
Equivalent Length
(Sch. 80 Pipe)
1 in. Selector Valve Bronze 1 in. NPT Female UL (EX-4510) 1/2 in. – 1.9 ft. (0.6 m)
(Used for 1/2 in., 3/4 in. 3/4 in. – 6.4 ft. (1.9 m)
and 1 in. pipe sizes) 1 in. – 10.4 ft. (3.2 m)
2 in. Selector Valve Bronze 2 in. NPT Female UL (EX-4510) 1 1/4 in. – 16.2 ft. (4.9 m)
(Used for 1 1/4 in., 1 1/2 in. 1 1/2 in. – 22.4 ft. (6.8 m)
and 2 in. pipe sizes) 2 in. – 67.4 ft. (20.5 m)
Shipping Assembly
Part No. Description
427185 1 in. selector valve – threaded
427150 2 in. selector valve – threaded
428566 Pressure operated
stackable actuator
ANSUL
®
®
ANSUL INCORPORATED, ONE STANTON STREET, MARINETTE, WI 54143-2542 715-735-7411 Form No. F-2001252-1 ©2002 Ansul Incorporated Litho in U.S.A.
ANSUL and INERGEN are trademarks of Ansul Incorporated or its affiliates.
ABC
Valve Size Body in. (mm) in. (mm) in. (mm)
1 in. Threaded – 5 1/2 (140) 2 9/16 (67) 7 (178)
1 in. NPT female
2 in. Threaded – 7 1/2 (191) 3 1/2 (89) 8 9/16 (218)
2 in. NPT female
006035

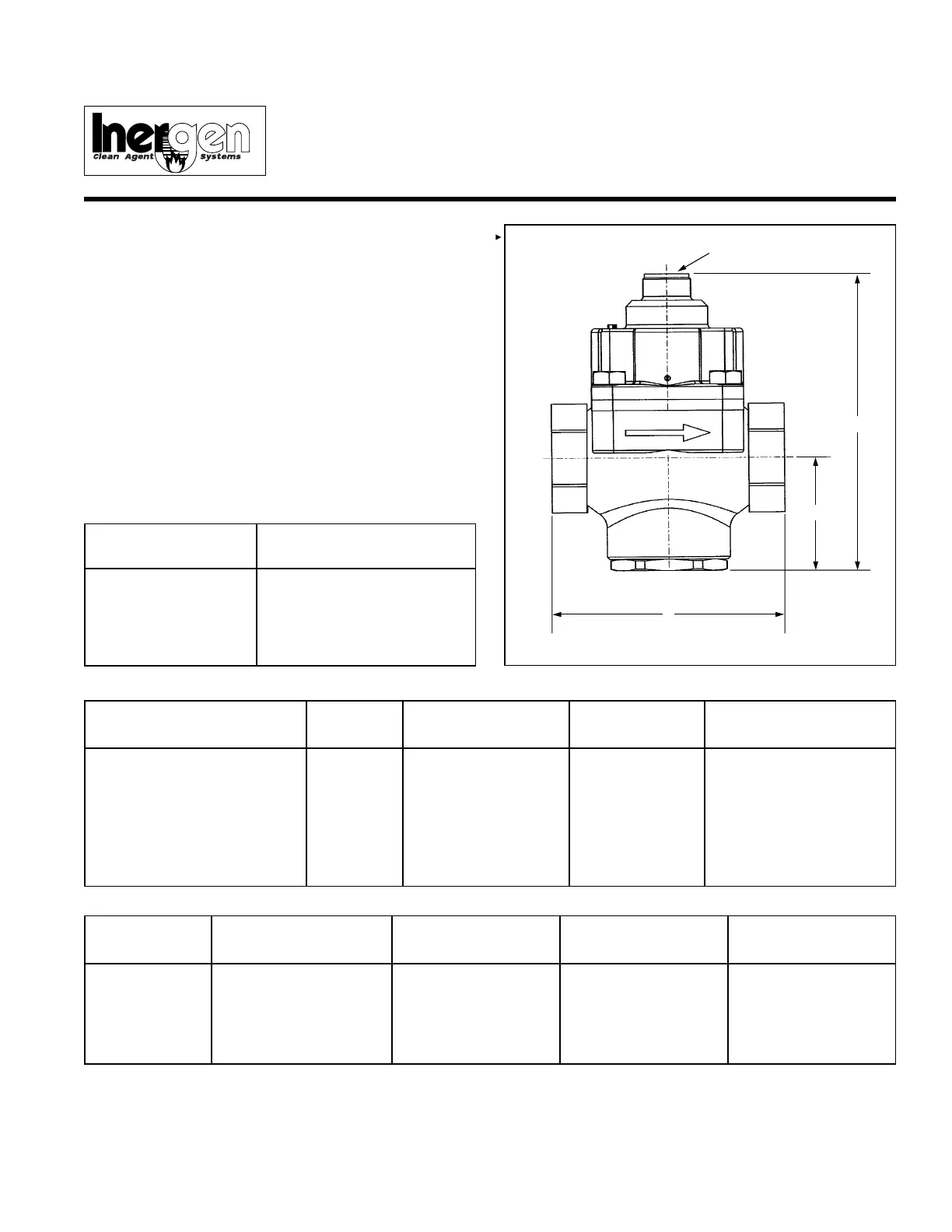

1 IN. AND 2 IN.THREADED VALVE
A
B
C
1 1/8 – 18 UNEF

Ansul INERGEN Specifications

General

Agent	INERGEN
Components	Nitrogen, Argon, Carbon Dioxide
Agent Composition	52% Nitrogen, 40% Argon, 8% Carbon Dioxide
Storage	High-pressure cylinders
Cylinder Material	Steel
Application	Total flooding fire suppression
Design Concentration	34.2% - 50% (depending on fuel type)
Storage Pressure	3000 psi (207 bar)
Environmental Impact	Zero ozone depletion potential, no global warming potential
Safety	Safe for use in occupied spaces when design concentration is maintained
Extinguishing Mechanism	Oxygen reduction to below combustion level
Approvals	UL, FM
Cylinder Sizes	Various sizes
Discharge Time	Typically less than 60 seconds
Typical Applications	Data centers, telecommunications, museums, archives
