Ansul INERGEN User Manual

System Components
UL EX-4510 12-1-01 Page 1-3
Description
The ANSUL AUTOMAN II-C Releasing Device consists of a
metal enclosure which contains a spring-loaded puncture
pin release mechanism, an actuation cartridge, electrical
circuitry, and an input/output terminal strip for making elec-
trical connections. The ANSUL AUTOMAN II-C releasing
device provides automatic pneumatic actuation of the
INERGEN System. When wired to an AUTOPULSE Control
System, it will provide supervised electric detection and
release. It also provides manual actuation using the strike
button on the release enclosure and with the optional
remote manual cable pull station. When an AUTOPULSE
Control System is used, manual actuation is accomplished
using an electric manual pull station.

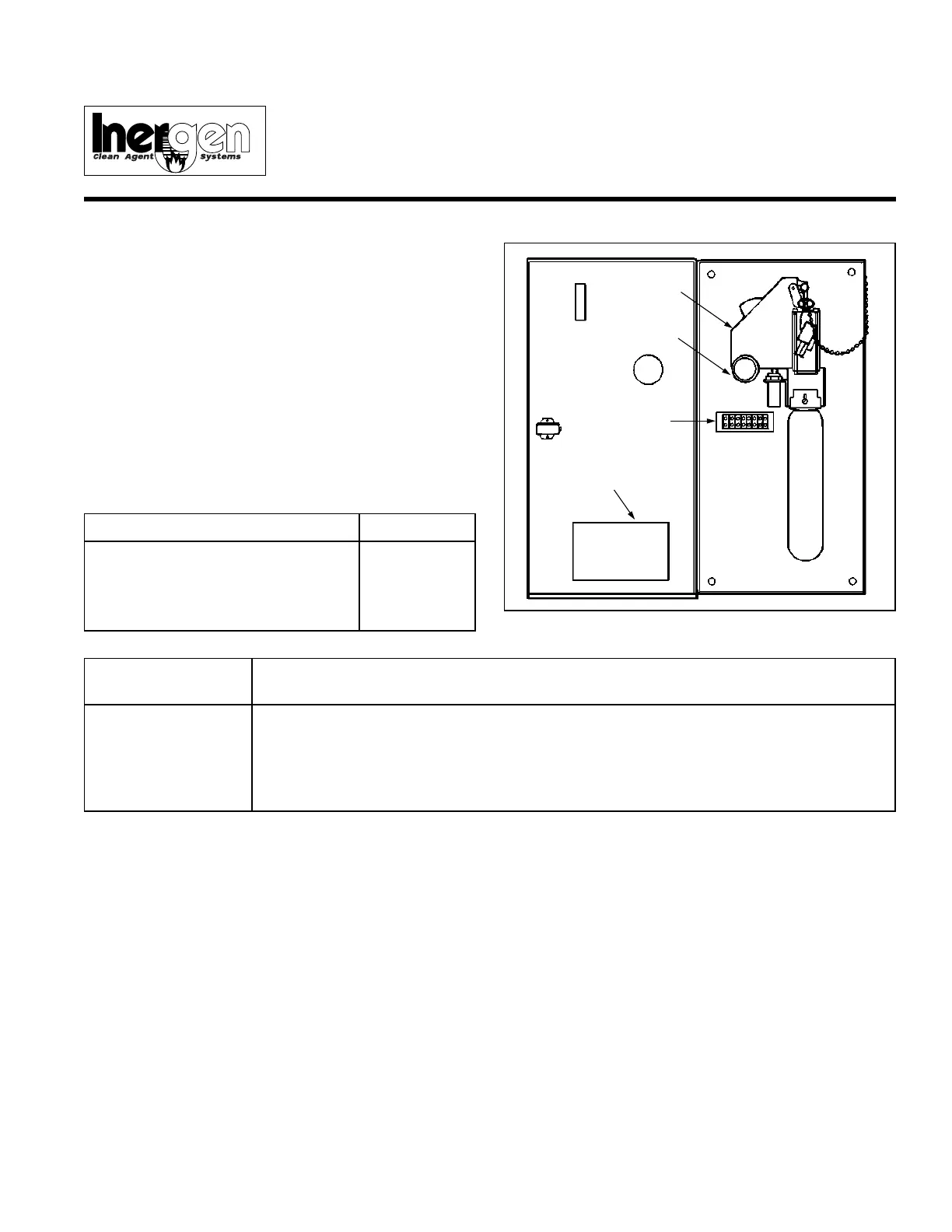

ANSUL AUTOMAN II-C Releasing Device
RELEASE
MECHANISM
STRIKE
BUTTON
TERMINAL
BOARD
NAMEPLATE
000442
Component Approvals
ANSUL AUTOMAN II-C Releasing UL Listed
Device (R5998)
ANSUL AUTOMAN II-C Releasing
Device (Explosion-Proof)
Shipping Assembly
Part No. Description
17728 ANSUL AUTOMAN II-C Releasing Device, 24 VDC
31492 ANSUL AUTOMAN II-C Releasing Device, Explosion-Proof, 24 VDC
32525 ANSUL AUTOMAN II-C Releasing Device, Explosion-Proof, 120 VAC
32526 ANSUL AUTOMAN II-C Releasing Device, Explosion-Proof, 240 VAC
5373 LT-30-R Nitrogen Cartridge
ANSUL, INERGEN, ANSUL AUTOMAN, and AUTOPULSE are trademarks of Ansul Incorporated or its affiliates.
ANSUL INCORPORATED, ONE STANTON STREET, MARINETTE, WI 54143-2542 715-735-7411 Form No. F-2001251 ©2001 Ansul Incorporated Litho in U.S.A.
ANSUL
®
®

Ansul INERGEN Specifications

General

Agent	INERGEN
Components	Nitrogen, Argon, Carbon Dioxide
Agent Composition	52% Nitrogen, 40% Argon, 8% Carbon Dioxide
Storage	High-pressure cylinders
Cylinder Material	Steel
Application	Total flooding fire suppression
Design Concentration	34.2% - 50% (depending on fuel type)
Storage Pressure	3000 psi (207 bar)
Environmental Impact	Zero ozone depletion potential, no global warming potential
Safety	Safe for use in occupied spaces when design concentration is maintained
Extinguishing Mechanism	Oxygen reduction to below combustion level
Approvals	UL, FM
Cylinder Sizes	Various sizes
Discharge Time	Typically less than 60 seconds
Typical Applications	Data centers, telecommunications, museums, archives
