One Stanton Street
|
Marinette, WI 54143-2542, USA
|
+1-715-735-7411
|
www.ansul.com
© 2018 Johnson Controls. All rights reserved. All specifications and other information shown were
current as of document revision date and are subject to change without notice.
|
Form No. F-86182-02
FOAM SYSTEMS

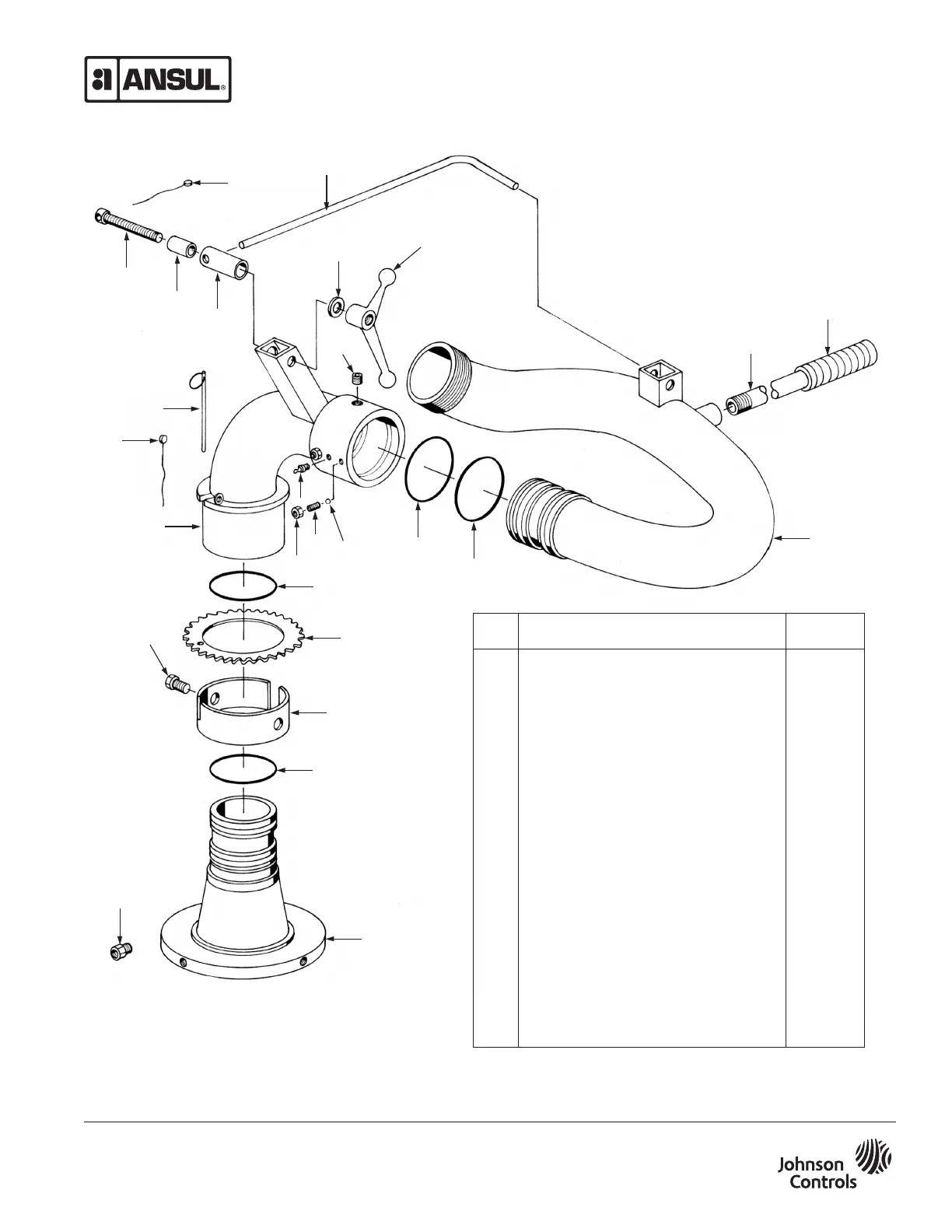

WOM-3 MONITOR BENT TUBE ASSEMBLY PARTS LIST
PAGE 1
* This parts list covers the bent tube assembly portion of the WOM-3 Monitor.
See Form No. F-86181 for WOM-3 Oscillating Mechanism Parts.
24
18
23
22
10
21
20
19
9
24
8
5
2
1
3
4
6
7
12
13
14
11
7
3
15
17
16
ITEM
NO. DESCRIPTION
PART
NO.
– Water Oscillating Monitor Shipping Assembly* 400000
1 Flange Base 400195
2 Tube Adaptor 400023
3 O-Ring 400054
4 Drive Ring 400632
5 Drive Ring Bolt 400013
6 Sprocket 400188
7 O-Ring 400055
8 90° Elbow Assembly 400196
9 Ring Grip Pin 400019
10 Set Screw 400012
11 Grease Fitting 400060
12 Jam Nut 400644
13 Ball Plug 400076
14 Bearing Balls 400049
15 Discharge Tube Assembly 400194
16 Handle 400190
17 Handle Grip 400058
18 Rod Lock 400138
19 Lock Bolt 400085
20 Bushing, Lock Bolt 400154
21 Lock Tube 400142
22 Washer 17486
23 Speed Ball Handle 400579
24 Lead Wire Seal 197
ANSUL, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited.
008306
