5

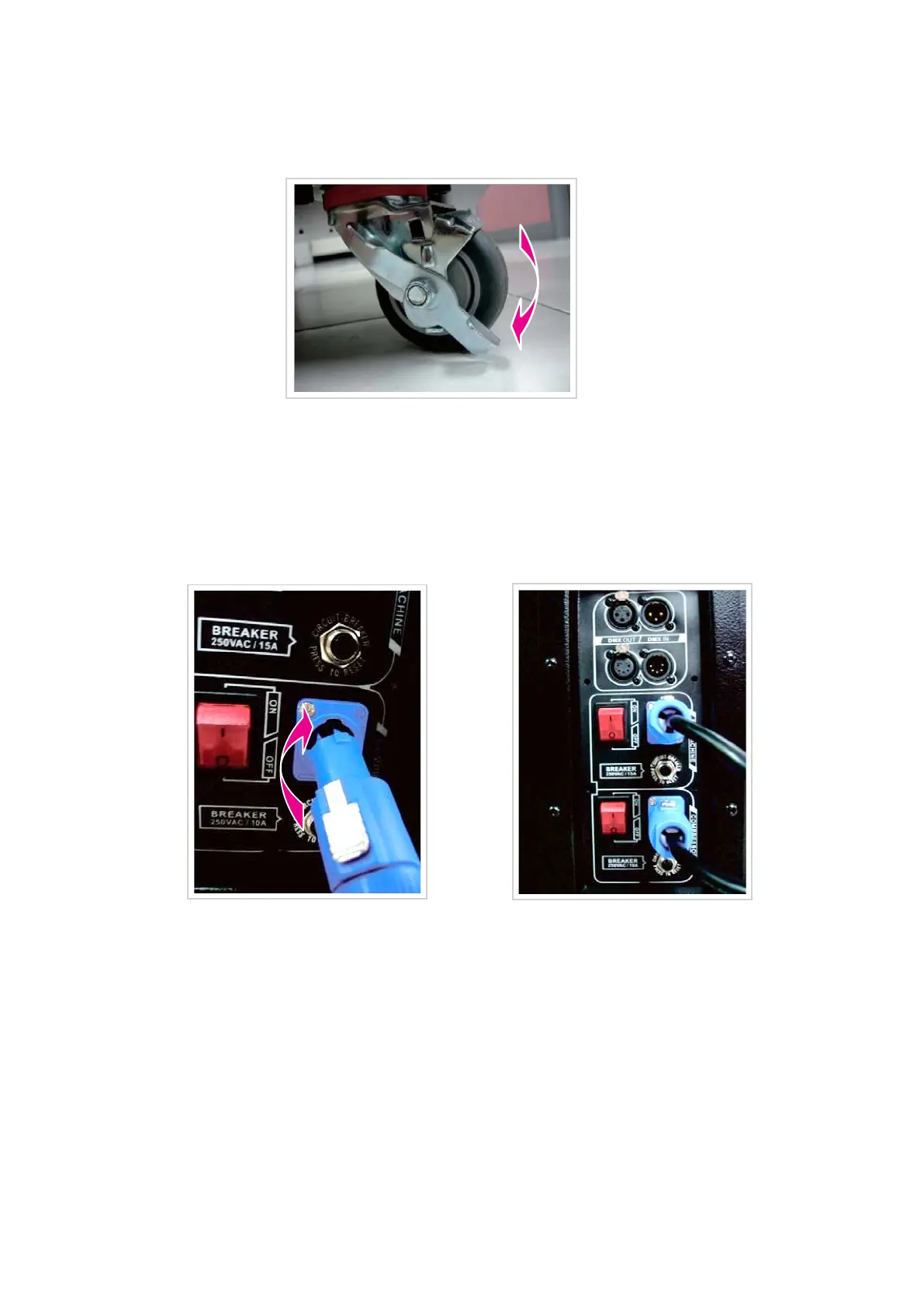

is not allowed to place on a slope due to its big size. (refer to figure 1)
 Please aim the key on the PowerCon terminal of the power cord to the slot of the
connector on the machine, plug it in and turn it about 10° clockwise until the power
cord is completely fixed. The upper power cord is for the fog generator and the bottom
one is for the compressor. (refer to figure 2 and 3)
 Before connecting the machine to power supply, make sure to check the needed
voltage and watt indicated on the metal plate of the machine.
 Connect the machine with the black fog conducting hose; it is a three-meter pipe. The
length of the pipe can be adjusted to fit the actual need. (refer to figure 4)
 Fill Antari FLL Low Fog Effects Fluid to the tank, tighten the tank cap. (refer to figure
5)
Figure 1
Figure 2
F
igure 3
